Wholesale lifepo4 li ion battery cell MERITSUN Brand
Model:

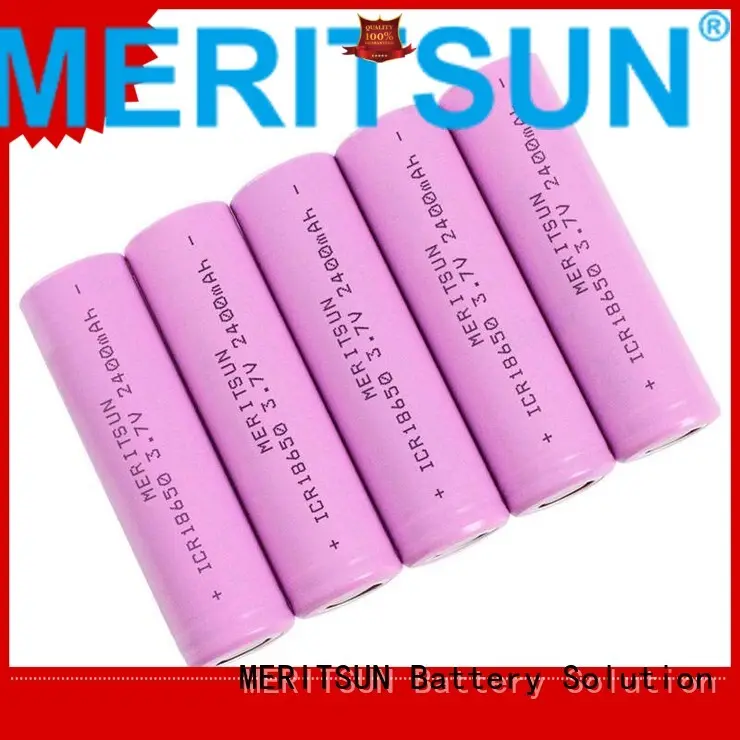

ICR18650 3.7V 2400mAh
Rated Voltage (V):
3.7
Rated Capacity (Ah):
2400mAh
Supply Ability:
500000 Pieces per Month
MOQ:
10
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Approx Dimension (mm):
18650
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Company Advantages
1. Established in 1999, we have 18 years experience in energy power industry. Presented products are enormously appreciated by MERITSUN customers for characteristics such as lithium ion battery cells and 3.7 volt rechargeable lithium ion battery.
2. Our products are certified to ISO, CE, ROHS, TLC, TUV, IEC, and so on. MERITSUN – a famous brand of li ion battery cell,18650 rechargeable lithium ion battery, proudly designs and produces 18650 battery cell,lithium battery suppliers.
3. By reforming the technology of manufacturing high drain battery, it is more of 18650 lithium rechargeable battery. We mainly focus on alternative green energy from Lead Acid battery
4. Our 18650 high drain battery is alluring pieces that can solve your problem of less space. We boasts our excellent R&D team and strong innovation capability
5. There are many successful cases with our products. To make high-quality icr 18650 battery,18650 lithium cells needs the aspiration of our staff.
1. Established in 1999, we have 18 years experience in energy power industry. Presented products are enormously appreciated by MERITSUN customers for characteristics such as lithium ion battery cells and 3.7 volt rechargeable lithium ion battery.
2. Our products are certified to ISO, CE, ROHS, TLC, TUV, IEC, and so on. MERITSUN – a famous brand of li ion battery cell,18650 rechargeable lithium ion battery, proudly designs and produces 18650 battery cell,lithium battery suppliers.
3. By reforming the technology of manufacturing high drain battery, it is more of 18650 lithium rechargeable battery. We mainly focus on alternative green energy from Lead Acid battery
4. Our 18650 high drain battery is alluring pieces that can solve your problem of less space. We boasts our excellent R&D team and strong innovation capability
5. There are many successful cases with our products. To make high-quality icr 18650 battery,18650 lithium cells needs the aspiration of our staff.
Product Description
/ For more details, please contact us！
| NO. | Items | Parameter | Remarks |
| 1 | Rated Capacity | 2400mAh | Discharge:0.2C Cut-off voltage:3.0V |
| Minimum Capacity | 2350mAh | ||
| 2 | Energy | 8.88Wh | |
| 3 | Nominal Voltage | 3.7V | |
| 4 | Open Voltage | ≥3.85V | |
| 5 | Load Voltage | ≥ 3.6V | 10Ω |
| 6 | Cycle Life | 500~1000 times | |
| 7 | Internal Impedance | ≤50mΩ | AC 1KHz after 50% charge |
| 8 | Charge voltage | 4.2V | |
| 9 | Standard charge current | 480mA | |
| 10 | Max charge current | 2400mA | |
| 11 | Standard discharge current | 480mA | |
| 12 | Max Discharge current | 3600mA | |
| 13 | Discharge cut-off voltage | 3.0V | |
| 14 | Operating Temperature | 0~+45℃ | Charge |
| -20~+60℃ | Discharge | ||
| 15 | Storage temperature for a long time | -20~25℃ | |
| 16 | Weight | 45±1g | |
| 17 | Dimensions-Diameter | 18.3±0.2mm | |
| Dimensions-Height | 65.3±0.2mm |
The Lithium Battery Cell Characteristic Curve , Please Refer To:
The Battery Advantages and Cells Consistency Countermeasures for
18650 Battery, Lithium Battery, Lipo Battery, Li-ion battery, LiFePO4 Battery,
Rechargeable Lithium ion Battery, Lithium Polymer Battery,
Lithium iron Phosphate Battery
The Battery Safety Assurance and Low Self Discharge for 18650 Battery, Lithium Battery,
Lipo Battery, Li-ion battery, LiFePO4 Battery, Rechargeable Lithium ion Battery,
Lithium Polymer Battery, Lithium iron Phosphate Battery
More Lithium Battery Cells Model Reference:
