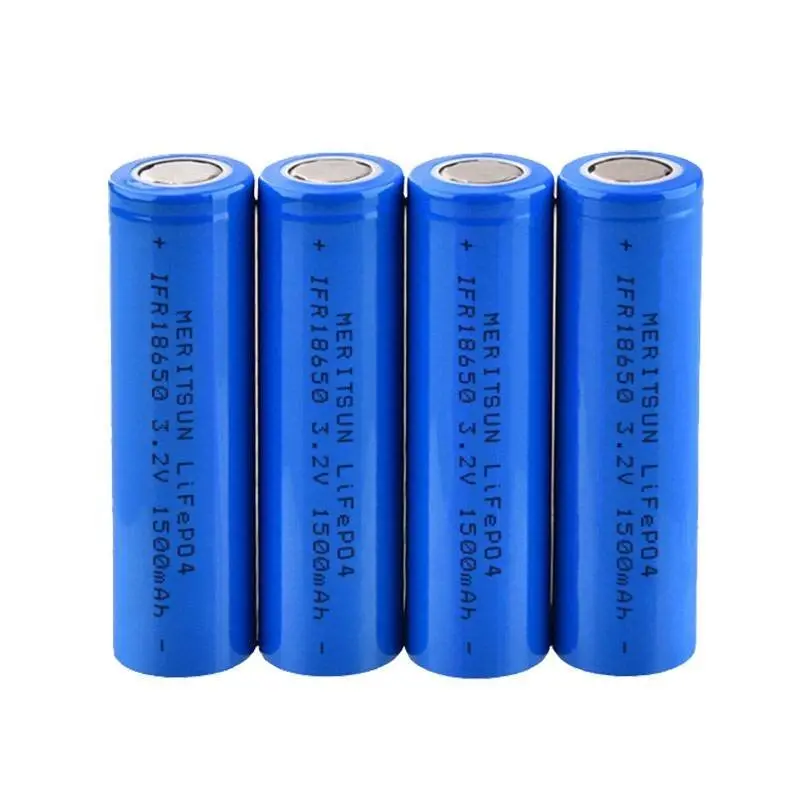

IFR 18650 3.2V 1500mAh Lithium Li-ion Li ion LiFePO4 Rechargeable Lithium ion Battery Cell
5.0
Model:
IFR18650 3.2V 1500mAh
Rated Voltage (V):
3.2
Rated Capacity (Ah):
1500mAh
Supply Ability:
500000 Pieces per Month
MOQ:
10
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Approx Dimension (mm):
18650
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
For More Details, Please Contact US !
| NO. | Items | Parameter | Remarks |
| 1 | Rated Capacity | 1500mAh | Discharge:0.2C Cut-off voltage:3.0V |
| Minimum Capacity | 1450mAh | ||
| 2 | Energy | 4.8Wh | |
| 3 | Nominal Voltage | 3.2V | |
| 4 | Open Voltage | ≥3.2V | |
| 5 | Load Voltage | ≥ 3.2V | 10Ω |
| 6 | Cycle Life | ≥2000 times | |
| 7 | Internal Impedance | ≤50mΩ | AC 1KHz after 50% charge |
| 8 | Charge voltage | 3.65V | |
| 9 | Standard charge current | 300mA | |
| 10 | Max charge current | 750mA | |
| 11 | Standard discharge current | 1500mA | |
| 12 | Pulse Discharge current | 10A (5S) | |
| 13 | Discharge cut-off voltage | 2.5V | |
| 14 | Operating Temperature | 0~+55℃ | Charge |
| -20~+60℃ | Discharge | ||
| 15 | Storage temperature for a long time | -20~25℃ | |
| 16 | Weight | 42±1g | |
| 17 | Dimensions-Diameter | 18.3±0.2mm | |
| Dimensions-Height | 65.3±0.2mm |
