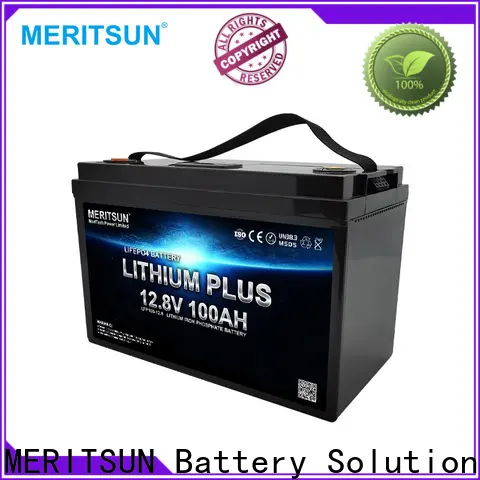

MERITSUN best lithium ion polymer battery customized for building
1. lithium ion polymer battery is of novel design and has characteristics of lithium battery pack . It can be widely applied in diverse areas ranging from small appliances and IT devices
2. The product can live up to its stated capacity and won't leak away its charge when people are not using them. Made of reliable chemical substances, the product is of superior safety
3. The product has a long service life. It is not likely to be affected by excessive operating temperatures, overload, and deep discharge. Its long cycle life with over 2000 cycles helps owners reduce replacement cost
4. The product has the advantage of low internal impedance. The resistivity of the active materials is relatively low and the quality of the contacts between the individual electrode particles is high. It has passed the certification of TLC, TUV, RoHS, and so on
5. The product features high efficiency of heat removal. The cell casing of this product is a good conductor and has a maximum surface area to maximize the heat transfer. The product comes with OEM and ODM availability
Electrical Characteristics | Nominal Voltage | 12.8V (12V) |
Nominal Capacity | 100Ah | |
Energy | 1280Wh | |
Internal Resistance | ≤90mΩ | |
Cycle Life | >4000 cycles | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Voltage | 14.6±0.2V |
Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) | |
Charger Current | 40A | |
Max. Charge Current | 70A | |
Charge Cut-off Voltage | 15.6V±0.2V | |
Standard Discharge | Continuous Current | 70A |
Max. Pulse Current | 100A(<10s) | |
Discharge Cut-off Voltage | 10V | |
Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
Water Dust Resistance | IP55 | |
Mechanical | Cell & Method | 3.2V25Ah 4S4P |
Plastic Case | ABS | |
Dimensions (in./mm.) | 330*173*220mm | |
Weight (lbs./kg.) | 13.5kg | |
Terminal | / | |
Protocol (optional) | / | |
LCD (optional) | Yes |
MeriTech is focusing on new energy, Global market changes of battery, Through market research to constant understand customers needs in order to build a perfect service network,Own many experienced engineers and technicians, to provide comprehensive, in-depth, quickly and attentive service for you. We could response your request immediately.
MeriTech Power Specialist will estimate your power needs, identify potential problem areas and recommend a cost-effective solution. What you'll get:
1. The global optimum acquisition price for any required hardware
2. Installation considerations
3. Ongoing support options
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. MeriTech Power Co.,Ltd. is a professional lithium ion polymer battery manufacturer. Abundant experience and strong manufacturing ability have enabled our absolute leading position. We operate in many countries across all five continents. We have accomplished a tremendous amount of transactions over the years. And the customers return to us time after time.
2. With an expert manufacturing and R&D base, MeriTech Power Co.,Ltd. is a pioneer in the growth of lithium iron phosphate battery .
3. Based on the outstanding end-to-end service support, we have been repleted with a large customer base. The customers from around the world have been cooperating with us for years since the first order. We are promoting environmental management to help protect the global environment. During our operation, we will thoroughly check and make sure all activities in compliance with product environmental regulations and similar items.
