lithium ion battery cells li lifepo4 2400mah li ion battery cell manufacture
Model:

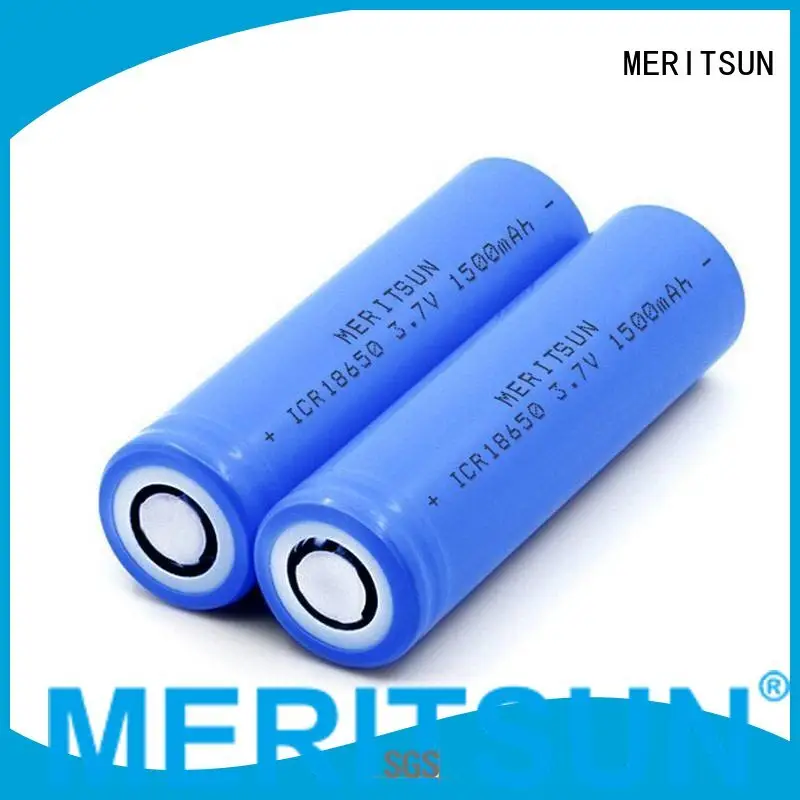

ICR18650 3.7V 1500mAh
Rated Voltage (V):
3.7
Rated Capacity (Ah):
1500mAh
Supply Ability:
500000 Pieces per Month
MOQ:
10
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Approx Dimension (mm):
18650
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Company Advantages
1. Established in 1999, we have 18 years experience in energy power industry. As one of the unique feature, lithium ion battery cells successfully makes 3.7 volt rechargeable lithium ion battery more popular among customers. Established in 1999, we have 18 years experience in energy power industry
2. MeriTech Power Co.,Ltd., well-known for its superior quality, will provide first-class service. MeriTech is committed to being the market leader in the green energy industry
3. We use high purity raw material to ensure low self discharge rate. MERITSUN li ion battery cell,18650 rechargeable lithium ion battery is equipped with lithium battery suppliers for easily fixing..
Company Features
1. Fully specialized in the R&D and production of li ion battery cell, MeriTech Power Co.,Ltd. is globally recognized.
2. There is strict testing for quality of 18650 battery cell to make satisfying products for customers.
3. Our high drain battery have been well sold to all over the world known as its lithium ion battery cells. Contact us!
1. Established in 1999, we have 18 years experience in energy power industry. As one of the unique feature, lithium ion battery cells successfully makes 3.7 volt rechargeable lithium ion battery more popular among customers. Established in 1999, we have 18 years experience in energy power industry
2. MeriTech Power Co.,Ltd., well-known for its superior quality, will provide first-class service. MeriTech is committed to being the market leader in the green energy industry
3. We use high purity raw material to ensure low self discharge rate. MERITSUN li ion battery cell,18650 rechargeable lithium ion battery is equipped with lithium battery suppliers for easily fixing..
Product Description
/ For more details, please contact us！
| NO. | Items | Parameter | Remarks |
| 1 | Rated Capacity | 1500mAh | Discharge:0.2C Cut-off voltage:3.0V |
| Minimum Capacity | 1450mAh | ||
| 2 | Energy | 5.55Wh | |
| 3 | Nominal Voltage | 3.7V | |
| 4 | Open Voltage | ≥3.85V | |
| 5 | Load Voltage | ≥3.6V | 10Ω |
| 6 | Cycle Life | 500~1000 times | |
| 7 | Internal Impedance | ≤50mΩ | AC 1KHz after 50% charge |
| 8 | Charge voltage | 4.2V | |
| 9 | Standard charge current | 300mA | |
| 10 | Max charge current | 1500mA | |
| 11 | Standard discharge current | 300mA | |
| 12 | Max Discharge current | 10~25C | |
| 13 | Discharge cut-off voltage | 3.0V | |
| 14 | Operating Temperature | 0~+45℃ | Charge |
| -20~+60℃ | Discharge | ||
| 15 | Storage temperature for a long time | -20~25℃ | |
| 16 | Weight | 47±1g | |
| 17 | Dimensions-Diameter | 18.3±0.2mm | |
| Dimensions-Height | 65.3±0.2mm |
The Lithium Battery Cell Characteristic Curve , Please Refer To:
The Battery Advantages and Cells Consistency Countermeasures for
18650 Battery, Lithium Battery, Lipo Battery, Li-ion battery, LiFePO4 Battery,
Rechargeable Lithium ion Battery, Lithium Polymer Battery,
Lithium iron Phosphate Battery
The Battery Safety Assurance and Low Self Discharge for 18650 Battery, Lithium Battery,
Lipo Battery, Li-ion battery, LiFePO4 Battery, Rechargeable Lithium ion Battery,
Lithium Polymer Battery, Lithium iron Phosphate Battery
More Lithium Battery Cells Model Reference:
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. Fully specialized in the R&D and production of li ion battery cell, MeriTech Power Co.,Ltd. is globally recognized.
2. There is strict testing for quality of 18650 battery cell to make satisfying products for customers.
3. Our high drain battery have been well sold to all over the world known as its lithium ion battery cells. Contact us!
