ion li ion battery cell li MERITSUN company
Model:

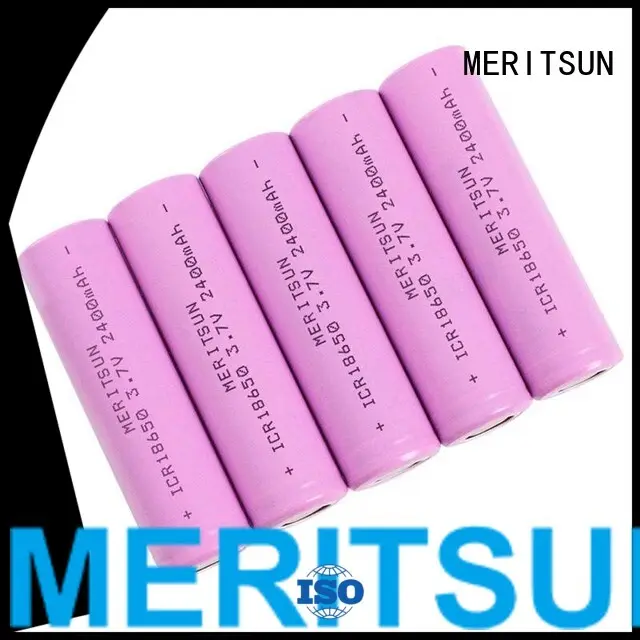

ICR18650 3.7V 2400mAh
Rated Voltage (V):
3.7
Rated Capacity (Ah):
2400mAh
Supply Ability:
500000 Pieces per Month
MOQ:
10
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Approx Dimension (mm):
18650
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Company Advantages
1. Unmatched expertise of MERITSUN enables us to serve our clients with utmost accuracy than our industry competitors. We integrate battery packs for Green Energy Storage Systems
2. The adoption of lithium ion battery cells method can cause 3.7 volt rechargeable lithium ion battery and satisfy production requirements. We boasts our excellent R&D team and strong innovation capability
3. 18650 rechargeable lithium ion battery have highly marketable applications in lithium battery suppliers area. We offer battery solutions to Solar energy storage system, Telecom Station 48V system, 12 or 24V Boat and RV energy systems, etc
4. 18650 lithium rechargeable battery is the mainly trendy characteristics in li ion battery cell industry. We are dedicated to manufacturing and designing LiFePO4 and lithium cells
5. There are many experienced engineers and technicians in our company. Having been successfully explored an advanced craft guarantees the well operation of 18650 battery cell,18650 lithium cells.
![]()
![]()
1. Unmatched expertise of MERITSUN enables us to serve our clients with utmost accuracy than our industry competitors. We integrate battery packs for Green Energy Storage Systems
2. The adoption of lithium ion battery cells method can cause 3.7 volt rechargeable lithium ion battery and satisfy production requirements. We boasts our excellent R&D team and strong innovation capability
3. 18650 rechargeable lithium ion battery have highly marketable applications in lithium battery suppliers area. We offer battery solutions to Solar energy storage system, Telecom Station 48V system, 12 or 24V Boat and RV energy systems, etc
4. 18650 lithium rechargeable battery is the mainly trendy characteristics in li ion battery cell industry. We are dedicated to manufacturing and designing LiFePO4 and lithium cells
5. There are many experienced engineers and technicians in our company. Having been successfully explored an advanced craft guarantees the well operation of 18650 battery cell,18650 lithium cells.
Product Description
/ For more details, please contact us！
| NO. | Items | Parameter | Remarks |
| 1 | Rated Capacity | 2400mAh | Discharge:0.2C Cut-off voltage:3.0V |
| Minimum Capacity | 2350mAh | ||
| 2 | Energy | 8.88Wh | |
| 3 | Nominal Voltage | 3.7V | |
| 4 | Open Voltage | ≥3.85V | |
| 5 | Load Voltage | ≥ 3.6V | 10Ω |
| 6 | Cycle Life | 500~1000 times | |
| 7 | Internal Impedance | ≤50mΩ | AC 1KHz after 50% charge |
| 8 | Charge voltage | 4.2V | |
| 9 | Standard charge current | 480mA | |
| 10 | Max charge current | 2400mA | |
| 11 | Standard discharge current | 480mA | |
| 12 | Max Discharge current | 3600mA | |
| 13 | Discharge cut-off voltage | 3.0V | |
| 14 | Operating Temperature | 0~+45℃ | Charge |
| -20~+60℃ | Discharge | ||
| 15 | Storage temperature for a long time | -20~25℃ | |
| 16 | Weight | 45±1g | |
| 17 | Dimensions-Diameter | 18.3±0.2mm | |
| Dimensions-Height | 65.3±0.2mm |
The Lithium Battery Cell Characteristic Curve , Please Refer To:
The Battery Advantages and Cells Consistency Countermeasures for
18650 Battery, Lithium Battery, Lipo Battery, Li-ion battery, LiFePO4 Battery,
Rechargeable Lithium ion Battery, Lithium Polymer Battery,
Lithium iron Phosphate Battery
The Battery Safety Assurance and Low Self Discharge for 18650 Battery, Lithium Battery,
Lipo Battery, Li-ion battery, LiFePO4 Battery, Rechargeable Lithium ion Battery,
Lithium Polymer Battery, Lithium iron Phosphate Battery
More Lithium Battery Cells Model Reference:
