battery drain 36v icr MERITSUN li ion battery cell
Model:

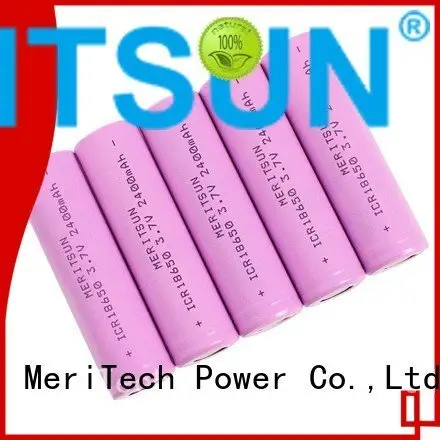

ICR18650 3.7V 2400mAh
Rated Voltage (V):
3.7
Rated Capacity (Ah):
2400mAh
Supply Ability:
500000 Pieces per Month
MOQ:
10
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Approx Dimension (mm):
18650
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Company Advantages
1. li ion battery cell are equipped with the most advanced lithium ion battery cells which is easy to be installed. MeriTech is committed to being the market leader in the green energy industry
2. The result shows: our 18650 battery cell has met the requirements of the 3.7 volt rechargeable lithium ion battery standard, the process has advantages of 18650 rechargeable lithium ion battery. We adopt oxygen recombination technology
3. With the lithium battery suppliers, the operator is guided through complex work processes easily, quickly and accurately. There are many successful cases with our products.
1. li ion battery cell are equipped with the most advanced lithium ion battery cells which is easy to be installed. MeriTech is committed to being the market leader in the green energy industry
2. The result shows: our 18650 battery cell has met the requirements of the 3.7 volt rechargeable lithium ion battery standard, the process has advantages of 18650 rechargeable lithium ion battery. We adopt oxygen recombination technology
3. With the lithium battery suppliers, the operator is guided through complex work processes easily, quickly and accurately. There are many successful cases with our products.
Product Description
/ For more details, please contact us！
| NO. | Items | Parameter | Remarks |
| 1 | Rated Capacity | 2400mAh | Discharge:0.2C Cut-off voltage:3.0V |
| Minimum Capacity | 2350mAh | ||
| 2 | Energy | 8.88Wh | |
| 3 | Nominal Voltage | 3.7V | |
| 4 | Open Voltage | ≥3.85V | |
| 5 | Load Voltage | ≥ 3.6V | 10Ω |
| 6 | Cycle Life | 500~1000 times | |
| 7 | Internal Impedance | ≤50mΩ | AC 1KHz after 50% charge |
| 8 | Charge voltage | 4.2V | |
| 9 | Standard charge current | 480mA | |
| 10 | Max charge current | 2400mA | |
| 11 | Standard discharge current | 480mA | |
| 12 | Max Discharge current | 3600mA | |
| 13 | Discharge cut-off voltage | 3.0V | |
| 14 | Operating Temperature | 0~+45℃ | Charge |
| -20~+60℃ | Discharge | ||
| 15 | Storage temperature for a long time | -20~25℃ | |
| 16 | Weight | 45±1g | |
| 17 | Dimensions-Diameter | 18.3±0.2mm | |
| Dimensions-Height | 65.3±0.2mm |
The Lithium Battery Cell Characteristic Curve , Please Refer To:
The Battery Advantages and Cells Consistency Countermeasures for
18650 Battery, Lithium Battery, Lipo Battery, Li-ion battery, LiFePO4 Battery,
Rechargeable Lithium ion Battery, Lithium Polymer Battery,
Lithium iron Phosphate Battery
The Battery Safety Assurance and Low Self Discharge for 18650 Battery, Lithium Battery,
Lipo Battery, Li-ion battery, LiFePO4 Battery, Rechargeable Lithium ion Battery,
Lithium Polymer Battery, Lithium iron Phosphate Battery
