Wholesale flooded vrla gel battery MERITSUN Brand
1. Owing to its elegant look and sturdy design, these sets are highly in demand amongst our customers.
2. MeriTech Power Co.,Ltd. works hard to make the quality and performance of opzv battery products more in line with the needs of customers. Established in 1999, we have 18 years experience in energy power industry
3. vrla gel battery is an useful accessory to improve the performance of opzs battery. There are many successful cases with our products
❈ Product Features
★ General Features：
◪1. Using oxygen recombination technology: maintenance-free
◪2. Special grid alloy: less gassing, less self-discharging
◪3. For longer cycle life: special paste formula, over dimensioned negative plate, optimised manufacturing process , additives for deep discharge
◪4. Thermal management system (optional)
◪5. Special anti-vibration design (optional)
◪6. High quality AGM separator: extend cycle life
◪7. ABS material: increase the strength of battery container. (Flame-retardant ABS is optional)
❈ Typical Applications
| Electric tools | Portable apparatus, lights and instruments | Portable power |
| Vehicle in place of walking | Electric toys | Wheelchairs |
| Lawn mowers | Illumination light | Medical equipments |
| Golf trolleys and golf cart | Fire alarms | |
❈ Product Specification
Model | Rated Voltage (V) | Rated Capacity (Ah) | Approx Dimension | Approx Weight | Terminal Type | ||||||||
Length | Width | Height | Total Height | ||||||||||
mm | inch | mm | inch | mm | inch | mm | inch | kg | lbs | ||||
GD100-2 | 2 | 100 | 170 | 6.69 | 72 | 2.83 | 205 | 8.07 | 212 | 8.35 | 5.75 | 12.68 | T6 |
GD200-2 | 2 | 200 | 170 | 6.69 | 110 | 4.33 | 328 | 12.9 | 350 | 13.78 | 12.0 | 26.46 | T11 |
GD300-2 | 2 | 300 | 170 | 6.69 | 150 | 5.91 | 328 | 12.9 | 350 | 13.78 | 16.8 | 37.04 | T11 |
GD400-2 | 2 | 400 | 210 | 8.27 | 175 | 6.89 | 330 | 13.0 | 350 | 13.78 | 22.4 | 49.38 | T11 |
GD500-2 | 2 | 500 | 240 | 9.45 | 175 | 6.89 | 330 | 13.0 | 350 | 13.78 | 26.7 | 58.86 | T11 |
GD600-2 | 2 | 600 | 300 | 11.81 | 175 | 6.89 | 330 | 13.0 | 350 | 13.78 | 34.0 | 74.96 | T11 |
GD800-2 | 2 | 800 | 410 | 16.14 | 175 | 6.89 | 330 | 13.0 | 350 | 13.78 | 48.2 | 106.3 | T11 |
GD1000-2 | 2 | 1000 | 475 | 18.70 | 175 | 6.89 | 328 | 12.9 | 350 | 13.78 | 55.6 | 122.6 | T11 |
GD1500-2 | 2 | 1500 | 403 | 15.87 | 354 | 13.94 | 339 | 13.4 | 350 | 13.78 | 94.0 | 207.2 | T11 |
GD2000-2 | 2 | 2000 | 490 | 19.29 | 350 | 13.78 | 339 | 13.4 | 350 | 13.78 | 112.9 | 248.9 | T11 |
GD3000-2 | 2 | 3000 | 712 | 28.03 | 350 | 13.78 | 339 | 13.4 | 350 | 13.78 | 169.1 | 372.8 | T11 |
GD5.6-6 | 6 | 5.6 | 70 | 2.76 | 47 | 1.85 | 100 | 3.94 | 103 | 4.17 | 0.93 | 20.5 | T1/T2 |
GD13-6 | 6 | 13 | 151 | 5.94 | 51 | 2.01 | 94 | 3.70 | 100 | 3.94 | 2.03 | 4.52 | T1/T2 |
GD3.5-12 | 12 | 3.5 | 134 | 5.28 | 67 | 2.64 | 60.5 | 2.38 | 66.5 | 2.62 | 1.36 | 3.00 | T1 |
GD5.6-12 | 12 | 5.6 | 90 | 3.54 | 70 | 2.76 | 101 | 3.98 | 107 | 4.21 | 1.74 | 3.84 | T1/T2 |
GD7.2-12 | 12 | 7.2 | 151 | 5.94 | 65 | 2.56 | 94.5 | 3.72 | 99.5 | 3.92 | 2.50 | 5.51 | T1/T2 |
GD8-12 | 12 | 8 | 151 | 5.94 | 65 | 2.56 | 94.5 | 3.72 | 99.5 | 3.92 | 2.45 | 5.40 | T1/T2 |
GD12-12 | 12 | 12 | 151 | 5.94 | 98 | 3.86 | 95 | 3.74 | 101 | 3.98 | 4.00 | 8.82 | T1/T2 |
GD17-12 | 12 | 17 | 181 | 7.13 | 76 | 2.99 | 167 | 6.57 | 167 | 6.58 | 5.90 | 13.01 | T3 |
GD24-12 | 12 | 24 | 165 | 6.50 | 125 | 4.92 | 175 | 6.89 | 182 | 7.17 | 8.40 | 18.52 | T3/T10/T12 |
GD33-12 | 12 | 33 | 195 | 7.68 | 130 | 5.12 | 155 | 6.10 | 180 | 7.09 | 9.60 | 21.16 | T5/T6/T12 |
GD38-12 | 12 | 38 | 197 | 7.76 | 165 | 6.50 | 176 | 6.93 | 182 | 7.17 | 12.7 | 27.99 | T5/T6/T12 |
GD55-12 | 12 | 55 | 231 | 9.09 | 139 | 5.47 | 208 | 8.19 | 225 | 8.86 | 14.7 | 32.41 | T6/T9/T14 |

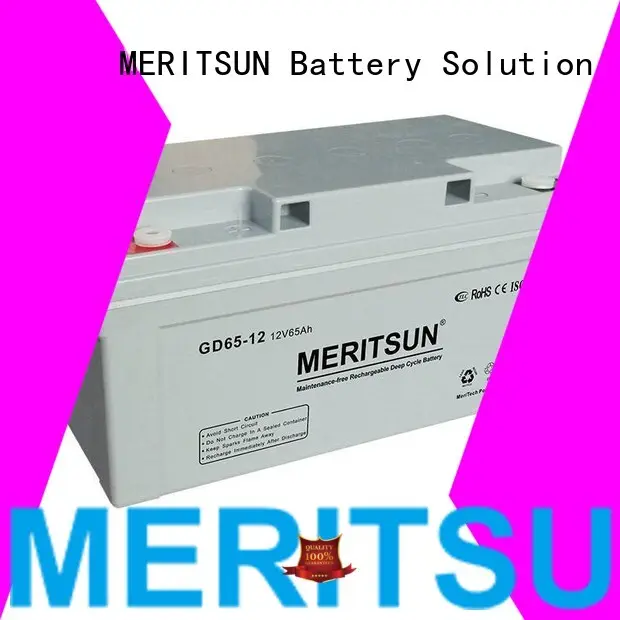

GD65-12 | 12 | 65 | 348 | 13.70 | 166 | 6.54 | 178 | 7.01 | 178 | 7.01 | 19.5 | 42.99 | T6 |
GD80-12 | 12 | 80 | 348 | 13.70 | 166 | 6.54 | 178 | 7.01 | 178 | 7.01 | 21.6 | 47.62 | T6 |
GD90-12 | 12 | 90 | 306 | 12.05 | 168 | 6.61 | 210 | 8.27 | 230 | 9.06 | 25.0 | 55.12 | T6/T9 |
GD100-12A | 12 | 100 | 329 | 12.95 | 171 | 6.73 | 214 | 8.43 | 220 | 8.66 | 29.5 | 65.04 | T11 |
GD100-12B | 12 | 100 | 407 | 16.02 | 174 | 6.85 | 208 | 8.19 | 233 | 9.17 | 31.0 | 68.34 | T11 |
GD120-12 | 12 | 120 | 407 | 16.02 | 174 | 6.85 | 208 | 8.19 | 233 | 9.17 | 32.4 | 71.43 | T11 |
GD150-12 | 12 | 150 | 483 | 19.02 | 170 | 6.69 | 239 | 9.41 | 240 | 9.45 | 41.5 | 91.49 | T11 |
GD200-12 | 12 | 200 | 522 | 20.55 | 239 | 9.41 | 218 | 8.58 | 224 | 8.82 | 56.2 | 123.9 | T11 |
GD250-12 | 12 | 250 | 522 | 20.55 | 268 | 10.55 | 218 | 8.58 | 226 | 8.90 | 71.0 | 156.5 | T11 |
★ Specification subject to change without prior notice.
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. MeriTech Power Co.,Ltd. gathers industry elites to produce the best opzv battery. - Our professional technician strictly operate machines to ensure its normal operation and produce high quality opzs battery.
2. To meet customer's requirements, MERITSUN always keeps the innovative technology to produce agm vrla battery.
3. MeriTech Power Co.,Ltd. boasts its advanced production technology. - We can customize solutions to making 12v gel battery for your own vrla gel battery use. Check now!
