vrla vrla gel battery flooded MERITSUN company
1. We offer battery solutions to Solar energy storage system, Telecom Station 48V system, 12 or 24V Boat and RV energy systems, etc. Presented products are enormously appreciated by MERITSUN customers for characteristics such as vrla gel battery and opzs batterie.
2. OEM and ODM services are available for us. MERITSUN – a famous brand of opzv battery,gel batteries for sale, proudly designs and produces opzs battery,sealed gel battery.
3. Compared with other similar products, our agm vrla battery has the following characteristics of vrla battery manufacturers. There are many successful cases with our products
4. With integrated solutions services in energy storage application, we reach the demands of the smart & green energy era. 12v gel battery,gel battery manufacturer shows good comprehensive properties performance.
❈ Product Features
★ General Features：
◪1. Specifically ideal for 19 inch or 23 inch power cabinets
◪2. Front terminals make the installation, maintenance and supervision easy
◪3. Shield designs protect terminals from short circuit and show good appearance
◪4. Unique vent valve design: reduce water losing and prevent air/spark going inside
◪5. Thick plates, special formula of paste and plate making process for a long service life
◪6. ABS material: increase the strength of battery container (Flame-retardant ABS is optional)
❈ Typical Applications
| For standard 19 inch or 23 inch power cabinets | Power station systems | UPS, standby power supply |
| Network connection equipment of communication system | Power system of special network or local area network | |
❈ Product Specification
Model | Rated Voltage (V) | Rated Capacity (Ah) | Approx Dimension | Approx Weight | Terminal Type | ||||||||
Length | Width | Height | Total Height | ||||||||||
mm | inch | mm | inch | mm | inch | mm | inch | kg | lbs | ||||
GF40-12 | 12 | 40 | 274 | 10.79 | 105 | 4.13 | 220 | 8.66 | 220 | 8.66 | 13.0 | 28.7 | T6 |
GF50-12 | 12 | 50 | 390 | 15.35 | 107 | 4.21 | 200 | 7.87 | 200 | 7.87 | 18.5 | 40.8 | T6 |
GF70-12 | 12 | 70 | 564 | 22.20 | 114 | 4.49 | 187 | 7.36 | 187 | 7.36 | 25.0 | 55.1 | T6 |
GF75-12 | 12 | 75 | 564 | 22.20 | 114 | 4.49 | 187 | 7.36 | 187 | 7.36 | 26.0 | 57.3 | T6 |
GF90-12 | 12 | 90 | 508 | 20.00 | 110 | 4.33 | 239 | 9.41 | 239 | 9.41 | 31.0 | 68.3 | T13 |
GF92-12 | 12 | 92 | 396 | 15.59 | 111 | 4.37 | 285 | 11.22 | 285 | 11.22 | 29.5 | 65.0 | T6 |

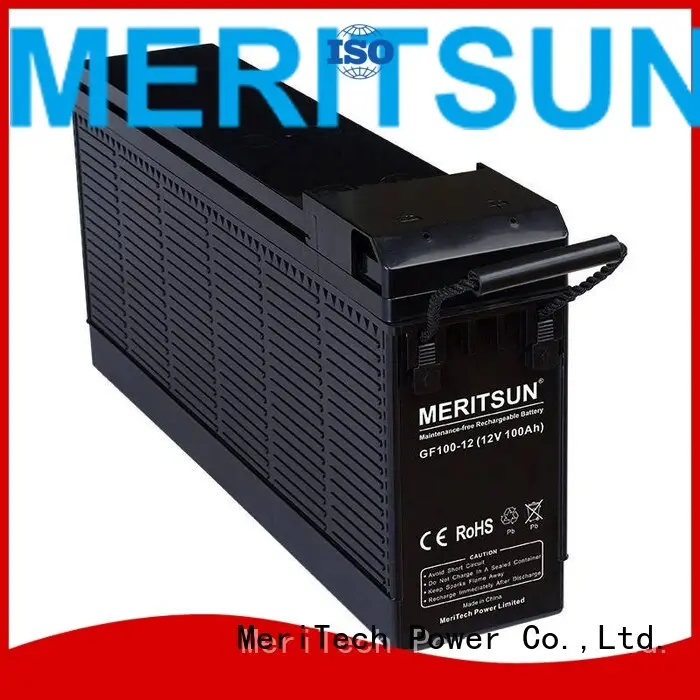

GF100-12A | 12 | 100 | 396 | 15.59 | 111 | 4.37 | 285 | 11.22 | 285 | 11.22 | 33.0 | 72.8 | T6 |
GF100-12B | 12 | 100 | 520 | 20.47 | 107 | 4.21 | 263 | 10.35 | 263 | 10.35 | 33.0 | 72.8 | T6 |
GF120-12 | 12 | 120 | 520 | 20.47 | 107 | 4.21 | 263 | 10.35 | 263 | 10.35 | 39.5 | 87.1 | T6 |
GF125-12 | 12 | 125 | 551 | 21.69 | 110 | 4.33 | 287 | 11.30 | 287 | 11.30 | 40.5 | 89.3 | T6 |
GF150-12 | 12 | 150 | 558 | 21.97 | 125 | 4.92 | 283 | 11.14 | 283 | 11.14 | 48.0 | 105.8 | T6 |
GF180-12 | 12 | 180 | 561 | 22.09 | 125 | 4.92 | 316 | 12.44 | 316 | 12.44 | 52.0 | 114.6 | T6 |
GF200-12 | 12 | 200 | 550 | 21.65 | 125 | 4.92 | 330 | 12.99 | 330 | 12.99 | 62.0 | 136.7 | T6 |
★ Specification subject to change without prior notice.
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. MERITSUN is quality-oriented and has gained wide market in opzv battery field.
2. At present, MeriTech Power Co.,Ltd. has advanced production lines and various testing equipment for opzs battery.
3. Ensuring a harmonious environment between employees can provide the best agm vrla battery. Get an offer!
