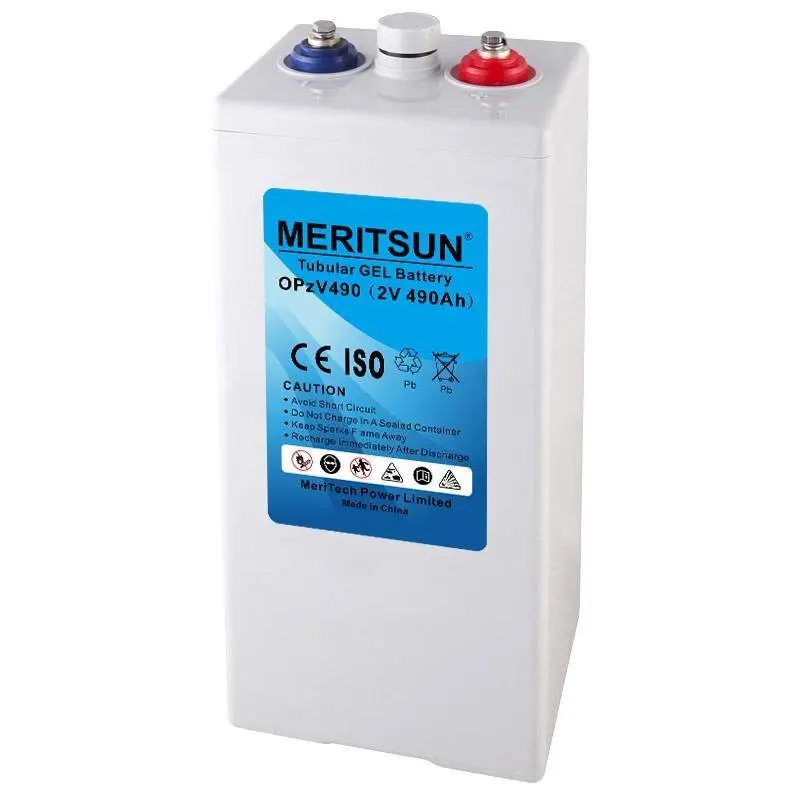

Tubular Gel - OPzV Battery

    oops...!

    no product data.

    Go to homepage

    ❈ Product Features

    bg


    ★ General Features:

    • 1. Completely sealing throughout the batteries life.

    • 2. Service life up to 18-20 years in continuous float operation down to approx 80% capacity.

    • 3. Gel electrolyte.

    • 4. Low gassing thanks to antimony-free alloy and internal oxygen recombination.

    • 5. Minimum space required and room requirements are minimal e.g. no washing facilities needed, ventilation requirements are minimal.

    • 6. Easy to move and handle.

    • 7. Easy install using cable connectors with insulated terminal covers.

    • 8. Ready for immediate use without further commissioning work.

    • 9. Can be supplied as a standard vertical installation or by special request, for a horizontal installation.

    • 10. Very low self-discharge<50% of rated capacity in 2 years at 20 ℃ ambient temperature.

    • 11. High cyclic ability over 600 cycles when discharged at 10 hour rate to an end voltage of 1.8Volt/cell at 20℃ .

    • 12. Deep discharge protected, a load can be connected to the battery for up to 4 weeks.

    • 13. No internal short circuits possible due to the gel structure.

    • 14. No acid stratification, so no equalizing charge necessary.


    ❈ Typical Applications

    bg


    Telecommunications
    Large UPS and computer back-up
    Railway signalling
    Emergency lighting systems
    Radio and cellular telephone relay stations
    Standby power
    Process and control engineering
    Maritime standby power on ships and ashore
    Buoy lighting
    Power stations, Conventional power stations, alternative power (solar, wind)


    ❈ Product  Specification

    bg



    Model

    Rated

    Voltage

    (V)

    Rated

    Capacity

    (Ah)

    Approx Dimension

    Approx

    Weight

    Terminal

    Type

    Length

    Width

    Height

    Total Height

    mm

    inch

    mm

    inch

    mm

    inch

    mm

    inch

    kg

    lbs

    OPzV200-2

    2

    200

    103

    4.06

    206

    8.11

    355

    13.98

    390

    15.35

    18.0

    39.7

    T11

    OPzV250-2

    2

    250

    124

    4.88

    206

    8.11

    355

    13.98

    390

    15.35

    22.0

    48.5

    T11

    OPzV300-2

    2

    300

    145

    5.71

    206

    8.11

    355

    13.98

    390

    15.35

    26.0

    57.3

    T11

    OPzV350-2

    2

    350

    124

    4.88

    206

    8.11

    471

    18.54

    506

    19.92

    29.0

    63.9

    T11

    OPzV420-2

    2

    420

    145

    5.71

    206

    8.11

    471

    18.54

    506

    19.92

    34.0

    74.9

    T11

    OPzV490-2

    2

    490

    166

    6.54

    206

    8.11

    471

    18.54

    506

    19.92

    39.0

    86.0

    T11

    OPzV600-2

    2

    600

    145

    5.71

    206

    8.11

    646

    25.43

    681

    26.81

    46.0

    101.4

    T11

    OPzV800-2

    2

    800

    191

    7.52

    210

    8.27

    646

    25.43

    681

    26.81

    64.5

    142.2

    T11

    OPzV1000-2

    2

    1000

    233

    9.17

    210

    8.27

    646

    25.43

    681

    26.81

    78.5

    173.0

    T11

    OPzV1200-2

    2

    1200

    275

    10.83

    210

    8.27

    646

    25.43

    681

    26.81

    93.0

    205.0

    T11

    OPzV1500-2

    2

    1500

    275

    10.83

    210

    8.27

    796

    31.34

    831

    32.72

    115.0

    253.5

    T11

    OPzV2000-2

    2

    2000

    399

    15.71

    214

    8.43

    772

    30.39

    807

    31.77

    155.0

    341.6

    T11

    OPzV2500-2

    2

    2500

    487

    19.17

    212

    8.35

    772

    30.39

    807

    31.77

    196.0

    432.0

    T11

    OPzV3000-2

    2

    3000

    576

    22.68

    212

    8.35

    772

    30.39

    807

    31.77

    232.0

    511.3

    T11


    ★ Specification subject to change without prior notice.
