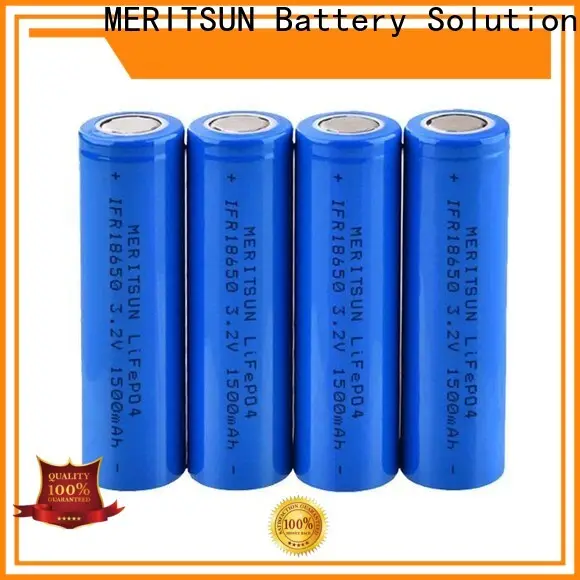

top icr 18650 battery customized for telecom
Model:
IFR18650 3.2V 1500mAh
Rated Voltage (V):
3.2
Rated Capacity (Ah):
1500mAh
Supply Ability:
500000 Pieces per Month
MOQ:
10
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Approx Dimension (mm):
18650
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Company Advantages
1. MERITSUN 18650 lithium cells is developed by the experienced in-house R&D team. Various parameters relating to the performance of battery have been taken into consideration by our technicians, including discharge, open-circuit voltage, capacity, and internal resistance.
2. MeriTech Power Co.,Ltd. has built a productive international sales network. Made of reliable chemical substances, the product is of superior safety
3. The product has been subjected to close inspection on various quality parameters. Supported by the lead-acid battery, it has a high discharge rate while maintaining high energy capacity
4. The product is superior in quality and remarkable in performance and durability. Using LiFePO4 along with the integrated BMS, the product features overcharge and discharge protection
5. It is widely recognized with high performance and low cost. It is produced in strict accordance with the UL standard
![]()
![]()
1. MERITSUN 18650 lithium cells is developed by the experienced in-house R&D team. Various parameters relating to the performance of battery have been taken into consideration by our technicians, including discharge, open-circuit voltage, capacity, and internal resistance.
2. MeriTech Power Co.,Ltd. has built a productive international sales network. Made of reliable chemical substances, the product is of superior safety
3. The product has been subjected to close inspection on various quality parameters. Supported by the lead-acid battery, it has a high discharge rate while maintaining high energy capacity
4. The product is superior in quality and remarkable in performance and durability. Using LiFePO4 along with the integrated BMS, the product features overcharge and discharge protection
5. It is widely recognized with high performance and low cost. It is produced in strict accordance with the UL standard
For More Details, Please Contact US !
| NO. | Items | Parameter | Remarks |
| 1 | Rated Capacity | 1500mAh | Discharge:0.2C Cut-off voltage:3.0V |
| Minimum Capacity | 1450mAh | ||
| 2 | Energy | 4.8Wh | |
| 3 | Nominal Voltage | 3.2V | |
| 4 | Open Voltage | ≥3.2V | |
| 5 | Load Voltage | ≥ 3.2V | 10Ω |
| 6 | Cycle Life | ≥2000 times | |
| 7 | Internal Impedance | ≤50mΩ | AC 1KHz after 50% charge |
| 8 | Charge voltage | 3.65V | |
| 9 | Standard charge current | 300mA | |
| 10 | Max charge current | 750mA | |
| 11 | Standard discharge current | 1500mA | |
| 12 | Pulse Discharge current | 10A (5S) | |
| 13 | Discharge cut-off voltage | 2.5V | |
| 14 | Operating Temperature | 0~+55℃ | Charge |
| -20~+60℃ | Discharge | ||
| 15 | Storage temperature for a long time | -20~25℃ | |
| 16 | Weight | 42±1g | |
| 17 | Dimensions-Diameter | 18.3±0.2mm | |
| Dimensions-Height | 65.3±0.2mm |
The Lithium Battery Cell Characteristic Curve , Please Refer To:
The Battery Advantages and Cells Consistency Countermeasures for
18650 Battery, Lithium Battery, Lipo Battery, Li-ion battery, LiFePO4 Battery,
Rechargeable Lithium ion Battery, Lithium Polymer Battery,
Lithium iron Phosphate Battery
The Battery Safety Assurance and Low Self Discharge for 18650 Battery, Lithium Battery,
Lipo Battery, Li-ion battery, LiFePO4 Battery, Rechargeable Lithium ion Battery,
Lithium Polymer Battery, Lithium iron Phosphate Battery
More Lithium Battery Cells Model Reference:
