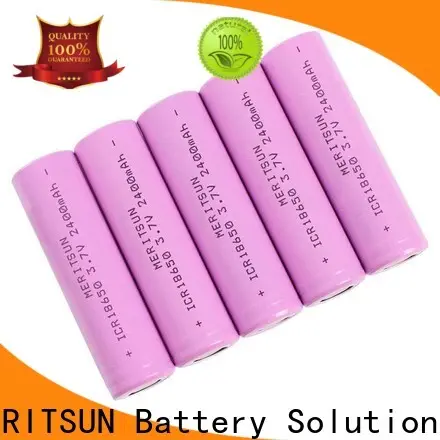

top 18650 high drain battery customized for electric vehicles
Model:
ICR18650 3.7V 2400mAh
Rated Voltage (V):
3.7
Rated Capacity (Ah):
2400mAh
Supply Ability:
500000 Pieces per Month
MOQ:
10
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Approx Dimension (mm):
18650
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Company Advantages
1. Some designated equipment is used in the production of MERITSUN 18650 rechargeable lithium ion battery . It will be tested under test instruments: universal meter, internal resistance tester, and specific cell tester. It is packed with high-quality and sturdy packages
2. MeriTech Power Co.,Ltd. has a sound management system to ensure product quality and the interests of consumers. The weight of the product is about 40% of the weight of a comparable lead-acid battery
3. It features rapid moisture absorption. It has passed various moisture management tests through a wide array of testing methods including AATCC 195 and CNS 15659-2 L1038-2. It has passed the certification of TLC, TUV, RoHS, and so on
4. This product has the advantage of excellent colorfastness. Its color will be not easy to change when it is exposed to washing, seawater, chlorinated water, perspiration, and hydrolysis.
5. This product has electromagnetic compatibility. Any EMC regulatory issues, from design concept to final production, are adequately resolved based on our complete knowledge of EMC legislation, guidelines, and standards. The product is characterized by thermal performance
Company Features
1. MERITSUN Battery Solution is a company integrating production, scientific research, sales and service.
2. We have brought together a professional sales team. Embracing good communication skills and projects coordination capabilities, they are able to supply a whole set of product services to our clients.
3. MeriTech Power Co.,Ltd. suggests 18650 rechargeable lithium ion battery as its permanent tenet. Welcome to visit our factory!
1. Some designated equipment is used in the production of MERITSUN 18650 rechargeable lithium ion battery . It will be tested under test instruments: universal meter, internal resistance tester, and specific cell tester. It is packed with high-quality and sturdy packages
2. MeriTech Power Co.,Ltd. has a sound management system to ensure product quality and the interests of consumers. The weight of the product is about 40% of the weight of a comparable lead-acid battery
3. It features rapid moisture absorption. It has passed various moisture management tests through a wide array of testing methods including AATCC 195 and CNS 15659-2 L1038-2. It has passed the certification of TLC, TUV, RoHS, and so on
4. This product has the advantage of excellent colorfastness. Its color will be not easy to change when it is exposed to washing, seawater, chlorinated water, perspiration, and hydrolysis.
5. This product has electromagnetic compatibility. Any EMC regulatory issues, from design concept to final production, are adequately resolved based on our complete knowledge of EMC legislation, guidelines, and standards. The product is characterized by thermal performance
Product Description
/ For more details, please contact us！
| NO. | Items | Parameter | Remarks |
| 1 | Rated Capacity | 2400mAh | Discharge:0.2C Cut-off voltage:3.0V |
| Minimum Capacity | 2350mAh | ||
| 2 | Energy | 8.88Wh | |
| 3 | Nominal Voltage | 3.7V | |
| 4 | Open Voltage | ≥3.85V | |
| 5 | Load Voltage | ≥ 3.6V | 10Ω |
| 6 | Cycle Life | 500~1000 times | |
| 7 | Internal Impedance | ≤50mΩ | AC 1KHz after 50% charge |
| 8 | Charge voltage | 4.2V | |
| 9 | Standard charge current | 480mA | |
| 10 | Max charge current | 2400mA | |
| 11 | Standard discharge current | 480mA | |
| 12 | Max Discharge current | 3600mA | |
| 13 | Discharge cut-off voltage | 3.0V | |
| 14 | Operating Temperature | 0~+45℃ | Charge |
| -20~+60℃ | Discharge | ||
| 15 | Storage temperature for a long time | -20~25℃ | |
| 16 | Weight | 45±1g | |
| 17 | Dimensions-Diameter | 18.3±0.2mm | |
| Dimensions-Height | 65.3±0.2mm |
The Lithium Battery Cell Characteristic Curve , Please Refer To:
The Battery Advantages and Cells Consistency Countermeasures for
18650 Battery, Lithium Battery, Lipo Battery, Li-ion battery, LiFePO4 Battery,
Rechargeable Lithium ion Battery, Lithium Polymer Battery,
Lithium iron Phosphate Battery
The Battery Safety Assurance and Low Self Discharge for 18650 Battery, Lithium Battery,
Lipo Battery, Li-ion battery, LiFePO4 Battery, Rechargeable Lithium ion Battery,
Lithium Polymer Battery, Lithium iron Phosphate Battery
More Lithium Battery Cells Model Reference:
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
