telecom storage battery factory direct supply for base transceiver station
1. Various factors have been considered during the design of MERITSUN storage battery . They involve foot proportion, physical weight distribution, arch support, and stress point.
2. This product can be guaranteed with a high safety level. It has passed the materials test that focuses on the safety of ingredients.
3. The product benefits customers in a fierce market competition.
Electrical Characteristics | Model | 48V 50Ah (LiFePO4 Lthium iron Phosphate Battery) |
| Energy | 2400Wh | |
| Internal Resistance | ≤110mΩ | |
| Cycle Life | >2000 cycles @1.0C 100%DOD | |
| Months Self Discharge | <3% | |
| Standard Charge | Charge Voltage | 54.0±0.1V |
| Charge Mode | 0.2C to 54.0V, then 54.0V,charge current to 0.02C (CC/CV) | |
| Charger Current | 10A (Customizable) | |
| Max. Charge Current | 50A (Customizable) | |
| Charge Cut-off Voltage | 57.6±0.2V | |
| Standard Discharge | Continuous Current | 10A (Customizable) |
| Max continuous discharge current | 50A (Customizable) | |
| Discharge Cut-off Voltage | 37.5V | |
| Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32℉ to 113℉) @60±25% Relative Humidity |
| Discharge Temperature | -20 ℃ to 60 ℃ (-4℉ to 140℉) @60±25% Relative Humidity | |
| Storage Temperature | 0 ℃ to 40 ℃ (32℉ to 104℉) @60±25% Relative Humidity | |
| Mechanical | Cell & Method | LFP027135180-50Ah 3.2V50Ah 15S1P |
| Shell material | iron | |
| Dimensions | 442*385*132 mm | |
| Weight (lbs./kg.) | Approx: 30kg (66.14 Ibs) | |
| Gravimetric specific energy | 80WH/KG |

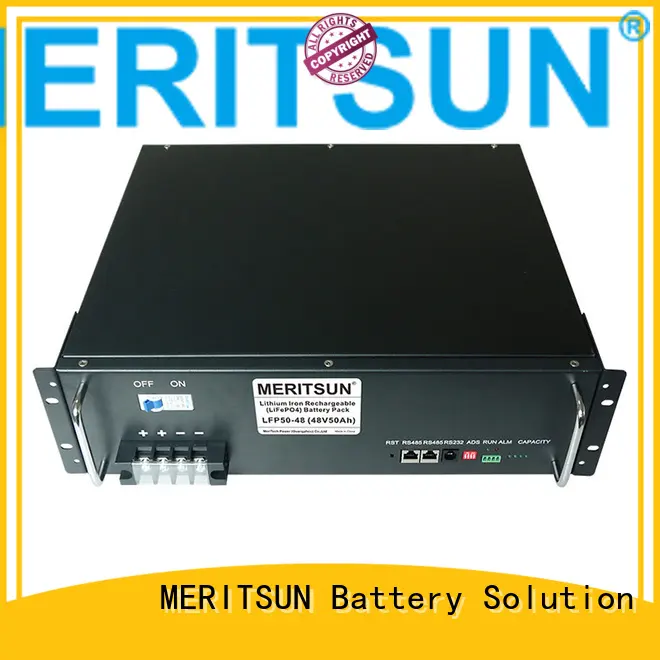

The ESS Energy Storage System 48V 50Ah LiFePO4 Battery
Internal structure, please refer to:
System Diagram of Lithium Module and BMS
The Factors of Quality Guarantee for Solar Street Light Rechargeable Lipo Lithium ion Battery
(First-class quality management system, Professional technical form.)
MERITSUN Lithium Battery BMS / PCB / PCM
Li-ion cells should always be used with a protection circuit to prevent the cell from over charging or over dis-charging. Choosing the correct circuit and applying it appropriately is vital to the longevity your batteries and your own safety. MeriTech test each Cells and BMS/PCB/PCM before manufacturing and promise it is functional and safe.
BMS / PCB / PCM is the "heart" of Lithium battery pack. BMS (Battery Management System) is any electronic system that manages a rechargeable battery (cell or battery pack), such as by monitoring its state, calculating secondary data, reporting that data, protecting the battery, controlling its environment, and balancing it.
MeriTech is focusing on new energy, Global market changes of battery, Through market research to constant understand customers needs in order to build a perfect service network,Own many experienced engineers and technicians, to provide comprehensive, in-depth, quickly and attentive service for you. We could response your request immediately.
MeriTech Power Specialist will estimate your power needs, identify potential problem areas and recommend a cost-effective solution. What you'll get:
1. The global optimum acquisition price for any required hardware
2. Installation considerations
3. Ongoing support options
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. MeriTech Power Co.,Ltd. was established a few years ago, focusing on providing the best energy storage solutions for the industry.
2. The plant of MERITSUN has advanced machines and professional testing equipment.
3. MeriTech Power Co.,Ltd. constantly optimizes its production structure and mode. Welcome to visit our factory! MeriTech Power Co.,Ltd. aims to supply sound services for full satisfaction of customers. Welcome to visit our factory! MERITSUN will continue to give full play to the important role of culture in improving corporate management. Welcome to visit our factory! MERITSUN adheres to the goal of power storage devices to provide customers with competitive products and service. Welcome to visit our factory!
SOLAR POWER SYSTEM UPS SYSTEM DEEP CYCLE LONG LIFE NI-IRON NI-FE STORAGE BATTERY TN600(1.2V, 600Ah)
External dimensions,weight of low rate Ni-Iron pocket type battery
Model |
Nominal Votage (V) | Nominal Capacity (Ah) | Max Dimension (mm) | Thread of pole | Max.weight with electrolyte (Kg) | Electrolyte Volume (L) | Container Material | ||
L | W | H | |||||||
TN10-(2) | 1.2 | 10 | 85 | 39 | 136 | M8 | 0.70 | 0.15 | ABS or MBS |
TN 20 | 1.2 | 20 | 82 | 43 | 260 | M10×1.5 | 1.20 | 0.25 | ABS or MBS |
TN 22 | 1.2 | 22 | 112 | 31 | 220 | M8 | 1.30 | 0.13 | MBS |
TN 30 | 1.2 | 30 | 136 | 56 | 264 | M10×1.5 | 1.95 | 0.42 | PP |
TN 40 | 1.2 | 40 | 136 | 56 | 264 | M10×1.5 | 2.40 | 0.50 | PP |
TN 50 | 1.2 | 50 | 141 | 71 | 295 | M10×1.5 | 3.40 | 0.84 | PP |
TN 50-(2) | 1.2 | 50 | 138 | 61 | 266 | M10×1.5 | 3.2 | 0.7 | ABS or MBS |
TN 60-(2) | 1.2 | 60 | 135 | 52 | 373 | M10×1.5 | 3.9 | 1.0 | ABS or MBS |
TN 60 | 1.2 | 60 | 141 | 71 | 295 | M10×1.5 | 4.5 | 1.5 | PP |
TN 100-(2) | 1.2 | 100 | 139 | 79 | 362 | M10×1.5 | 6.5 | 1.7 | ABS or MBS |
TN 150 | 1.2 | 150 | 167 | 162 | |||||
