solar lithium ion polymer battery customized for building
- Established in 1999, MeriTech has 18 years of experience in providing solutions services in energy storage application industry. We dedicated to designing and manufacturing of LiFePO4 and lithium cells and integrated battery packs for energy system. has a professional customer service team. We are able to provide one-to-one service for customers and solve their problems efficiently.
1. After studying the body frame of lithium ion polymer battery , lifepo4 battery 100ah with excellent properties is gained.
2. This product can store energy reasonably well for a long time with low self-discharge. It will not be affected by outer elements such as temperature, moisture, vibration, shock, etc.
3. The product is widely applied in different situations for its huge economic effectiveness.
4. As we adhere to continuous innovation, the product will be given more advantages and will be more widely used in the future.
Electrical Characteristics | Nominal Voltage | 12.8V (12V) |
Nominal Capacity | 100Ah | |
Energy | 1280Wh | |
Internal Resistance | ≤90mΩ | |
Cycle Life | >4000 cycles @1C 80%DOD | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Voltage | 14.6±0.2V |
Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) | |
Charger Current | 40A | |
Max. Charge Current | 70A | |
Charge Cut-off Voltage | 15.6V±0.2V | |
Standard Discharge | Continuous Current | 70A |
Max. Pulse Current | 100A(<10s) | |
Discharge Cut-off Voltage | 10V | |
Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
Water Dust Resistance | IP55 | |
Mechanical | Cell & Method | 3.2V25Ah 4S4P |
Plastic Case | ABS | |
Dimensions (in./mm.) | 330*173*220mm | |
Weight (lbs./kg.) | 13.5kg | |
Terminal | / | |
Protocol (optional) | / | |
LCD (optional) | Yes |
The Product Feature, please refer to:
Technology info

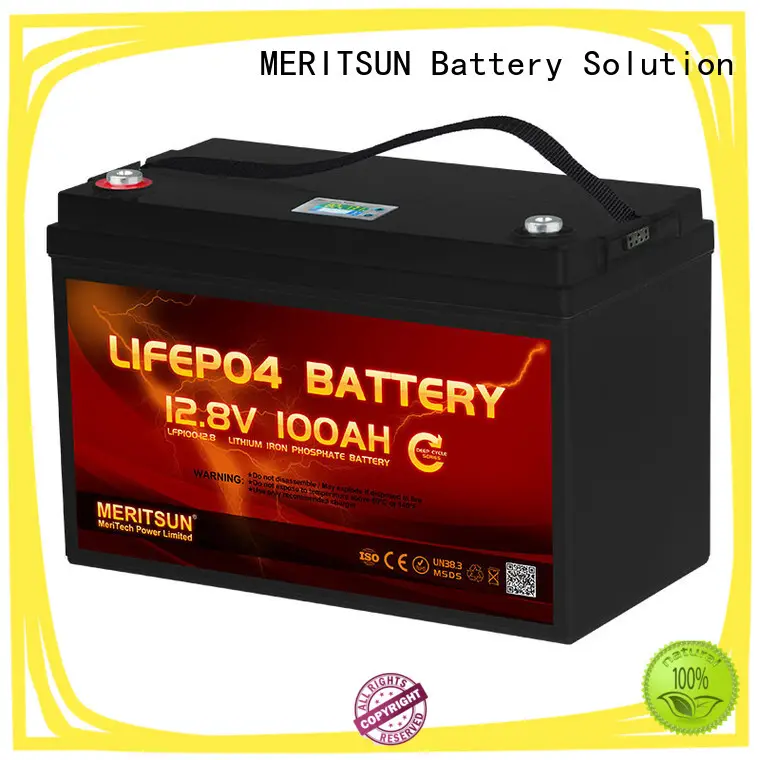

The Technology info with regard to With LCD APP Bluetooth Control 12V 100Ah Deep Cycle LiFePO4 Lithium ion Polymer Battery Pack
The Factors of Quality Guarantee for Solar Street Light Rechargeable Lipo Lithium ion Battery
(First-class quality management system, Professional technical form.)
MERITSUN Lithium Battery BMS / PCB / PCM
Li-ion cells should always be used with a protection circuit to prevent the cell from over charging or over dis-charging. Choosing the correct circuit and applying it appropriately is vital to the longevity your batteries and your own safety. MeriTech test each Cells and BMS/PCB/PCM before manufacturing and promise it is functional and safe.
BMS / PCB / PCM is the "heart" of Lithium battery pack. BMS (Battery Management System) is any electronic system that manages a rechargeable battery (cell or battery pack), such as by monitoring its state, calculating secondary data, reporting that data, protecting the battery, controlling its environment, and balancing it.
Packaging info
Professional Certification
MeriTech is focusing on new energy, Global market changes of battery, Through market research to constant understand customers needs in order to build a perfect service network,Own many experienced engineers and technicians, to provide comprehensive, in-depth, quickly and attentive service for you. We could response your request immediately.
MeriTech Power Specialist will estimate your power needs, identify potential problem areas and recommend a cost-effective solution. What you'll get:
1. The global optimum acquisition price for any required hardware
2. Installation considerations
3. Ongoing support options
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. MeriTech Power Co.,Ltd. is one of the market leaders in China with our fine range of competitively priced, custom-made products such as lithium ion polymer battery .
2. We have a highly advanced state-of-the-art infrastructural factory. It has been equipped with all the necessary machinery and equipment, which facilitates the attainment of several of our predefined goals and targets.
3. A good image of MERITSUN springs from the good quality of lifepo4 battery 12v , as well as the service to customers. Inquiry! Customization service is available for our lithium batteries for sale . Inquiry! Like other top enterprises, MeriTech Power Co.,Ltd. regards quality as the hallmark. Inquiry! Carrying out the concept of lifepo4 battery 100ah and promote the entrepreneurial spirit of 24 volt lifepo4 battery pack help MERITSUN improve better. Inquiry!
