smart chargingess energy storage system supplierfor residential
- Established in 1999, MeriTech has 18 years of experience in providing solutions services in energy storage application industry. We dedicated to designing and manufacturing of LiFePO4 and lithium cells and integrated battery packs for energy system. constantly improves the service system and creates a healthy and excellent service structure.
1. Being widely recognized by more customers, it turns out to be effective that MERITSUN needs to also pay attention to the design of ess energy storage system .
2. The product is environmental-friendly. Any heavy metals such as lead, mercury, cadmium have been eliminated, and the ingredients of them do not exceed 0.0001%.
3. A low self-discharge rate is one of its biggest selling points. Its anode and cathode materials, as well as the electrolyte types, features high purity and quality, which makes it less vulnerable to self-discharge.
4. It is available in varied specification as per the different demands of the clients.
Electrical Characteristics | Model | 48V 100Ah (LiFePO4 Lthium iron Phosphate Battery) |
| Energy | 4800Wh | |
| Internal Resistance | ≤80mΩ | |
| Cycle Life | >2000 cycles @1.0C 100%DOD | |
| Months Self Discharge | <3% | |
| Standard Charge | Charge Voltage | 54.0±0.1V |
| Charge Mode | 0.2C to 54.0V, then 54.0V,charge current to 0.02C (CC/CV) | |
| Charger Current | 20A (Customizable) | |
| Max. Charge Current | 50A (Customizable) | |
| Charge Cut-off Voltage | 57.6±0.2V | |
| Standard Discharge | Continuous Current | 20A (Customizable) |
| Max continuous discharge current | 50A (Customizable) | |
| Discharge Cut-off Voltage | 37.5V | |
| Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32℉ to 113℉) @60±25% Relative Humidity |
| Discharge Temperature | -20 ℃ to 60 ℃ (-4℉ to 140℉) @60±25% Relative Humidity | |
| Storage Temperature | 0 ℃ to 40 ℃ (32℉ to 104℉) @60±25% Relative Humidity | |
| Mechanical | Cell & Method | LFP027135180-50Ah 3.2V50Ah 15S2P |
| Shell material | iron | |
| Dimensions | 442*400*221mm | |
| Weight (lbs./kg.) | Approx: 60kg (132.27 Ibs) | |
| Gravimetric specific energy | 80WH/KG |

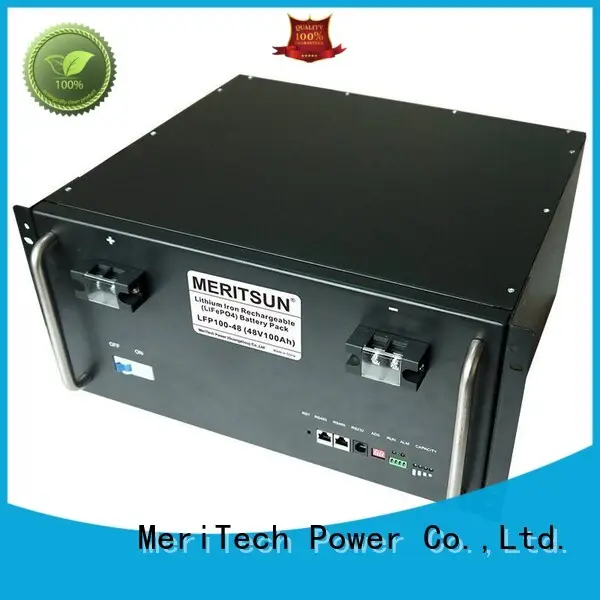

The 48V 100Ah ESS Energy Storage System LiFePO4 Battery
Internal structure, please refer to:
System Diagram of Lithium Module and BMS
OBM / OEM / ODM Service
The OBM / OEM / ODM Service with regard to 48V 100Ah ESS Energy Storage System LiFePO4 Lithium iron Phosphate Battery
MeriTech is focusing on new energy, Global market changes of battery, Through market research to constant understand customers needs in order to build a perfect service network,Own many experienced engineers and technicians, to provide comprehensive, in-depth, quickly and attentive service for you. We could response your request immediately.
Part of Worldwide Partners
We Treasure Your Trust
on us by high-quality products with honesty and professional service
MeriTech Power Specialist will estimate your power needs, identify potential problem areas and recommend a cost-effective solution. What you'll get:
1. The global optimum acquisition price for any required hardware
2. Installation considerations
3. Ongoing support options
Professional Certification
MeriTech Power Limited has：
1. An excellent team which is experienced with market and has strong techni-cal capability to customize cost effective.
2. Cleaner production enterprise in Guangzhou, China.
3. OEM/ODM services backed by nearly 20 years' R&D experience.
Technology info
The Technology info with regard to 48V 100Ah ESS Energy Storage System LiFePO4 Lithium iron Phosphate Battery
The Factors of Quality Guarantee for Solar Street Light Rechargeable Lipo Lithium ion Battery
(First-class quality management system, Professional technical form.)
MERITSUN Lithium Battery BMS / PCB / PCM
Li-ion cells should always be used with a protection circuit to prevent the cell from over charging or over dis-charging. Choosing the correct circuit and applying it appropriately is vital to the longevity your batteries and your own safety. MeriTech test each Cells and BMS/PCB/PCM before manufacturing and promise it is functional and safe.
BMS / PCB / PCM is the "heart" of Lithium battery pack. BMS (Battery Management System) is any electronic system that manages a rechargeable battery (cell or battery pack), such as by monitoring its state, calculating secondary data, reporting that data, protecting the battery, controlling its environment, and balancing it.
Packaging info
The Packaging with regard to 48V 100Ah ESS Energy Storage System LiFePO4 Lithium iron Phosphate Battery
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. After years of engagement in manufacturing ess energy storage system , MeriTech Power Co.,Ltd. has been a well-positioned and reliable manufacturer with years of experience.
2. We have brought together a professional QC team in our manufacturing factory. They test each product before delivery, which ensures product consistency and complies fully with industry guidelines.
3. We strive to acquire the marketplace and many praised customer support with our greatest quality battery power storage. Get price! For the ultimate ambition of being a leading battery energy storage system supplier, MERITSUN has been doing its utmost. Get price! MERITSUN has great ambitions to win the main market of home energy storage . Get price!
