Feature

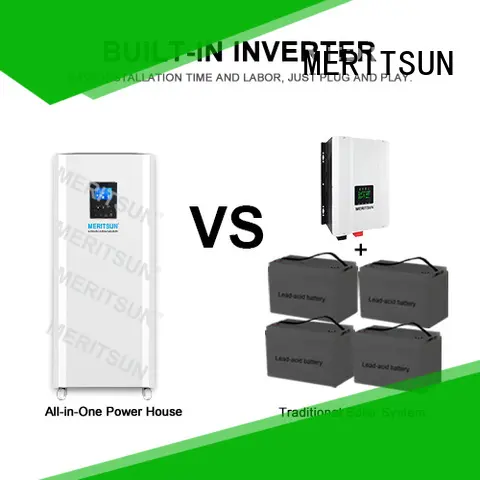

1.Built in Inverter and Smart BMS.Save installation time and labor.
2.WiFi App Management Optional.
3.Longer Cycle Life:6000 Cycle Life @80%DOD.
4.Easy to move with wheels.Compact and portable design,indoor and outdoor workable.
5.Triple input:Solar energy charging;Utility Grid charging and Diesel Engine charging.
| Battery Pack | Nominal Voltage | 48V |
| Nominal Capacity | 100Ah | |
| Nominal Energy | 100Ah | |
| Cycle Life | ≥6000 cycle life | |
| Weight | 60kg | |
| Weight | 450*350*805 mm | |
| Operation Temperature Range | Charge: 0~45℃ | |
| Discharge: -20~55℃ | ||
| Internal Impedance | ≤50mΩ | |
| Inverter | Rated Powe | 5000VA/4000W |
| Input | ||
| Voltage | 230 VAC | |
| Selectable voltage range | 70-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances) | |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) | |
| Output | ||
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% | |
| Surge Power | 10000VA | |
| 10000VA | 93% | |
| Transfer Time | 10 ms (For Personal Computers) 20 ms (For Home Appliances) | |
| Waveform | Pure sine wave | |
| Battery &AC Charge | ||
| Battery Voltage | 48 VDC | |
| Floating Charge Voltage | 54 VDC | |
| Overcharge Protection | 60 VDC | |
| Maximum Charge Current | 10A/20A/30A/40A/50A/60A | |
| Solar Charge | ||
| Maximum PV Array Power | 3000W/4000W | |
| MPPT Range@ Operating Voltage | MPPT Range@ Operating Voltage | |
| Maximum Charging Current | 60A/80A | |
| Maximum Efficiency | 98% | |
| Standby Power Consumption | Standby Power Consumption | |
