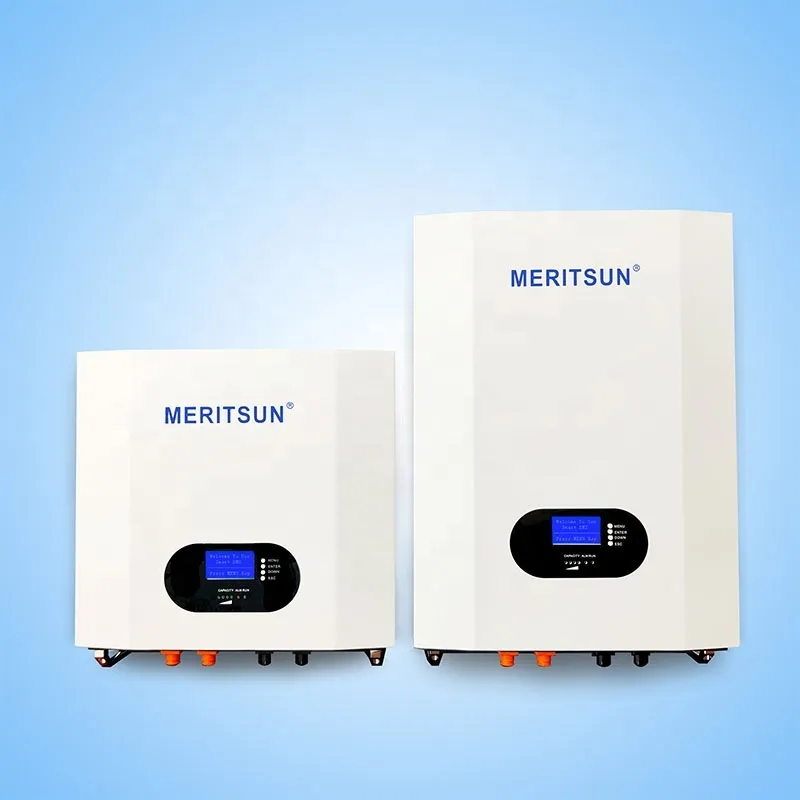

Patented Design 5kWh 7kWh 10kWh 6000cycle Solar Power System Home Hybrid Grid 48V LiFePO4 Lithium Battery Energy Storage System
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
LiFePO4 Lithium Battery Pack Spec. | ||||||||||||
Energy | Battery | Charging Voltage | Maximum Continuous Charge Current | Maximum Continuous Discharge Current | Dimensions (L×W×H) | Weight | ||||||
5 kWH | 48V/51.2V 100Ah | 53.2-54V | 100A | 100A | 480*450*222 mm | 48kg | ||||||
7 kWH | 48V/51.2V 150Ah | 480*650*242 mm | 70kg | |||||||||
10kWH | 48V/51.2V 200Ah | 480*650*242 mm | 88kg | |||||||||
Cycle Life: > 6000cycle | 12 Years Warranty | |||||||||||
On/Off Grid Hybrid Inverter Spec. | ||||||||||||||||||
Model | Max PV Input | Max AC Output | Max AC Output | Output with Battery | Max Charge Current | Max Discharge Current | Peak Output Power (30s) | Dimension (L×W×H) | Weight | |||||||||
3 kVA | 6600W | 3000W | 3000W | 3600W | 66A | 66A | 4500W | 455*565*181mm | 20Kg | |||||||||
5 kVA | 8000W | 5000W | 5000W | 3600W | 66A | 66A | 4500W | 455*565*181mm | 20Kg | |||||||||
For More Information On The Product, Please Contact Us Now!
(click on the online customer service on the right).
MeriTech Power Co.,Ltd. gives technical assurance and first-class quality. The charge rate of the product is strong, shortening the charge time efficiently.
MeriTech Power Co.,Ltd. possess strong local resource advantages. The charge rate of the product is strong, shortening the charge time efficiently.
