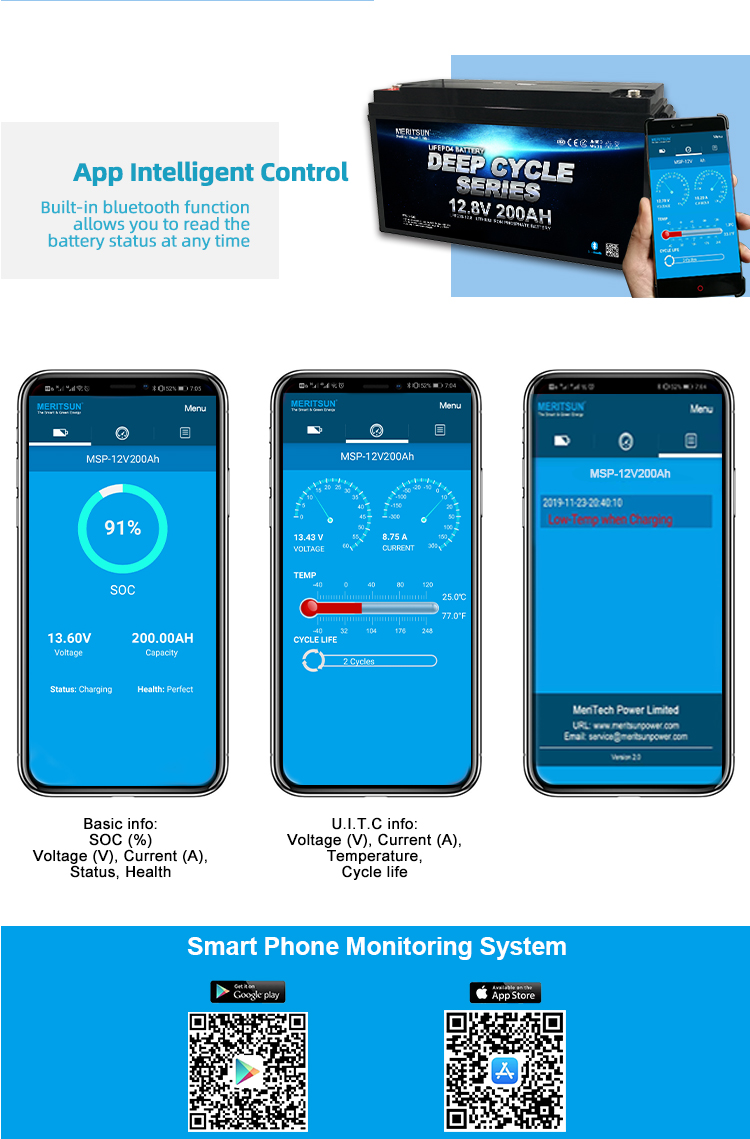

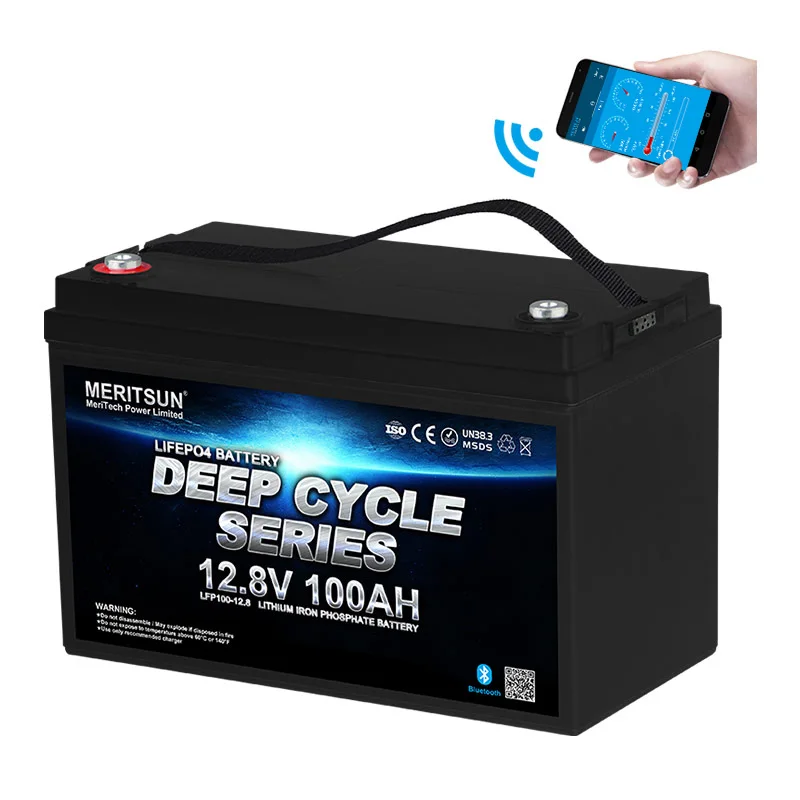

New APP Bluetooth control Cycle Life> 4000times 12V 100Ah China Guangzhou Li-ion Lipo LiFePO4 Lithium Battery Pack
New APP Bluetooth control Cycle Life> 4000times 12V 100Ah China Guangzhou Li-ion Lipo LiFePO4 Lithium Battery Pack
Electrical Characteristics | Nominal Voltage | 12.8V (12V) |
Nominal Capacity | 100Ah | |
Energy | 1280Wh | |
Internal Resistance | ≤40mΩ | |

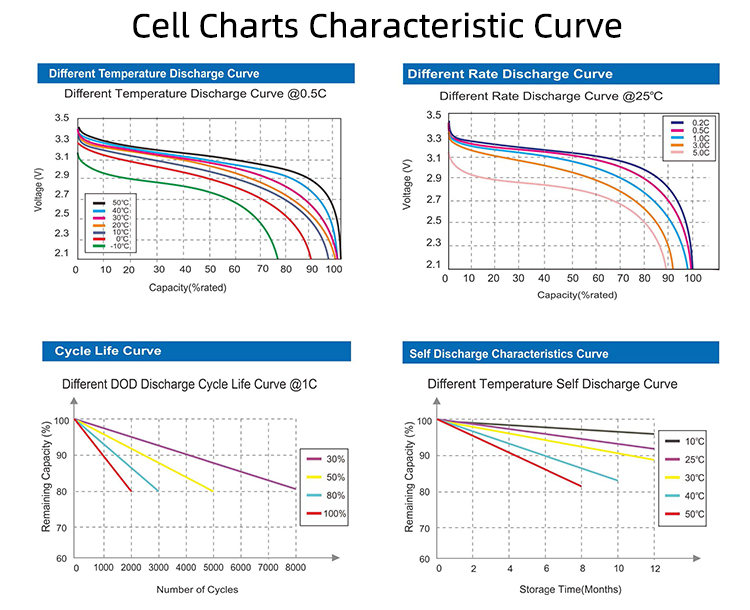

Cycle Life | >4000 cycles @1C 80%DOD | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Voltage | 14.6±0.2V |
Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) | |
Charger Current | 40A | |
Max. Charge Current | 70A | |
Charge Cut-off Voltage | 15.6V±0.2V | |
Standard Discharge | Continuous Current | 70A |
Max. Pulse Current | 100A(<10s) | |
Discharge Cut-off Voltage | 10V | |
Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
Water Dust Resistance | IP55 | |

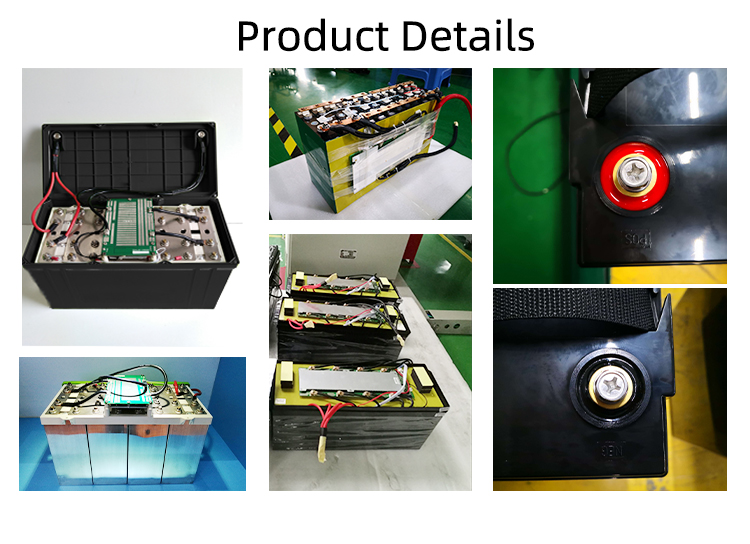

Mechanical | Cell & Method | 3.2V25Ah 4S4P |
Plastic Case | ABS | |
Dimensions (in./mm.) | 330*173*220mm | |
Weight (lbs./kg.) | 12.5kg | |
Terminal | / | |
Protocol (optional) | / | |
SOC (optional) | / |
| For more information, Please contact us now |
| You will get the best design solution for FREE !!! |
| ( Just click here , or click on the customer service on the right side) |
The Company info with regard to New APP Bluetooth control Cycle Life> 4000times 12V 100Ah China Guangzhou Li-ion Lipo LiFePO4 Lithium Battery Pack

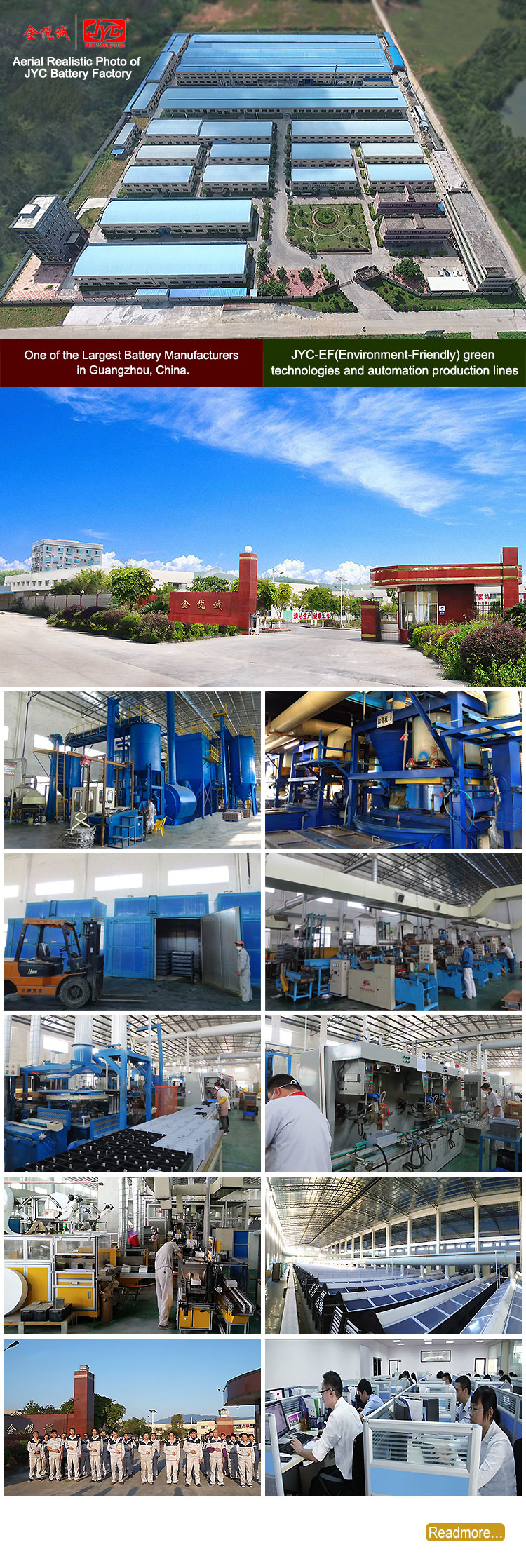

JYC Battery With a 150,000 square mete (1,614,586 Square feet) manufacturing plant finely
tuned for efficiency, strong innovation capability from our R&D team, ISO standard manufacturing processes,
effective management, and the awareness of being an industry leader in the supplier of batteries.
JYC is a leading manufacturer and exporter of Battery.
Our advanced and professional technology, complete production lines, experienced staff and strict
corporate system ensure our products quality. We pride ourselves on quality products, service and pricing,
and believe that the three aspects are equally important to ensure the long-term success of overseas
purchasing program.
1. An excellent team which is experienced with market and has strong
techni-cal capability to customize cost effective.
2. Cleaner production enterprise in Guangzhou, China.
3. OEM/ODM services backed by nearly 20 years' R&D experience.
