MERITSUN
Model:

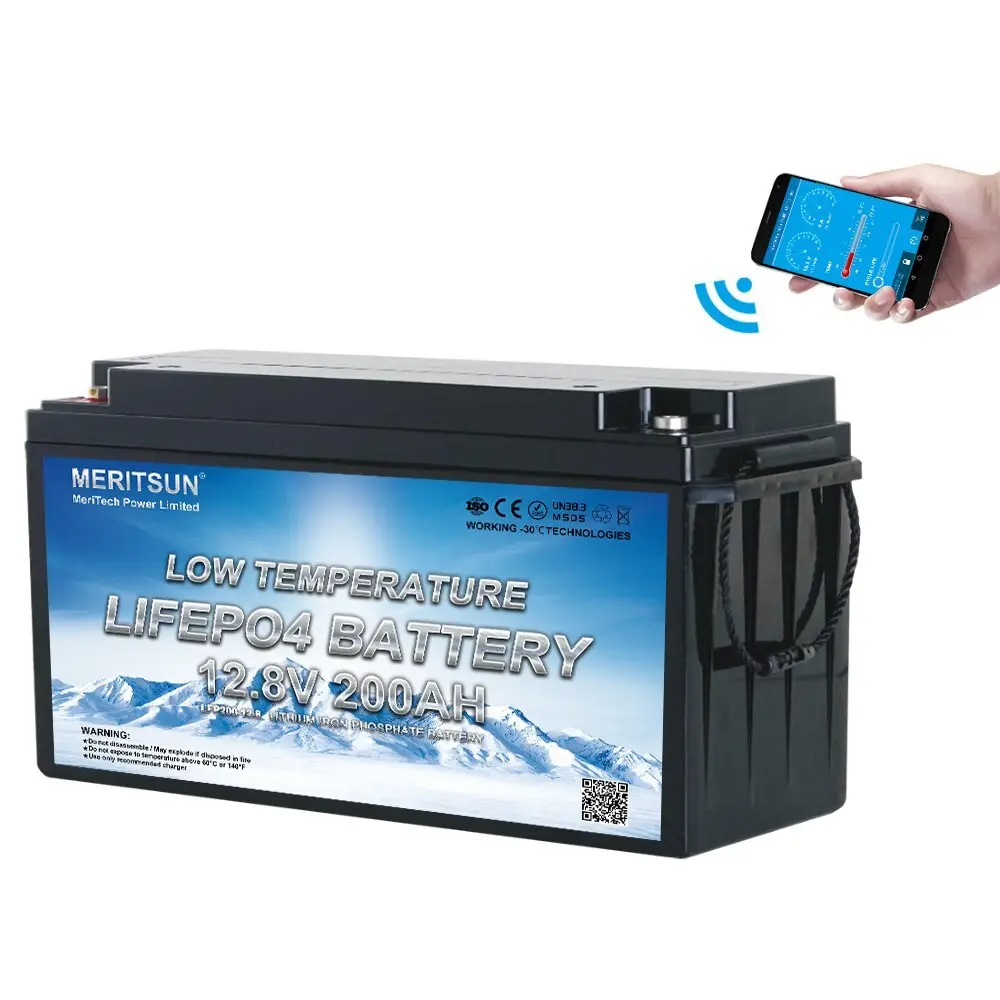

LFP200-12.8, Bluetooth Battery
Rated Voltage (V):
12V
Rated Capacity (Ah):
200AH
Supply Ability:
500000 Pieces per Month
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Company Advantages
1. MERITSUN is developed based on scientific theory. The knowledge of electrochemistry and thermodynamics has been applied in it, including electric potential difference, electrochemical polarization, the structure of electrodes, etc. It is produced in strict accordance with the UL standard
2. If people recycle this product, they can contribute a lot in reducing global warming. Because it reduces the emission of various toxin gases caused by the dumping or burning of this product. The product is produced under the principle of environmental protection
3. The product is synonymous with high quality and reliable performance.
4. The product has been tested for multiple times to be good in its performance and functionality. It is very easy to use
66 Available Coupons![MERITSUN 12]()
Company Features
1. MeriTech Power Co.,Ltd. takes the lead in industrial technology.
2. We put emphasis on customer focus. We ensure that all aspects of our company will put the customers' satisfaction first.
1. MERITSUN is developed based on scientific theory. The knowledge of electrochemistry and thermodynamics has been applied in it, including electric potential difference, electrochemical polarization, the structure of electrodes, etc. It is produced in strict accordance with the UL standard
2. If people recycle this product, they can contribute a lot in reducing global warming. Because it reduces the emission of various toxin gases caused by the dumping or burning of this product. The product is produced under the principle of environmental protection
3. The product is synonymous with high quality and reliable performance.
4. The product has been tested for multiple times to be good in its performance and functionality. It is very easy to use
Electrica Characteristics | Nominal Voltage | 12.8V | ||||
| Nominal Capacity | 200Ah | |||||
| Energy | 2560Wh | |||||
| Internal Resistance | ≤20mΩ | |||||
| Cycle Life | ≥4000 cycles @1C 100%DOD | |||||
| Months Self Discharge | <3% | |||||
| Efficiency of Charge | 100% @0.5C | |||||
| Efficiency of Discharge | 96~99% @1C | |||||
| Standard Charge | Charge Voltage | 14.6±0.2V | ||||
| Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) | |||||
| Charger Current | 80A | |||||
| Max. Charge Current | 100A | |||||
| Charge Cut-off Voltage | 14.6±0.2V | |||||
| Standard Discharge | Continuous Current | 100A | ||||
| Max. Pulse Current | 300A(<10s) | |||||
| Discharge Cut-off Voltage | 10.5V | |||||
| Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity | ||||
| Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |||||
| Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |||||
| Water Dust Resistance | IP56 | |||||
| Mechanical | Cell & Method | 26650 4S36P | ||||
| Plastic Case | ABS | |||||
| Dimensions (in./mm.) | 483*170*241mm Customized | |||||
| Weight (lbs./kg.) | 25kg | |||||
| Terminal | T11 | |||||
| Protocol (optional) | SMBus/RS485/RS232 | |||||
| SOC (optional) | Bluetooth | |||||
66 Available Coupons
Company Features
1. MeriTech Power Co.,Ltd. takes the lead in industrial technology.
2. We put emphasis on customer focus. We ensure that all aspects of our company will put the customers' satisfaction first.
