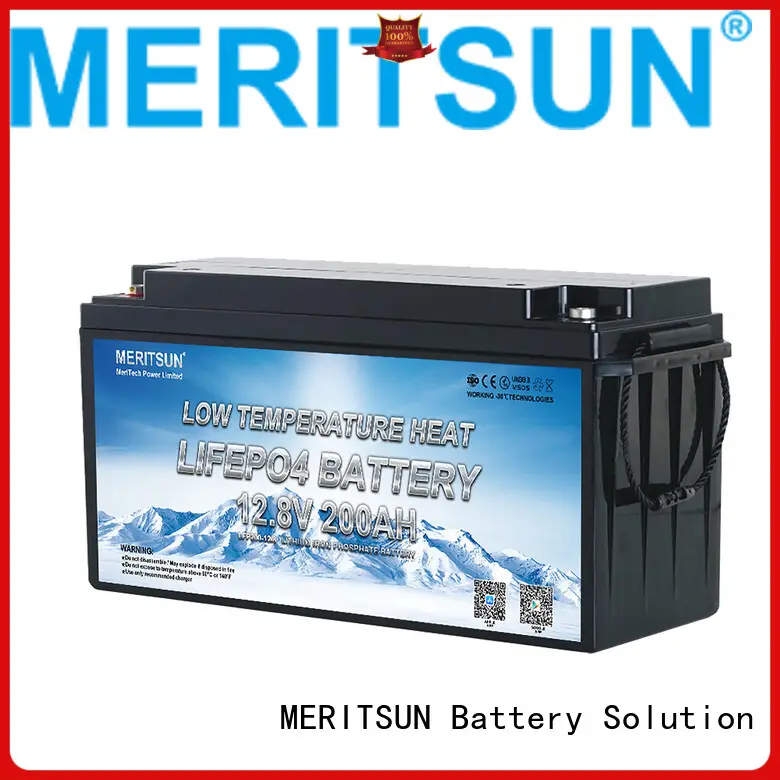

MERITSUN wholesale low temperature lithium battery for business for streetlight
Model:
LFP200-12.8, Bluetooth Battery
Rated Voltage (V):
12V
Rated Capacity (Ah):
200AH
Supply Ability:
500000 Pieces per Month
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Approx Dimension (mm):
483*170*241
Approx Weight (Kg):
25kg
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Product Details
With a focus on quality, Established in 1999, MeriTech has 18 years of experience in providing solutions services in energy storage application industry. We dedicated to designing and manufacturing of LiFePO4 and lithium cells and integrated battery packs for energy system. pays great attention to the details of battery energy storage system.Closely following the market trend, Established in 1999, MeriTech has 18 years of experience in providing solutions services in energy storage application industry. We dedicated to designing and manufacturing of LiFePO4 and lithium cells and integrated battery packs for energy system. uses advanced production equipment and manufacturing technology to produce battery energy storage system. The product receives favors from the majority of customers for the high quality and favorable price.
Application Scope
battery solutions is mainly used in the following industries and fields.Established in 1999, MeriTech has 18 years of experience in providing solutions services in energy storage application industry. We dedicated to designing and manufacturing of LiFePO4 and lithium cells and integrated battery packs for energy system. is committed to providing customers with high-quality battery solutions as well as one-stop, comprehensive and efficient solutions.
1. MERITSUN li-ion battery at low temperature will go through a thorough quality inspection. Its appearance will be checked to make sure no scratches, stains, cracks, leakage, and any or all flaws exist.
2. The product is tested by different standards testing institutions at home and abroad.
3. With the advanced equipment, we concentrate on the quality of the products.
Electrica Characteristics | Nominal Voltage | 12.8V | ||||
| Nominal Capacity | 200Ah | |||||
| Energy | 2560Wh | |||||
| Internal Resistance | ≤20mΩ | |||||
| Cycle Life | ≥4000 cycles @1C 100%DOD | |||||
| Months Self Discharge | <3% | |||||
| Efficiency of Charge | 100% @0.5C | |||||
| Efficiency of Discharge | 96~99% @1C | |||||
| Standard Charge | Charge Voltage | 14.6±0.2V | ||||
| Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) | |||||
| Charger Current | 80A | |||||
| Max. Charge Current | 100A | |||||
| Charge Cut-off Voltage | 14.6±0.2V | |||||
| Standard Discharge | Continuous Current | 100A | ||||
| Max. Pulse Current | 300A(<10s) | |||||
| Discharge Cut-off Voltage | 10.5V | |||||
| Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity | ||||
| Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |||||
| Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |||||
| Water Dust Resistance | IP56 | |||||
| Mechanical | Cell & Method | 26650 4S36P | ||||
| Plastic Case | ABS | |||||
| Dimensions (in./mm.) | 483*170*241mm Customized | |||||
| Weight (lbs./kg.) | 25kg | |||||
| Terminal | T11 | |||||
| Protocol (optional) | SMBus/RS485/RS232 | |||||
| SOC (optional) | Bluetooth | |||||
Company Features
1. MeriTech Power Co.,Ltd. is a well-known manufacturer of low temperature lithium battery based in China. We are a preferred manufacturing choice for brands and consumers.
2. Our factory is blessed with a full line of cutting-edge production facilities and testing equipment. They are extremely useful in enhancing productivity and product quality, which gives us more confidence in providing clients quality products.
3. MeriTech Power Co.,Ltd. will keep making progress, constantly challenge itself and provide better and better services for customers. Welcome to visit our factory! li-ion battery at low temperature is a key component of the core competitiveness of a company and the driving force for its growth. Welcome to visit our factory!
