MERITSUN telecom energy storage devices for commercial
1. MERITSUN energy storage devices is guaranteed to cause no environmental pollution. Mercury ingredient in the battery cells is strictly controlled and the ingredient test shows that mercury ingredient is in a minimum amount of 0.0001%.
2. This product runs clean and stays reasonably cool. Most sealed cells have no vents, and run quietly and do not vibrate.
3. The product features low internal impedance. The surface of its conductive substrate has been treated to enhance its static conductivity and collect microcurrent of the active material.
4. Only ensuring the work quality of each phrase, the overall quality of electrical energy storage systems can be guaranteed.
Electrical Characteristics | Model | 48V 50Ah (LiFePO4 Lthium iron Phosphate Battery) |
| Energy | 2400Wh | |
| Internal Resistance | ≤110mΩ | |
| Cycle Life | >2000 cycles @1.0C 100%DOD | |
| Months Self Discharge | <3% | |
| Standard Charge | Charge Voltage | 54.0±0.1V |
| Charge Mode | 0.2C to 54.0V, then 54.0V,charge current to 0.02C (CC/CV) | |
| Charger Current | 10A (Customizable) | |
| Max. Charge Current | 50A (Customizable) | |
| Charge Cut-off Voltage | 57.6±0.2V | |
| Standard Discharge | Continuous Current | 10A (Customizable) |
| Max continuous discharge current | 50A (Customizable) | |
| Discharge Cut-off Voltage | 37.5V | |
| Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32℉ to 113℉) @60±25% Relative Humidity |
| Discharge Temperature | -20 ℃ to 60 ℃ (-4℉ to 140℉) @60±25% Relative Humidity | |
| Storage Temperature | 0 ℃ to 40 ℃ (32℉ to 104℉) @60±25% Relative Humidity | |
| Mechanical | Cell & Method | LFP027135180-50Ah 3.2V50Ah 15S1P |
| Shell material | iron | |
| Dimensions | 442*385*132 mm | |
| Weight (lbs./kg.) | Approx: 30kg (66.14 Ibs) | |
| Gravimetric specific energy | 80WH/KG |

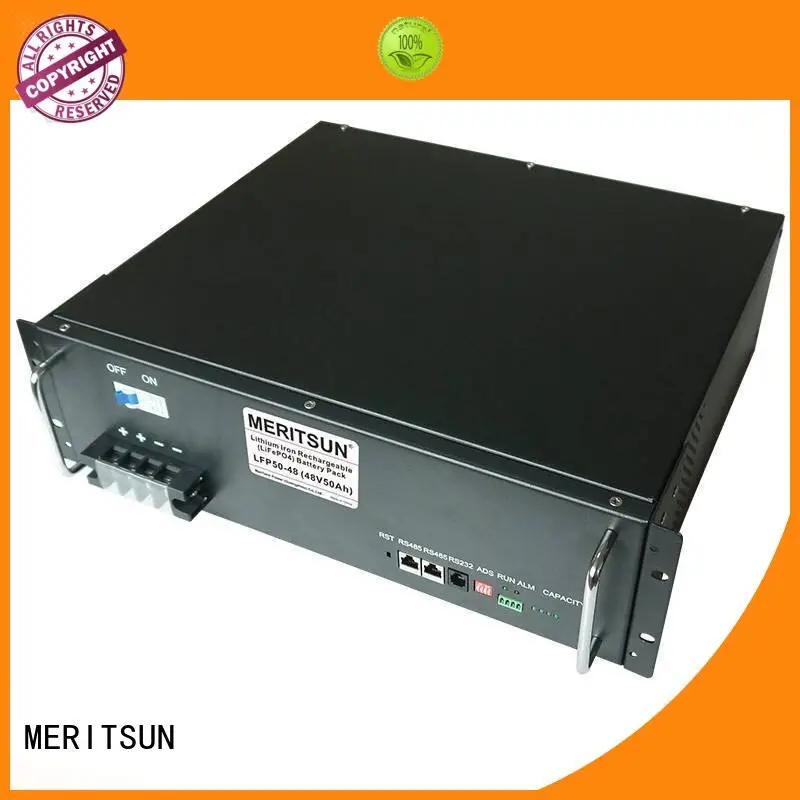

The ESS Energy Storage System 48V 50Ah LiFePO4 Battery
Internal structure, please refer to:
System Diagram of Lithium Module and BMS
OBM / OEM / ODM Service
The OBM / OEM / ODM Service with regard to ESS Energy Storage System 48V 50Ah LiFePO4 Lithium iron Phosphate Battery
MeriTech is focusing on new energy, Global market changes of battery, Through market research to constant understand customers needs in order to build a perfect service network,Own many experienced engineers and technicians, to provide comprehensive, in-depth, quickly and attentive service for you. We could response your request immediately.
Part of Worldwide Partners
We Treasure Your Trust
on us by high-quality products with honesty and professional service
MeriTech Power Specialist will estimate your power needs, identify potential problem areas and recommend a cost-effective solution. What you'll get:
1. The global optimum acquisition price for any required hardware
2. Installation considerations
3. Ongoing support options
Professional Certification
MeriTech Power Limited has：
1. An excellent team which is experienced with market and has strong techni-cal capability to customize cost effective.
2. Cleaner production enterprise in Guangzhou, China.
3. OEM/ODM services backed by nearly 20 years' R&D experience.
Technology info
The Technology info with regard to ESS Energy Storage System 48V 50Ah LiFePO4 Lithium iron Phosphate Battery
The Factors of Quality Guarantee for Solar Street Light Rechargeable Lipo Lithium ion Battery
(First-class quality management system, Professional technical form.)
MERITSUN Lithium Battery BMS / PCB / PCM
Li-ion cells should always be used with a protection circuit to prevent the cell from over charging or over dis-charging. Choosing the correct circuit and applying it appropriately is vital to the longevity your batteries and your own safety. MeriTech test each Cells and BMS/PCB/PCM before manufacturing and promise it is functional and safe.
BMS / PCB / PCM is the "heart" of Lithium battery pack. BMS (Battery Management System) is any electronic system that manages a rechargeable battery (cell or battery pack), such as by monitoring its state, calculating secondary data, reporting that data, protecting the battery, controlling its environment, and balancing it.
Packaging info
The Packaging with regard to ESS Energy Storage System 48V 50Ah LiFePO4 Lithium iron Phosphate Battery
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. MeriTech Power Co.,Ltd. is a strong company that focuses on product research, state-of-the-art design, and professional manufacturing services. Our main product is energy storage devices.
2. MeriTech Power Co.,Ltd. utilizes global advanced technology to manufacture electrical energy storage systems .
3. We firmly believe that high-quality and professional service will eventually pay off Get more info!. Featuring humanization, the company is working hard to create an environment for the employees where is safe and easy to work in, such as ensuring all the production machines are safe to operate. Get more info! We strive to pursue excellence. We set high personal and company standards and then constantly try to surpass them. That is how we deliver on our commitment to Innovation, Design, and Sustainability. Get more info! MeriTech Power Co.,Ltd. faithfully hopes to establish partnerships with customers around the world. Get more info!
