Product Comparison
battery energy storage system, manufactured based on high-quality materials and advanced technology, has excellent quality and favorable price. It is a trustworthy product which receives recognition and support in the market.Established in 1999, MeriTech has 18 years of experience in providing solutions services in energy storage application industry. We dedicated to designing and manufacturing of LiFePO4 and lithium cells and integrated battery packs for energy system. guarantees battery solutions to be high-quality by carrying out highly standardized production. Compared with other products in the same category, it has the following advantages.
Application Scope
With wide application, battery manufacturing companies can be used in the following aspects.Established in 1999, MeriTech has 18 years of experience in providing solutions services in energy storage application industry. We dedicated to designing and manufacturing of LiFePO4 and lithium cells and integrated battery packs for energy system. insists on providing customers with comprehensive solutions based on their actual needs, so as to help them achieve long-term success.
Company Advantages1. MERITSUN power storage devices is developed by the experienced in-house R&D team. Various parameters relating to the performance of battery have been taken into consideration by our technicians, including discharge, open-circuit voltage, capacity, and internal resistance.
2. The product is highly hard-wearing. As it is made of abrasion-resistant materials, it's built to withstand harsh wearing conditions.
3. It is highly resistant to yellowing. During the treatment of fabrics, the treating temperature is reasonably controlled to make sure the dying agent is not going to occur oxidative chemical degradation which leads to yellowing.
4. The product is widely praised among users for its good characteristics and has a high market application potential.
5. The product is highly recommended by users and has great market potential.
![MERITSUN telecom commercial energy storage systems customized for residential 14]()

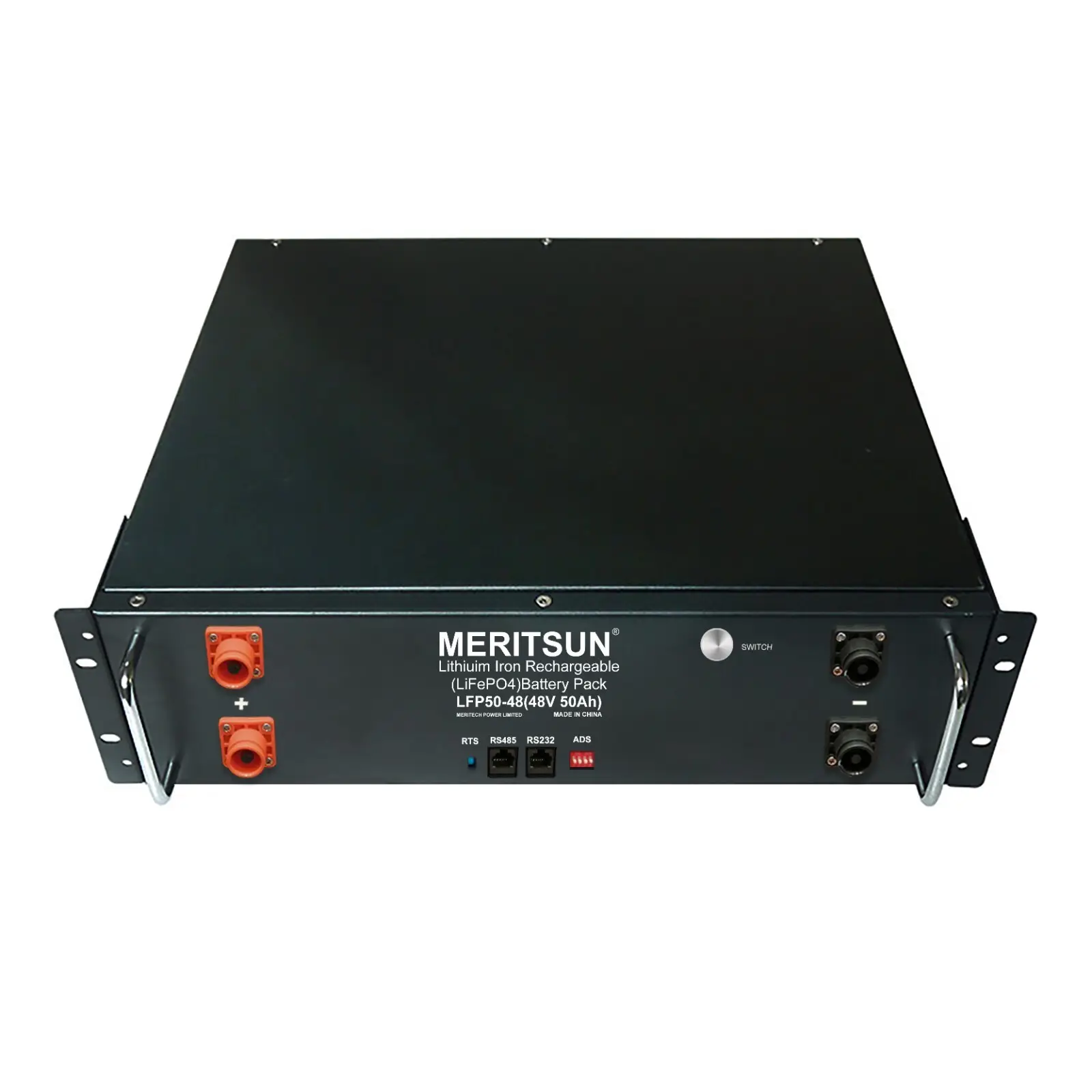

Electrical Characteristics | Model | 48V 50Ah (LiFePO4 Lthium iron Phosphate Battery) |
Energy | 2400Wh |
Internal Resistance | ≤30mΩ |
Cycle Life | ≥2000 cycles @1.0C 100%DOD |
Months Self Discharge | <3% |
Standard Charge | Charge Voltage | 53.2~54V |
Charge Mode | 0.2C to 54V, then 54V,charge current to 0.02C (CC/CV) |
Charger Current | 10A |
Max. Charge Current | 50A |
Charge Cut-off Voltage | 57.6±0.2V |
Standard Discharge | Continuous Current | 10A |
Max continuous discharge current | 50A |
Discharge Cut-off Voltage | 37.5V |
Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32℉ to 113℉) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4℉ to 140℉) @60±25% Relative Humidity |
Storage Temperature | 0 ℃ to 40 ℃ (32℉ to 104℉) @60±25% Relative Humidity |
Mechanical | Cell & Method | 3.2V50Ah 15S1P |
Shell material | iron |
Dimensions | 442*385*132mm |
Weight (lbs./kg.) | Approx: 30kg |
Gravimetric specific energy | 90.5WH/KG |
![MERITSUN telecom commercial energy storage systems customized for residential 15]()
![MERITSUN telecom commercial energy storage systems customized for residential 16]()
The Technology info with regard to 48V 100Ah ESS Energy Storage System LiFePO4 Lithium iron Phosphate Battery
The Factors of Quality Guarantee for Solar Street Light Rechargeable Lipo Lithium ion Battery
(First-class quality management system, Professional technical form.)
![MERITSUN telecom commercial energy storage systems customized for residential 17]()
![MERITSUN telecom commercial energy storage systems customized for residential 18]()

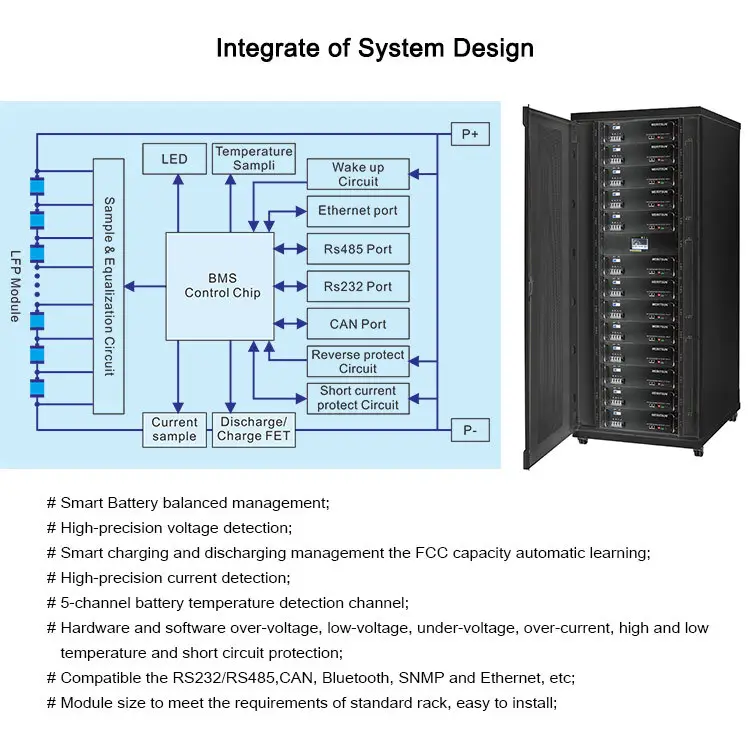

MERITSUN Lithium Battery BMS / PCB / PCM
Li-ion cells should always be used with a protection circuit to prevent the cell from over charging or over dis-charging. Choosing the correct circuit and applying it appropriately is vital to the longevity your batteries and your own safety. MeriTech test each Cells and BMS/PCB/PCM before manufacturing and promise it is functional and safe.
BMS / PCB / PCM is the "heart" of Lithium battery pack. BMS (Battery Management System) is any electronic system that manages a rechargeable battery (cell or battery pack), such as by monitoring its state, calculating secondary data, reporting that data, protecting the battery, controlling its environment, and balancing it.
![MERITSUN telecom commercial energy storage systems customized for residential 19]()
![MERITSUN telecom commercial energy storage systems customized for residential 20]()
![MERITSUN telecom commercial energy storage systems customized for residential 21]()
![MERITSUN telecom commercial energy storage systems customized for residential 22]()
![MERITSUN telecom commercial energy storage systems customized for residential 23]()
![MERITSUN telecom commercial energy storage systems customized for residential 24]()
Company Features1. MeriTech Power Co.,Ltd. has become the biggest commercial energy storage systems manufacturer with the highest production capacity in China.
2. With top raw material and experienced workers, battery energy storage is produced with high quality.
3. We pledge to put both business success and environment protection as our priority. We assume social responsibility during production to reduce carbon footprint as much as possible. Our company strives to minimize the adverse environmental impact of our business operations. We work to manage the use of utilities responsibly, reduce the waste we generate, and motivate our employees to find innovative solutions to environmental problems. We launch various sustainable plans to achieve a balance between economic growth and environment friendlessness. For instance, we recycle or handled unpreventable and harmful wastes complying with relevant standards prior to release or transfer. Our ideal is to be the world's top supplier in this industry. We will put more investment in improving our R&D capabilities, and grow stronger relying on distinctive products we produce.
