MERITSUN super safe battery energy storage system customized for commercial
1. MERITSUN battery energy is carefully designed by our professionals.
2. Professional testing allows battery energy storage system to be optimal.
3. Our QC team follows international quality standards to check the product quality.
4. The product is not easy to break or crack. People can even put it in the dishwasher without the worry that the dishwasher would break it up.
5. The product helps create an effective and beautiful lighting environment, brings a contemporary look to any space.
Electrical Characteristics | Model | 48V 50Ah (LiFePO4 Lthium iron Phosphate Battery) |
| Energy | 2400Wh | |
| Internal Resistance | ≤110mΩ | |
| Cycle Life | >2000 cycles @1.0C 100%DOD | |
| Months Self Discharge | <3% | |
| Standard Charge | Charge Voltage | 54.0±0.1V |
| Charge Mode | 0.2C to 54.0V, then 54.0V,charge current to 0.02C (CC/CV) | |
| Charger Current | 10A (Customizable) | |
| Max. Charge Current | 50A (Customizable) | |
| Charge Cut-off Voltage | 57.6±0.2V | |
| Standard Discharge | Continuous Current | 10A (Customizable) |
| Max continuous discharge current | 50A (Customizable) | |
| Discharge Cut-off Voltage | 37.5V | |
| Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32℉ to 113℉) @60±25% Relative Humidity |
| Discharge Temperature | -20 ℃ to 60 ℃ (-4℉ to 140℉) @60±25% Relative Humidity | |
| Storage Temperature | 0 ℃ to 40 ℃ (32℉ to 104℉) @60±25% Relative Humidity | |
| Mechanical | Cell & Method | LFP027135180-50Ah 3.2V50Ah 15S1P |
| Shell material | iron | |
| Dimensions | 442*385*132 mm | |
| Weight (lbs./kg.) | Approx: 30kg (66.14 Ibs) | |
| Gravimetric specific energy | 80WH/KG |

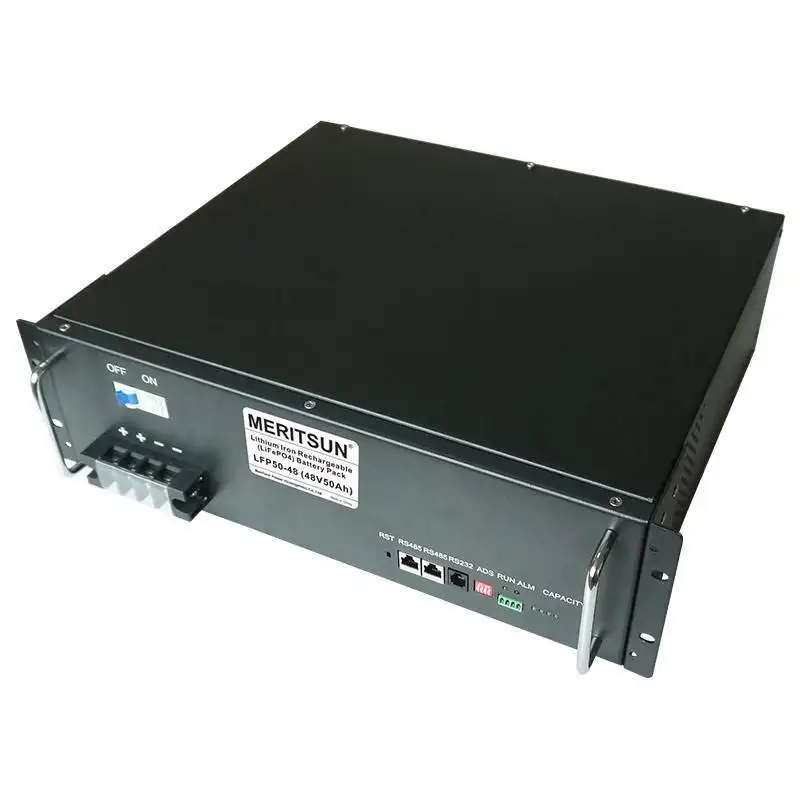

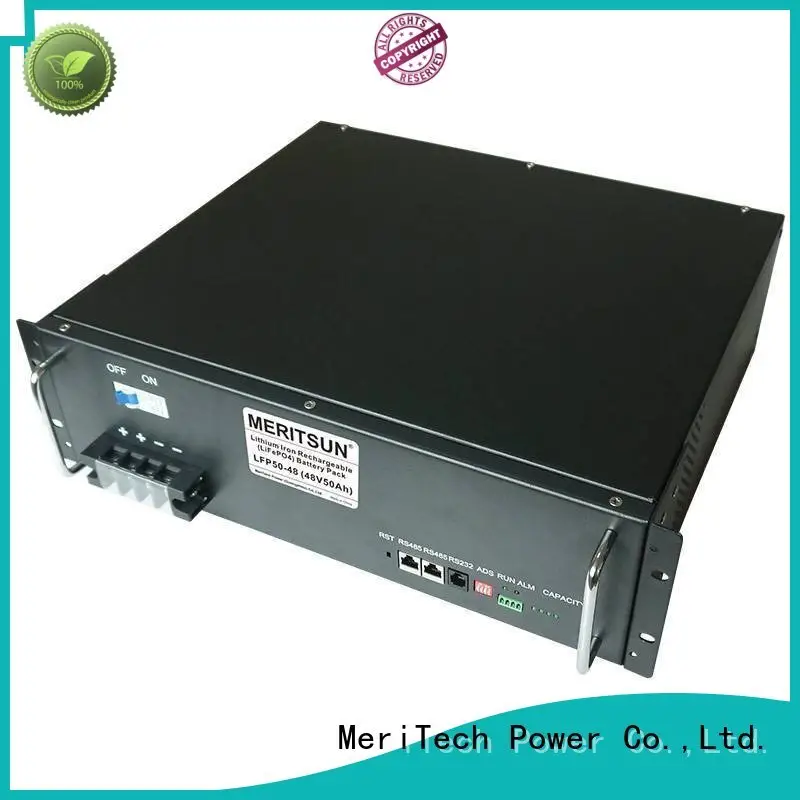

The ESS Energy Storage System 48V 50Ah LiFePO4 Battery
Internal structure, please refer to:
System Diagram of Lithium Module and BMS
The Factors of Quality Guarantee for Solar Street Light Rechargeable Lipo Lithium ion Battery
(First-class quality management system, Professional technical form.)
MERITSUN Lithium Battery BMS / PCB / PCM
Li-ion cells should always be used with a protection circuit to prevent the cell from over charging or over dis-charging. Choosing the correct circuit and applying it appropriately is vital to the longevity your batteries and your own safety. MeriTech test each Cells and BMS/PCB/PCM before manufacturing and promise it is functional and safe.
BMS / PCB / PCM is the "heart" of Lithium battery pack. BMS (Battery Management System) is any electronic system that manages a rechargeable battery (cell or battery pack), such as by monitoring its state, calculating secondary data, reporting that data, protecting the battery, controlling its environment, and balancing it.
MeriTech is focusing on new energy, Global market changes of battery, Through market research to constant understand customers needs in order to build a perfect service network,Own many experienced engineers and technicians, to provide comprehensive, in-depth, quickly and attentive service for you. We could response your request immediately.
MeriTech Power Specialist will estimate your power needs, identify potential problem areas and recommend a cost-effective solution. What you'll get:
1. The global optimum acquisition price for any required hardware
2. Installation considerations
3. Ongoing support options
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. MeriTech Power Co.,Ltd. is a high-tech firm which engages in research, development and production of full range of battery energy storage system .
2. MeriTech Power Co.,Ltd. is introducing advanced equipment and technology to provide quality products for widespread customers.
3. MERITSUN plans to be a worldwide competitive manufacturer. MeriTech Power Co.,Ltd. perseveres in urging the office cooperation culture. Ask online! The brand positioning of the MERITSUN brand is to enable each team to serve customers with professional skills. Ask online! MeriTech Power Co.,Ltd. aims to be the top leader in the battery energy storage field. Ask online!
