MERITSUN storage battery systems factory direct supply for base transceiver station
- With a focus on customers, Established in 1999, MeriTech has 18 years of experience in providing solutions services in energy storage application industry. We dedicated to designing and manufacturing of LiFePO4 and lithium cells and integrated battery packs for energy system. strives to meet their needs and provide one-stop professional and quality services wholeheartedly.
1. In order to ensure users' safety, MERITSUN electricity storage is strictly tested and has been certified under many international standards including FCC, CCC, CE, and RoHS.
2. The product features excellent dimensional stability. It offers excellent accuracy and provides the stability of shape under extreme conditions.
3. The product is able to provide better traction to the feet. The compounded materials used in it has excellent slip resistance.
4. OEM/ODM service are available for storage battery systems .

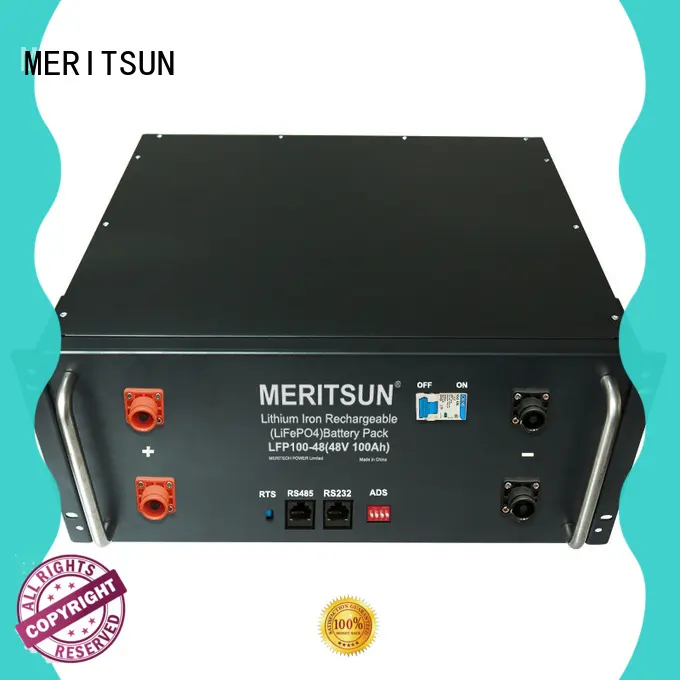

Electrical Characteristics | Model | 48V 100Ah (LiFePO4 Lthium iron Phosphate Battery) | ||||
| Energy | 4800Wh | |||||
| Internal Resistance | ≤80mΩ | |||||
| Cycle Life | ≥4000 cycles @1.0C 100%DOD | |||||
| Months Self Discharge | <3% | |||||
| Months Self Discharge | Charge Voltage | 54.0±0.1V | ||||
| Charge Mode | 0.2C to 54.0V, then 54.0V,charge current to 0.02C (CC/CV) | |||||
| Charger Current | 20A (Customizable) | |||||
| Max. Charge Current | 50A (Customizable) | |||||
| Charge Cut-off Voltage | 57.6±0.2V | |||||
| Standard Discharge | Continuous Current | 20A (Customizable) | ||||
| Max continuous discharge current | 50A (Customizable) | |||||
| Discharge Cut-off Voltage | 37.5V | |||||
| Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32℉ to 113℉) @60±25% Relative Humidity | ||||
| Discharge Temperature | -20 ℃ to 60 ℃ (-4℉ to 140℉) @60±25% Relative Humidity | |||||
| Storage Temperature | 0 ℃ to 40 ℃ (32℉ to 104℉) @60±25% Relative Humidity | |||||
Mechanical | Cell & Method | LFP027135180-50Ah 3.2V50Ah 15S2P | ||||
| Shell material | iron | |||||
| Dimensions | 442*400*221mm | |||||
| Weight (lbs./kg.) | Approx: 60kg (132.27 Ibs) | |||||
| Gravimetric specific energy | 80WH/KG | |||||
Technology info
The Technology info with regard to 48V 100Ah ESS Energy Storage System LiFePO4 Lithium iron Phosphate Battery
The Factors of Quality Guarantee for Solar Street Light Rechargeable Lipo Lithium ion Battery
(First-class quality management system, Professional technical form.)
MERITSUN Lithium Battery BMS / PCB / PCM
Li-ion cells should always be used with a protection circuit to prevent the cell from over charging or over dis-charging. Choosing the correct circuit and applying it appropriately is vital to the longevity your batteries and your own safety. MeriTech test each Cells and BMS/PCB/PCM before manufacturing and promise it is functional and safe.
BMS / PCB / PCM is the "heart" of Lithium battery pack. BMS (Battery Management System) is any electronic system that manages a rechargeable battery (cell or battery pack), such as by monitoring its state, calculating secondary data, reporting that data, protecting the battery, controlling its environment, and balancing it.
Company Features
1. As one of the most successful storage battery systems supplier, MERITSUN still strives to achieve more progress.
2. The factory has a large scale modernized factory building. The workshop is built based on a professional floor plan and is built strictly according to the regulations for the standard workshop in China. In this way, the factory can provide a standardized production condition.
3. MERITSUN has been striving to achieve to be the leading residential energy storage systems manufacturer. Inquiry! All of our staff must know our ess energy storage system well before they start their jobs. Inquiry!
