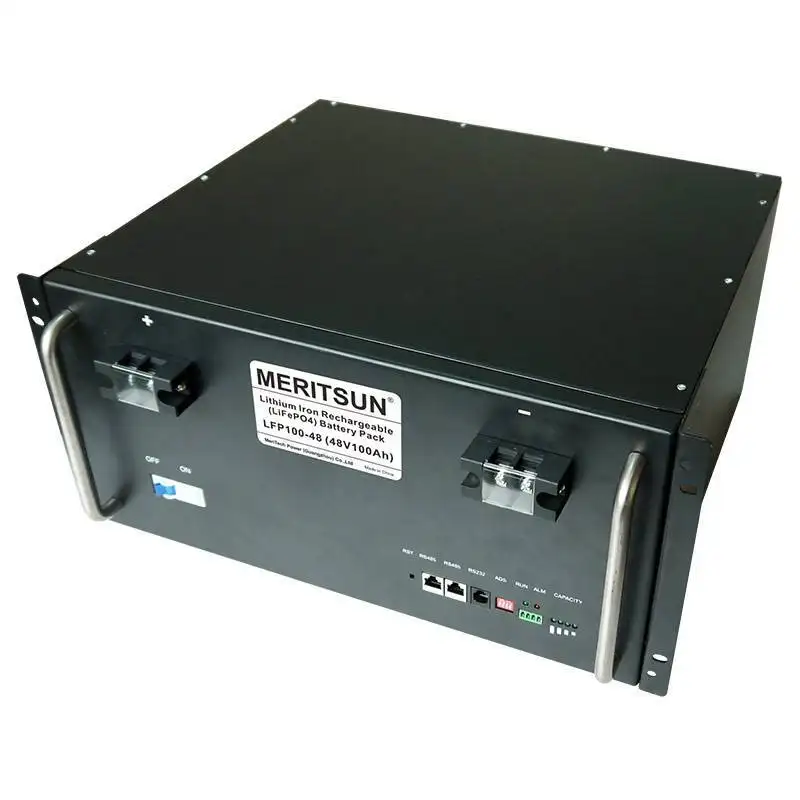

MERITSUN storage battery customized for commercial
1. The inspections for MERITSUN storage battery fabrics have been conducted. The fabrics have been checked with regard to fabric softness, fabric width, fabric shrinkage, and knitting defects. Made of reliable chemical substances, the product is of superior safety
2. This product caters the diverse needs of the customers. It can be used within a wider temperature range from -20℃ to 65℃
3. The quality inspection highly meets the international standards.
Electrical Characteristics | Model | 48V 100Ah (LiFePO4 Lthium iron Phosphate Battery) |
| Energy | 4800Wh | |
| Internal Resistance | ≤80mΩ | |
| Cycle Life | >2000 cycles @1.0C 100%DOD | |
| Months Self Discharge | <3% | |
| Standard Charge | Charge Voltage | 54.0±0.1V |
| Charge Mode | 0.2C to 54.0V, then 54.0V,charge current to 0.02C (CC/CV) | |
| Charger Current | 20A (Customizable) | |
| Max. Charge Current | 50A (Customizable) | |
| Charge Cut-off Voltage | 57.6±0.2V | |
| Standard Discharge | Continuous Current | 20A (Customizable) |
| Max continuous discharge current | 50A (Customizable) | |
| Discharge Cut-off Voltage | 37.5V | |
| Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32℉ to 113℉) @60±25% Relative Humidity |
| Discharge Temperature | -20 ℃ to 60 ℃ (-4℉ to 140℉) @60±25% Relative Humidity | |
| Storage Temperature | 0 ℃ to 40 ℃ (32℉ to 104℉) @60±25% Relative Humidity | |
| Mechanical | Cell & Method | LFP027135180-50Ah 3.2V50Ah 15S2P |
| Shell material | iron | |
| Dimensions | 442*400*221mm | |
| Weight (lbs./kg.) | Approx: 60kg (132.27 Ibs) | |
| Gravimetric specific energy | 80WH/KG |
The 48V 100Ah ESS Energy Storage System LiFePO4 Battery
Internal structure, please refer to:
System Diagram of Lithium Module and BMS
Technology info
The Technology info with regard to 48V 100Ah ESS Energy Storage System LiFePO4 Lithium iron Phosphate Battery
The Factors of Quality Guarantee for Solar Street Light Rechargeable Lipo Lithium ion Battery
(First-class quality management system, Professional technical form.)
MERITSUN Lithium Battery BMS / PCB / PCM
Li-ion cells should always be used with a protection circuit to prevent the cell from over charging or over dis-charging. Choosing the correct circuit and applying it appropriately is vital to the longevity your batteries and your own safety. MeriTech test each Cells and BMS/PCB/PCM before manufacturing and promise it is functional and safe.
BMS / PCB / PCM is the "heart" of Lithium battery pack. BMS (Battery Management System) is any electronic system that manages a rechargeable battery (cell or battery pack), such as by monitoring its state, calculating secondary data, reporting that data, protecting the battery, controlling its environment, and balancing it.
Packaging info
MeriTech is focusing on new energy, Global market changes of battery, Through market research to constant understand customers needs in order to build a perfect service network,Own many experienced engineers and technicians, to provide comprehensive, in-depth, quickly and attentive service for you. We could response your request immediately.
MeriTech Power Specialist will estimate your power needs, identify potential problem areas and recommend a cost-effective solution. What you'll get:
1. The global optimum acquisition price for any required hardware
2. Installation considerations
3. Ongoing support options
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. MeriTech Power Co.,Ltd., incorporated years ago, is a developer, manufacturer, and supplier of battery energy . We have earned a reputation through years of accumulated expertise.
2. The factory has built a well-established production control management system. This system, recognized by an authoritative organization, requires all of the raw materials and production procedures to be carried out complying with the International standardization management.
3. We recognize that water management is an essential part of ongoing risk mitigation and environmental impact reduction strategies. We are committed to measuring, tracking and continually improving our water stewardship.
