MERITSUN stable lifepo4 battery 12v 200ah manufacturer for home use
1. The random inspection will be carried out on MERITSUN 24v lifepo4 battery pack production. Its parameters and specifications will be strictly scrutinized based on the sample or part approved sheet, so as to make sure it meets the quality requirements in the battery industry.
2. lifepo4 battery 12v 200ah is described 24v lifepo4 battery pack by our clients.
3. The complete sales network of MERITSUN also helps it to be a leading lifepo4 battery 12v 200ah supplier.
4. As a responsible lifepo4 battery 12v 200ah manufacturer, MeriTech Power Co.,Ltd. pays more attention to the quality assurance of the product.

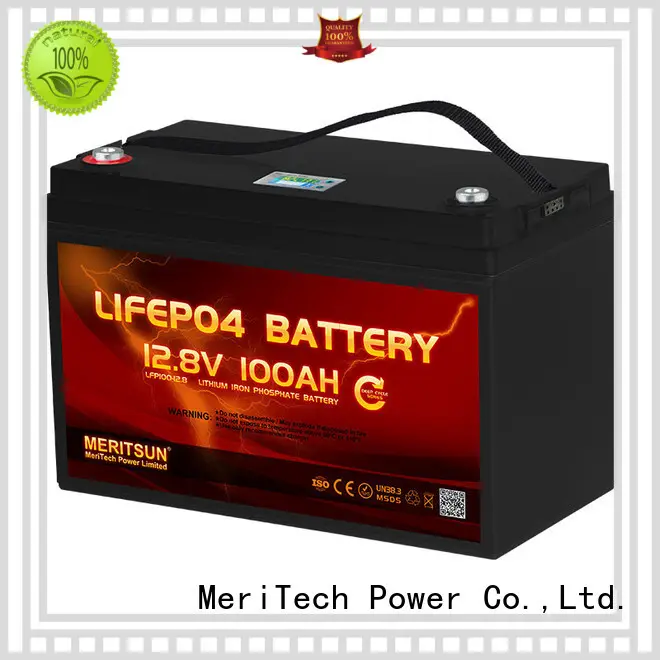

Electrical Characteristics | Nominal Voltage | 12.8V (12V) |
Nominal Capacity | 100Ah | |
Energy | 1280Wh | |
Internal Resistance | ≤90mΩ | |
Cycle Life | >4000 cycles @1C 80%DOD | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Voltage | 14.6±0.2V |
Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) | |
Charger Current | 40A | |
Max. Charge Current | 70A | |
Charge Cut-off Voltage | 15.6V±0.2V | |
Standard Discharge | Continuous Current | 70A |
Max. Pulse Current | 100A(<10s) | |
Discharge Cut-off Voltage | 10V | |
Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
Water Dust Resistance | IP55 | |
Mechanical | Cell & Method | 3.2V25Ah 4S4P |
Plastic Case | ABS | |
Dimensions (in./mm.) | 330*173*220mm | |
Weight (lbs./kg.) | 13.5kg | |
Terminal | / | |
Protocol (optional) | / | |
LCD (optional) | Yes |
MeriTech is focusing on new energy, Global market changes of battery, Through market research to constant understand customers needs in order to build a perfect service network,Own many experienced engineers and technicians, to provide comprehensive, in-depth, quickly and attentive service for you. We could response your request immediately.
MeriTech Power Specialist will estimate your power needs, identify potential problem areas and recommend a cost-effective solution. What you'll get:
1. The global optimum acquisition price for any required hardware
2. Installation considerations
3. Ongoing support options
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. In order to keep a leading of profession position, MeriTech Power Co.,Ltd. will continuously outstrip ourselves.

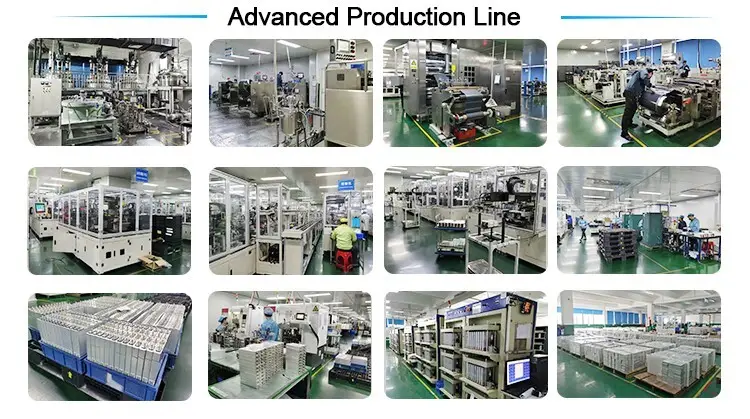

2. We have put ongoing investment in the latest production facilities. This directly contributes to improving the accuracy and constant quality of products and meeting the needs of our customers.
3. MeriTech Power Co.,Ltd. believes that, with innovation and 24v lifepo4 battery pack , we will come to a promising future. Inquire! MeriTech Power Co.,Ltd. values sustainable business mode through a balance development of economic, social and environmental factors. Inquire! MeriTech Power Co.,Ltd. is committed to creating maximum value for our customers. Inquire! The core value of lifepo4 battery 12v 200ah is kept in each MERITSUN's employee mind. Inquire!
