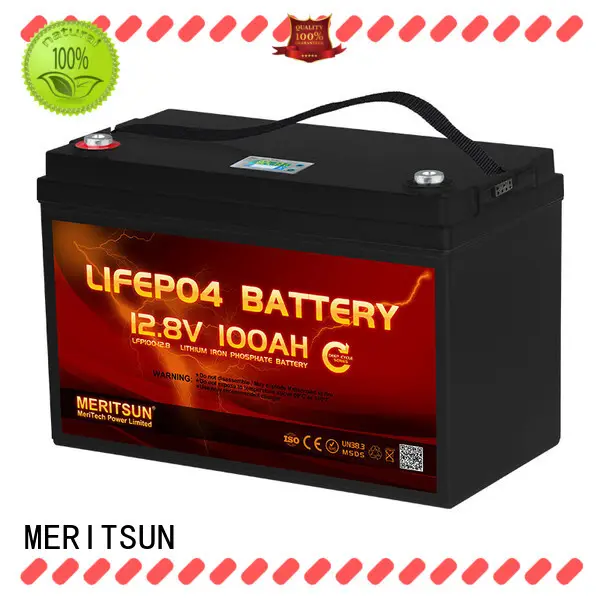

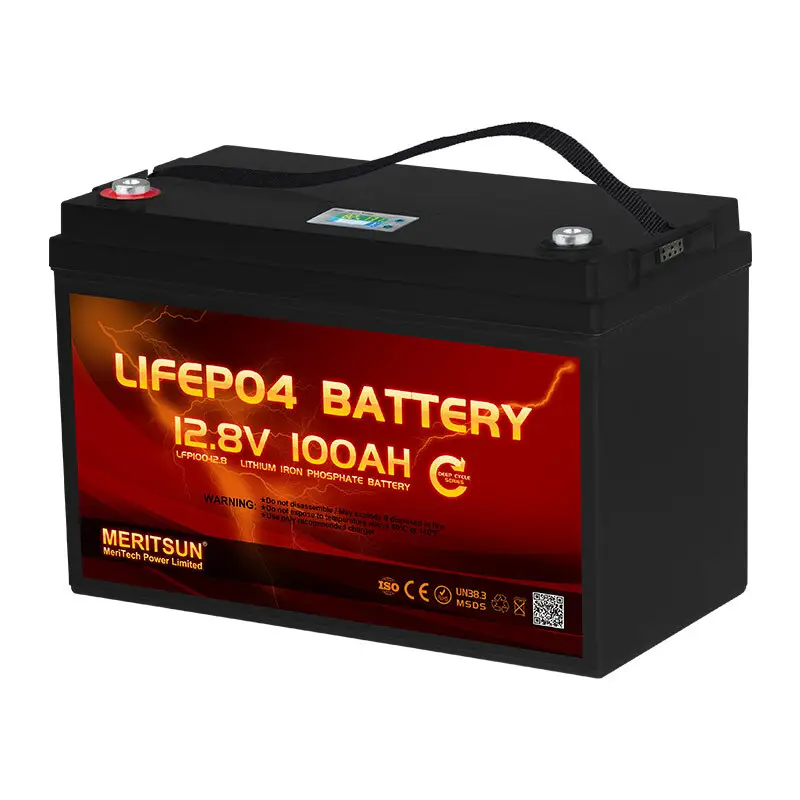

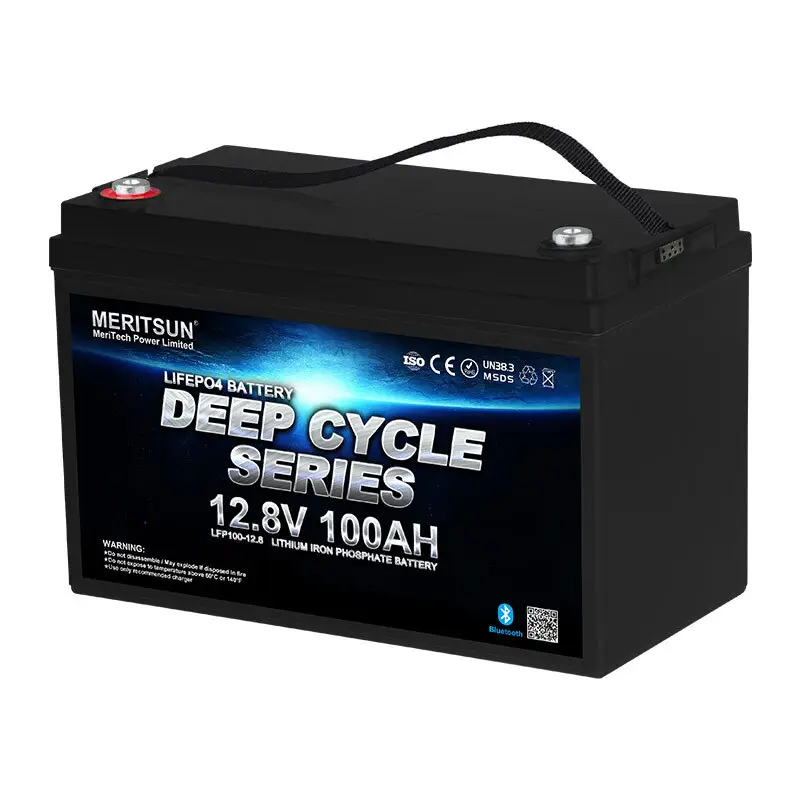

MERITSUN solar lithium battery price wholesale for villa
-
v s
1. MERITSUN lithium battery price undergoes various inspections and scrutinizations. The accuracy of the hangtag and label, the workmanship defects, and the confirmation quality of the piece will be checked in a strict manner.
2. The product is inspected to industry standards to eliminate all defects.
3. As a result of the implementation of a strict quality management system, product quality has been improved.
4. This product acts as an important role in improving the comfort of people and protecting them from the outside elements.
Electrical Characteristics | Nominal Voltage | 12.8V (12V) |
Nominal Capacity | 100Ah | |
Energy | 1280Wh | |
Internal Resistance | ≤90mΩ | |
Cycle Life | >4000 cycles @1C 80%DOD | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Voltage | 14.6±0.2V |
Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) | |
Charger Current | 40A | |
Max. Charge Current | 70A | |
Charge Cut-off Voltage | 15.6V±0.2V | |
Standard Discharge | Continuous Current | 70A |
Max. Pulse Current | 100A(<10s) | |
Discharge Cut-off Voltage | 10V | |
Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
Water Dust Resistance | IP55 | |
Mechanical | Cell & Method | 3.2V25Ah 4S4P |
Plastic Case | ABS | |
Dimensions (in./mm.) | 330*173*220mm | |
Weight (lbs./kg.) | 13.5kg | |
Terminal | / | |
Protocol (optional) | / | |
LCD (optional) | Yes |

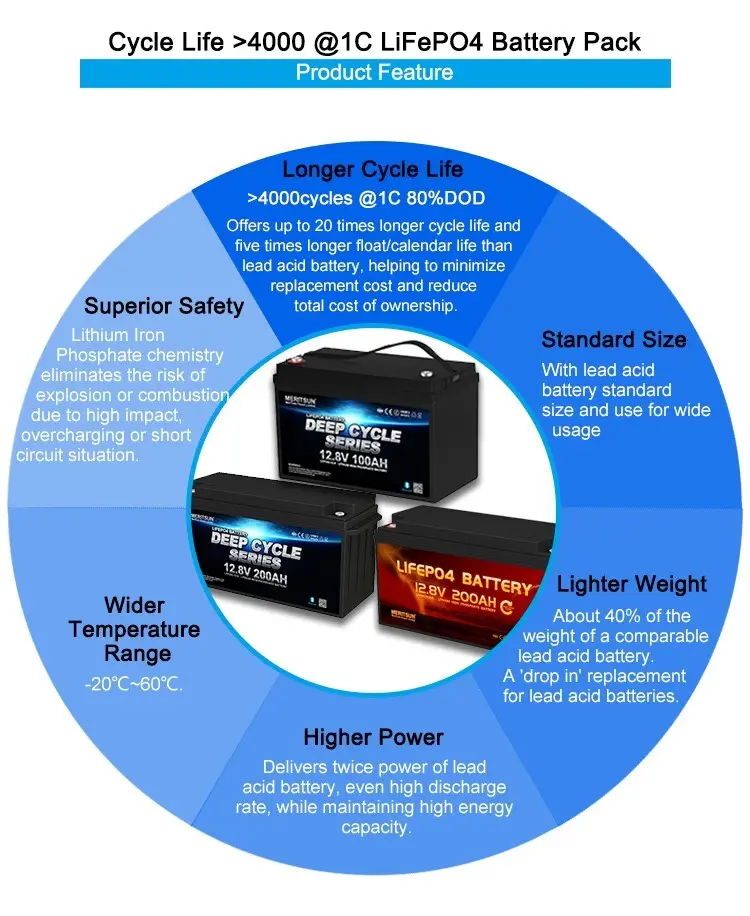

The Product Feature, please refer to:

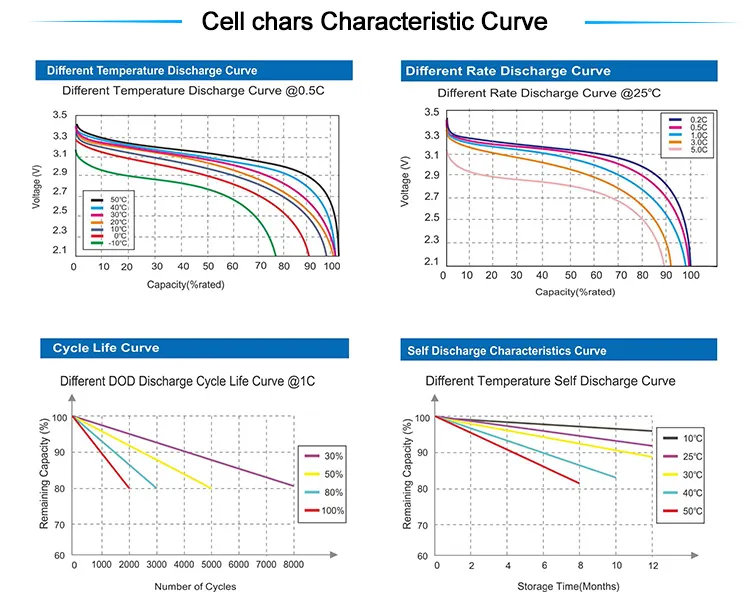

Technology info

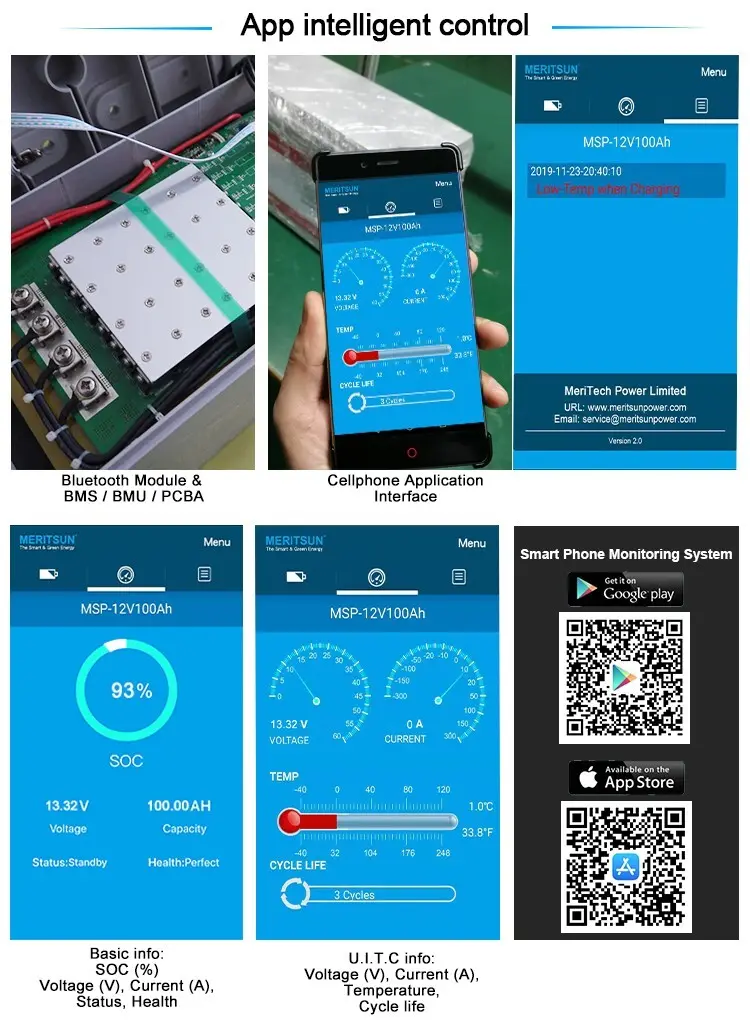

The Technology info with regard to With LCD APP Bluetooth Control 12V 100Ah Deep Cycle LiFePO4 Lithium ion Polymer Battery Pack
The Factors of Quality Guarantee for Solar Street Light Rechargeable Lipo Lithium ion Battery
(First-class quality management system, Professional technical form.)

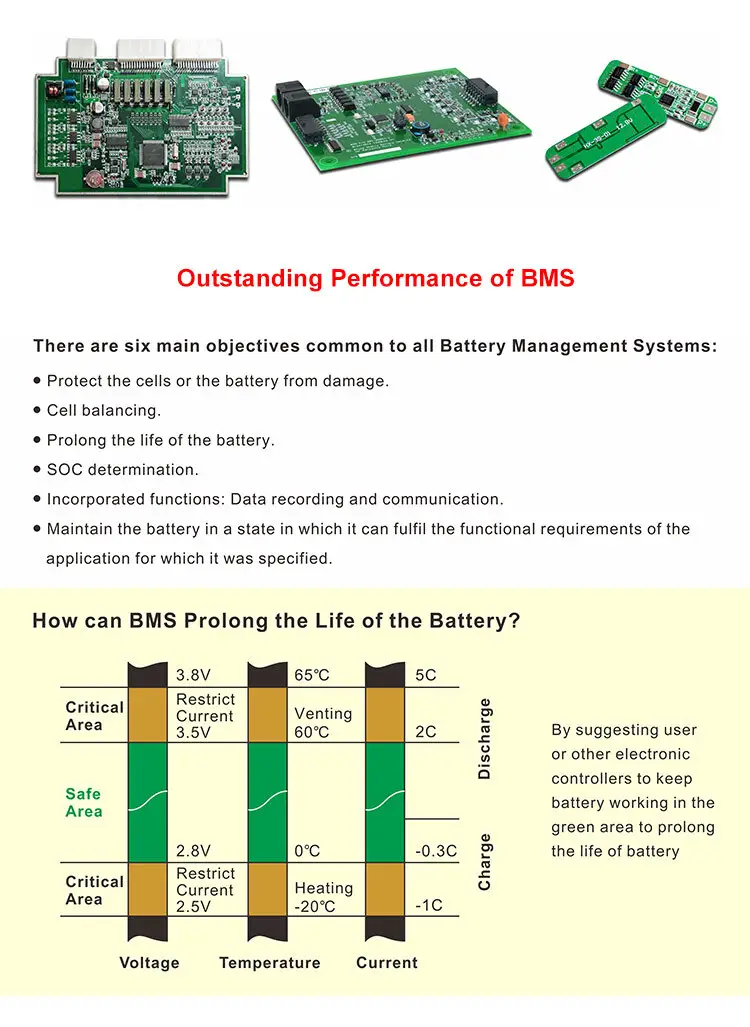

MERITSUN Lithium Battery BMS / PCB / PCM
Li-ion cells should always be used with a protection circuit to prevent the cell from over charging or over dis-charging. Choosing the correct circuit and applying it appropriately is vital to the longevity your batteries and your own safety. MeriTech test each Cells and BMS/PCB/PCM before manufacturing and promise it is functional and safe.
BMS / PCB / PCM is the "heart" of Lithium battery pack. BMS (Battery Management System) is any electronic system that manages a rechargeable battery (cell or battery pack), such as by monitoring its state, calculating secondary data, reporting that data, protecting the battery, controlling its environment, and balancing it.
Packaging info
Professional Certification
MeriTech is focusing on new energy, Global market changes of battery, Through market research to constant understand customers needs in order to build a perfect service network,Own many experienced engineers and technicians, to provide comprehensive, in-depth, quickly and attentive service for you. We could response your request immediately.
MeriTech Power Specialist will estimate your power needs, identify potential problem areas and recommend a cost-effective solution. What you'll get:
1. The global optimum acquisition price for any required hardware
2. Installation considerations
3. Ongoing support options
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. MeriTech Power Co.,Ltd. with a focus on the production and research and development of lithium battery price , has a good reputation at home and abroad.
2. For many years, we have been awarded one prestigious award - China Famous Exporter. This demonstrates our strong manufacturing capacities and good manufacturing practices.
3. MeriTech Power Co.,Ltd. strives for sustainable development in the lithium iron phosphate battery industry. Get an offer! Helping customers succeed is a source of motivation for MeriTech Power Co.,Ltd.. Get an offer! MeriTech Power Co.,Ltd. has great dream to become a competitive best lithium battery supplier. Get an offer! To enhance the quality of the staff, MERITSUN decided to advocate its enterprise culture. Get an offer!
