MERITSUN solar battery energy storage system supplier for commercial
1. MERITSUN lithium ion battery for solar storage meets a series of quality requirements stipulated in industry regulation. Its electrical property and the safety performance of the battery in different conditions are checked to be eligible and qualified. The product is characterized by thermal performance
2. MeriTech Power Co.,Ltd. has become a model of the battery energy storage system industry's brand production companies. It is produced in strict accordance with the UL standard
3. In order to meet customer expectations and industry standards, products must undergo rigorous quality inspection before leaving the factory. It can be widely applied in diverse areas ranging from small appliances and IT devices
4. This product has established a reputation for quality because appropriate quality management systems conforming to the International Standard ISO 9001 requirements are established and implemented for its production. Strong reliability is one of the features of the product
5. Professional staff strictly check, to ensure that products always maintain the highest quality. The charge rate of the product is strong, shortening the charge time efficiently

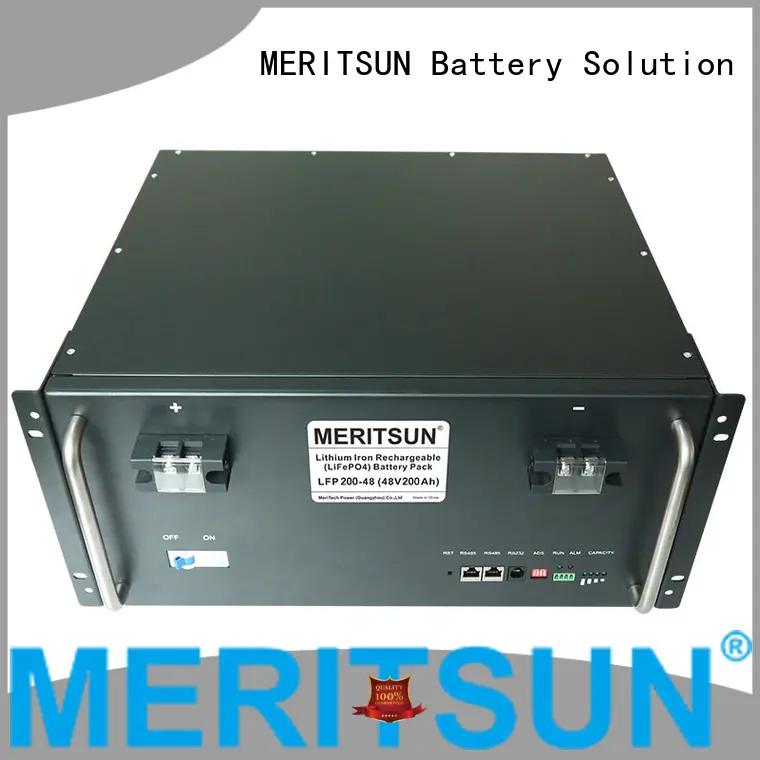

Electrical Characteristics | Model | 48V 200Ah (LiFePO4 Lthium iron Phosphate Battery) | |||||
| Energy | 9600Wh | ||||||
| Internal Resistance | ≤50mΩ | ||||||
| Cycle Life | ≥4000 cycles @1.0C 100%DOD | ||||||
| Months Self Discharge | <3% | ||||||
Standard Charge | Charge Voltage | 56.8~57.6V | |||||
| Charge Mode | 0.2C to 57.6V, then 57.6V,charge current to 0.02C (CC/CV) | ||||||
| Charger Current | ≤100A | ||||||
| Max. Charge Current | 100A | ||||||
| Charge Cut-off Voltage | 57.6±0.2V | ||||||
| Standard Discharge | Continuous Current | 40A | |||||
| Max continuous discharge current | 100A | ||||||
| Discharge Cut-off Voltage | 42.5~45.5V | ||||||
| Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32℉ to 113℉) @60±25% Relative Humidity | |||||
| Discharge Temperature | -20 ℃ to 55 ℃ (-4℉ to 131℉) @60±25% Relative Humidity | ||||||
| Storage Temperature | -10℃ to 65 ℃ (14℉ to 149℉) @60±25% Relative Humidity | ||||||
| Mechanical | Cell & Method | BT-P48100X-6 1S2P | |||||
| Shell material | iron | ||||||
| Dimensions | 442*450*250mm | ||||||
| Weight (lbs./kg.) | Approx: 90kg | ||||||
| Gravimetric specific energy | 101WH/KG | ||||||
Technology info
The Technology info with regard to 48V 100Ah ESS Energy Storage System LiFePO4 Lithium iron Phosphate Battery
The Factors of Quality Guarantee for Solar Street Light Rechargeable Lipo Lithium ion Battery
(First-class quality management system, Professional technical form.)
MERITSUN Lithium Battery BMS / PCB / PCM
Li-ion cells should always be used with a protection circuit to prevent the cell from over charging or over dis-charging. Choosing the correct circuit and applying it appropriately is vital to the longevity your batteries and your own safety. MeriTech test each Cells and BMS/PCB/PCM before manufacturing and promise it is functional and safe.
BMS / PCB / PCM is the "heart" of Lithium battery pack. BMS (Battery Management System) is any electronic system that manages a rechargeable battery (cell or battery pack), such as by monitoring its state, calculating secondary data, reporting that data, protecting the battery, controlling its environment, and balancing it.
Company Features
1. MeriTech Power Co.,Ltd. is known for being a steady supplier of quality battery energy storage system .
2. Under the guidelines of ISO 9001 international management system that has specific requirements for every production stage, the factory is able to provide valuable metrics such as on-time delivery to commit and overall productivity.
3. MeriTech Power Co.,Ltd. will strive to improve its management, design and product quality to a new height. Get price!
