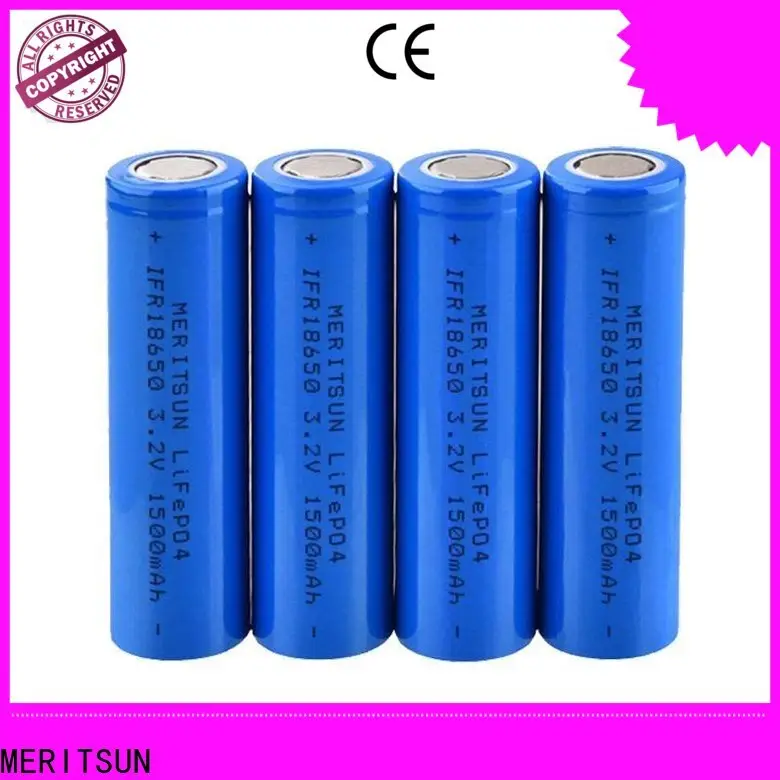

MERITSUN small lithium ion battery with good price for flashlight
Model:
IFR18650 3.2V 1500mAh
Rated Voltage (V):
3.2
Rated Capacity (Ah):
1500mAh
Supply Ability:
500000 Pieces per Month
MOQ:
10
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Approx Dimension (mm):
18650
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Company Advantages
1. small lithium ion battery is novel in design and compact in structure. Moreover, it is easy to assemble and disassemble, and is well received by customers.
2. The product is often used in remote and hard-to-reach locations where the device needs to be self-powered. The weight of the product is about 40% of the weight of a comparable lead-acid battery
3. The tight weave of microfiber does cause any liquids to bead up and sit on the surface of the fabric for a short time instead of soaking immediately. Before shipment, the product will undergo 45 kinds of detailed tests
4. The product is built to last for a long time. Its components do not easily wear over time and do not demand frequent maintenance, but can work for long. It is very easy to use
![]()
![]()
1. small lithium ion battery is novel in design and compact in structure. Moreover, it is easy to assemble and disassemble, and is well received by customers.
2. The product is often used in remote and hard-to-reach locations where the device needs to be self-powered. The weight of the product is about 40% of the weight of a comparable lead-acid battery
3. The tight weave of microfiber does cause any liquids to bead up and sit on the surface of the fabric for a short time instead of soaking immediately. Before shipment, the product will undergo 45 kinds of detailed tests
4. The product is built to last for a long time. Its components do not easily wear over time and do not demand frequent maintenance, but can work for long. It is very easy to use
For More Details, Please Contact US !
| NO. | Items | Parameter | Remarks |
| 1 | Rated Capacity | 1500mAh | Discharge:0.2C Cut-off voltage:3.0V |
| Minimum Capacity | 1450mAh | ||
| 2 | Energy | 4.8Wh | |
| 3 | Nominal Voltage | 3.2V | |
| 4 | Open Voltage | ≥3.2V | |
| 5 | Load Voltage | ≥ 3.2V | 10Ω |
| 6 | Cycle Life | ≥2000 times | |
| 7 | Internal Impedance | ≤50mΩ | AC 1KHz after 50% charge |
| 8 | Charge voltage | 3.65V | |
| 9 | Standard charge current | 300mA | |
| 10 | Max charge current | 750mA | |
| 11 | Standard discharge current | 1500mA | |
| 12 | Pulse Discharge current | 10A (5S) | |
| 13 | Discharge cut-off voltage | 2.5V | |
| 14 | Operating Temperature | 0~+55℃ | Charge |
| -20~+60℃ | Discharge | ||
| 15 | Storage temperature for a long time | -20~25℃ | |
| 16 | Weight | 42±1g | |
| 17 | Dimensions-Diameter | 18.3±0.2mm | |
| Dimensions-Height | 65.3±0.2mm |
The Lithium Battery Cell Characteristic Curve , Please Refer To:
The Battery Advantages and Cells Consistency Countermeasures for
18650 Battery, Lithium Battery, Lipo Battery, Li-ion battery, LiFePO4 Battery,
Rechargeable Lithium ion Battery, Lithium Polymer Battery,
Lithium iron Phosphate Battery
The Battery Safety Assurance and Low Self Discharge for 18650 Battery, Lithium Battery,
Lipo Battery, Li-ion battery, LiFePO4 Battery, Rechargeable Lithium ion Battery,
Lithium Polymer Battery, Lithium iron Phosphate Battery
More Lithium Battery Cells Model Reference:
