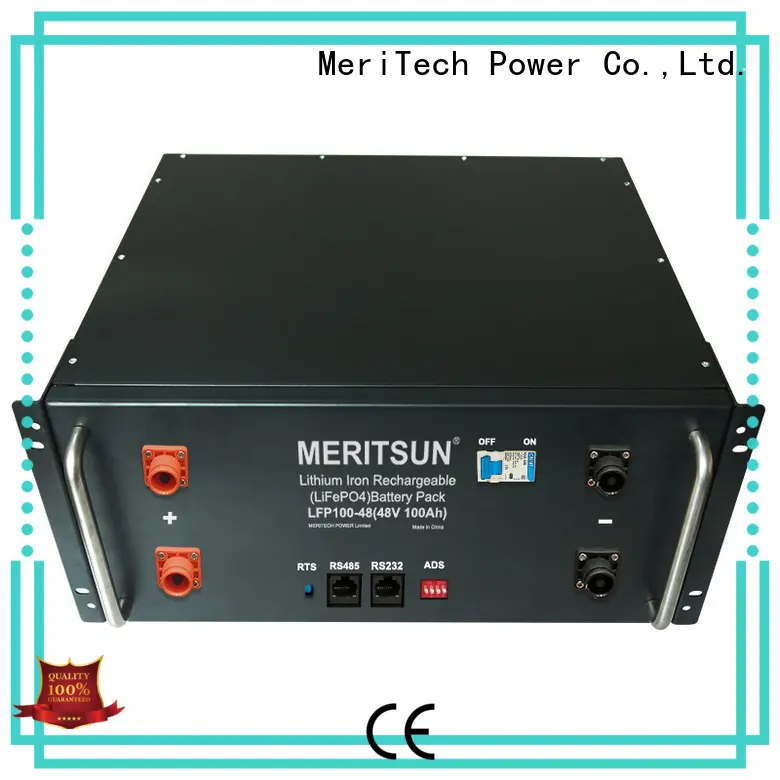

MERITSUN residential energy storage systems customized for commercial
1. MERITSUN residential energy storage systems has gone through appearance inspections. These checks include color, texture, spots, color lines, uniform crystal/grain structure, etc. It is of extremely low self-discharge rate and can be left unused for a longer time
2. This product is practical and economical and thus has been accepted by many customers. It is packed with high-quality and sturdy packages
3. The product is non-toxic and harmless. It contains zero or very low volatile organic compounds in the material's ingredients or in the varnishes. The charge rate of the product is strong, shortening the charge time efficiently
4. This product has electromagnetic compatibility. Any EMC regulatory issues, from design concept to final production, are adequately resolved based on our complete knowledge of EMC legislation, guidelines, and standards. Strong reliability is one of the features of the product
Electrical Characteristics | Model | 48V 100Ah (LiFePO4 Lthium iron Phosphate Battery) | ||||
| Energy | 4800Wh | |||||
| Internal Resistance | ≤80mΩ | |||||
| Cycle Life | ≥4000 cycles @1.0C 100%DOD | |||||
| Months Self Discharge | <3% | |||||
| Months Self Discharge | Charge Voltage | 54.0±0.1V | ||||
| Charge Mode | 0.2C to 54.0V, then 54.0V,charge current to 0.02C (CC/CV) | |||||
| Charger Current | 20A (Customizable) | |||||
| Max. Charge Current | 50A (Customizable) | |||||
| Charge Cut-off Voltage | 57.6±0.2V | |||||
| Standard Discharge | Continuous Current | 20A (Customizable) | ||||
| Max continuous discharge current | 50A (Customizable) | |||||
| Discharge Cut-off Voltage | 37.5V | |||||
| Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32℉ to 113℉) @60±25% Relative Humidity | ||||
| Discharge Temperature | -20 ℃ to 60 ℃ (-4℉ to 140℉) @60±25% Relative Humidity | |||||
| Storage Temperature | 0 ℃ to 40 ℃ (32℉ to 104℉) @60±25% Relative Humidity | |||||
Mechanical | Cell & Method | LFP027135180-50Ah 3.2V50Ah 15S2P | ||||
| Shell material | iron | |||||
| Dimensions | 442*400*221mm | |||||
| Weight (lbs./kg.) | Approx: 60kg (132.27 Ibs) | |||||
| Gravimetric specific energy | 80WH/KG | |||||
Technology info
The Technology info with regard to 48V 100Ah ESS Energy Storage System LiFePO4 Lithium iron Phosphate Battery
The Factors of Quality Guarantee for Solar Street Light Rechargeable Lipo Lithium ion Battery
(First-class quality management system, Professional technical form.)
MERITSUN Lithium Battery BMS / PCB / PCM
Li-ion cells should always be used with a protection circuit to prevent the cell from over charging or over dis-charging. Choosing the correct circuit and applying it appropriately is vital to the longevity your batteries and your own safety. MeriTech test each Cells and BMS/PCB/PCM before manufacturing and promise it is functional and safe.
BMS / PCB / PCM is the "heart" of Lithium battery pack. BMS (Battery Management System) is any electronic system that manages a rechargeable battery (cell or battery pack), such as by monitoring its state, calculating secondary data, reporting that data, protecting the battery, controlling its environment, and balancing it.
Company Features
1. Our research and development team has been working for years in this industry. They possess deep and insightful knowledge of the product market trends and unique understanding of product development. We believe these characteristics help us achieve the broadening the product range and achieve excellency.
2. MERITSUN creates an environment for the long-term development of customers. Contact!
