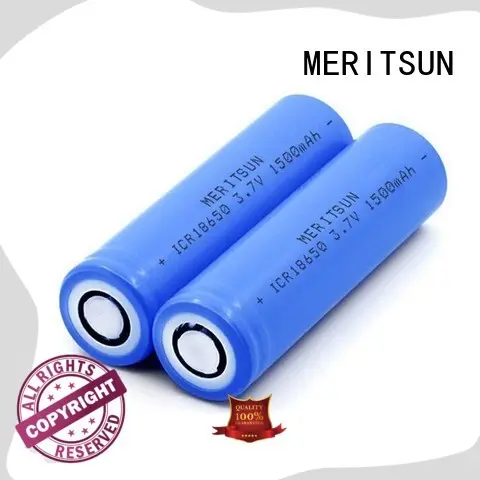

MERITSUN reliable 18650 battery cell capacity matching for flashlight
Model:
ICR18650 3.7V 1500mAh
Rated Voltage (V):
3.7
Rated Capacity (Ah):
1500mAh
Supply Ability:
500000 Pieces per Month
MOQ:
10
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Approx Dimension (mm):
18650
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Company Advantages
1. The production of MERITSUN 4 cell lithium ion battery meets the mandatory regulations stipulated in the national standards. All of its metal ingredients such as mercury and lead are guaranteed to be controlled in a safe limit.
2. By consistently developing the performance of 18650 battery cell , MERITSUN has got wide recognition for its high quality products at home and abroad. The product with a long service life can be used for more than 8 years
3. The product is able to retain its original shape. It has passed the bonding tests to maintain its integrity under a certain degree of stress. It can be used within a wider temperature range from -20℃ to 65℃
4. The product is highly resistant to shock, vibrations, and external impacts, which makes it easily exposed to rough conditions indoor or outdoor. The charge rate of the product is strong, shortening the charge time efficiently
5. The product is extremely durable and nonporous. It is processed under a high firing temperature which eliminates all water bubble and air. Strong reliability is one of the features of the product
Company Features
1. We have professional QC department to test strictly 18650 battery cell .
2. Ushering in the culture of lithium ion cell helps MERITSUN to step further. Please contact.
1. The production of MERITSUN 4 cell lithium ion battery meets the mandatory regulations stipulated in the national standards. All of its metal ingredients such as mercury and lead are guaranteed to be controlled in a safe limit.
2. By consistently developing the performance of 18650 battery cell , MERITSUN has got wide recognition for its high quality products at home and abroad. The product with a long service life can be used for more than 8 years
3. The product is able to retain its original shape. It has passed the bonding tests to maintain its integrity under a certain degree of stress. It can be used within a wider temperature range from -20℃ to 65℃
4. The product is highly resistant to shock, vibrations, and external impacts, which makes it easily exposed to rough conditions indoor or outdoor. The charge rate of the product is strong, shortening the charge time efficiently
5. The product is extremely durable and nonporous. It is processed under a high firing temperature which eliminates all water bubble and air. Strong reliability is one of the features of the product
Product Description
/ For more details, please contact us！
| NO. | Items | Parameter | Remarks |
| 1 | Rated Capacity | 1500mAh | Discharge:0.2C Cut-off voltage:3.0V |
| Minimum Capacity | 1450mAh | ||
| 2 | Energy | 5.55Wh | |
| 3 | Nominal Voltage | 3.7V | |
| 4 | Open Voltage | ≥3.85V | |
| 5 | Load Voltage | ≥3.6V | 10Ω |
| 6 | Cycle Life | 500~1000 times | |
| 7 | Internal Impedance | ≤50mΩ | AC 1KHz after 50% charge |
| 8 | Charge voltage | 4.2V | |
| 9 | Standard charge current | 300mA | |
| 10 | Max charge current | 1500mA | |
| 11 | Standard discharge current | 300mA | |
| 12 | Max Discharge current | 10~25C | |
| 13 | Discharge cut-off voltage | 3.0V | |
| 14 | Operating Temperature | 0~+45℃ | Charge |
| -20~+60℃ | Discharge | ||
| 15 | Storage temperature for a long time | -20~25℃ | |
| 16 | Weight | 47±1g | |
| 17 | Dimensions-Diameter | 18.3±0.2mm | |
| Dimensions-Height | 65.3±0.2mm |
The Lithium Battery Cell Characteristic Curve , Please Refer To:
The Battery Advantages and Cells Consistency Countermeasures for
18650 Battery, Lithium Battery, Lipo Battery, Li-ion battery, LiFePO4 Battery,
Rechargeable Lithium ion Battery, Lithium Polymer Battery,
Lithium iron Phosphate Battery
The Battery Safety Assurance and Low Self Discharge for 18650 Battery, Lithium Battery,
Lipo Battery, Li-ion battery, LiFePO4 Battery, Rechargeable Lithium ion Battery,
Lithium Polymer Battery, Lithium iron Phosphate Battery
More Lithium Battery Cells Model Reference:
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. We have professional QC department to test strictly 18650 battery cell .
2. Ushering in the culture of lithium ion cell helps MERITSUN to step further. Please contact.
