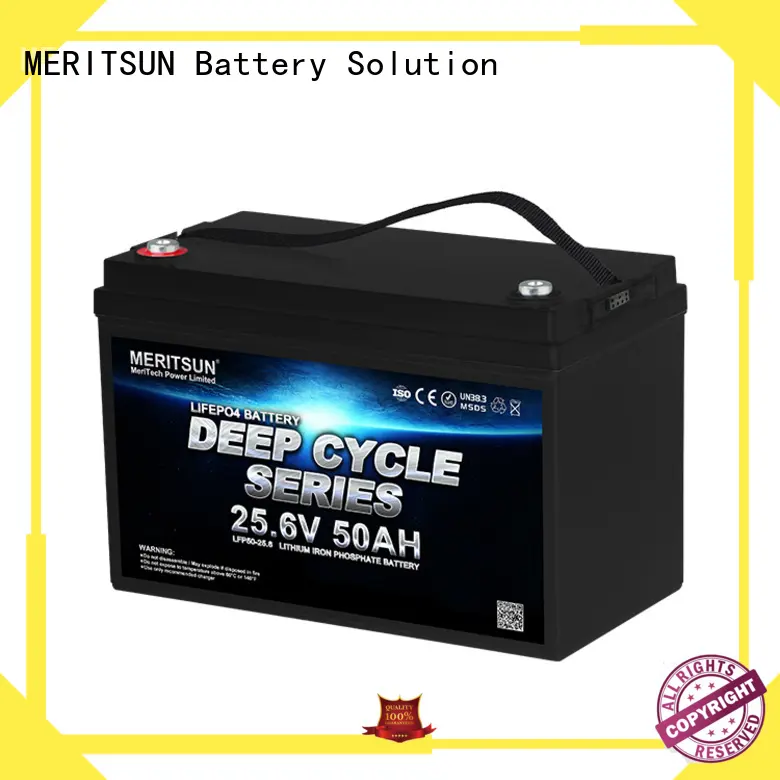

MERITSUN rechargeable lithium iron battery series for house
1. Each MERITSUN 24v lifepo4 battery pack is strictly manufactured. As soon as each department is finished with their assigned task, the shoe is passed on to the next manufacturing stage. The charge rate of the product is strong, shortening the charge time efficiently
2. Quality for lithium iron battery is always put in very important place in MeriTech Power Co.,Ltd.. Supported by the lead-acid battery, it has a high discharge rate while maintaining high energy capacity
3. The product is characterized by low internal resistance. Its conductive substrate is optimized to reduce the contact resistance between anode and cathode materials.
4. It can be regarded as a green source of energy. All of its metal ingredients, including cadmium and mercury, as well as the electrolyte, poses no harm to the environment. Its long cycle life with over 2000 cycles helps owners reduce replacement cost
Electrical Characteristics | Nominal Voltage | 25.6V (24V) |
Nominal Capacity | 50Ah | |
Energy | 1280Wh | |
Internal Resistance | ≤200mΩ | |
Cycle Life | >4000 cycles @1C 80%DOD | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Voltage | 29.2±0.2V |
Charge Mode | 0.2C to 29.2V, then 29.2V,charge current to 0.02C (CC/CV) | |
Charger Current | 45A | |
Max. Charge Current | 50A | |
Charge Cut-off Voltage | 31.2V±0.2V | |
Standard Discharge | Continuous Current | 50A |
Max. Pulse Current | 100A(<10s) | |
Discharge Cut-off Voltage | 20V | |
Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
Water Dust Resistance | IP55 | |
Mechanical | Cell & Method | 3.2V25Ah 8S2P |
Plastic Case | ABS | |
Dimensions (in./mm.) | 330*173*220mm | |
Weight (lbs./kg.) | 13.5kg | |
Terminal | / | |
Protocol (optional) | / | |
SOC (optional) | / |
