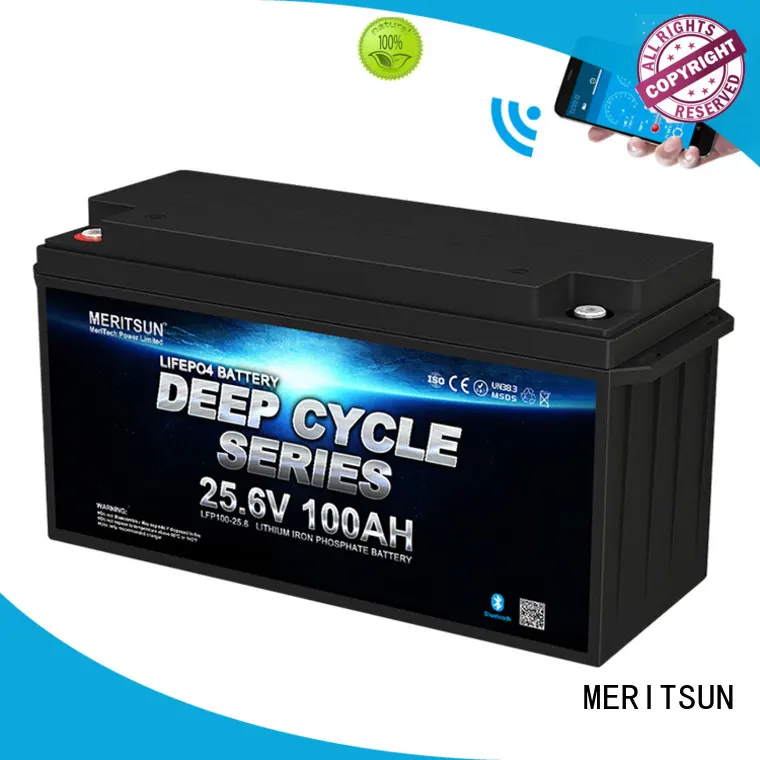

MERITSUN rechargeable lithium ion polymer battery wholesale for villa
1. The materials of MERITSUN lifepo4 48v 100ah battery have passed various kinds of tests. These tests are fire resistance testing, mechanical testing, formaldehyde content testing, and stability & strength testing. It is packed with high-quality and sturdy packages
2. The product is highly praised among clients due to the above advantages and is used widely in the market currently. It can be widely applied in diverse areas ranging from small appliances and IT devices
3. Its technical parameters are in line with international standards and guidelines. It will effectively support users' today and long-term needs. The product comes with OEM and ODM availability
Electrical Characteristics | Nominal Voltage | 25.6V (24V) |
Nominal Capacity | 100Ah | |
Energy | 2560Wh | |
Internal Resistance | ≤200mΩ | |
Cycle Life | >4000 cycles @1C 80%DOD | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Voltage | 29.2±0.2V |
Charge Mode | 0.2C to 29.2V, then 29.2V,charge current to 0.02C (CC/CV) | |
Charger Current | 49A | |
Max. Charge Current | 50A | |
Charge Cut-off Voltage | 31.2V±0.2V | |
Standard Discharge | Continuous Current | 50A |
Max. Pulse Current | 100A(<10s) | |
Discharge Cut-off Voltage | 20V | |
Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
Water Dust Resistance | IP55 | |
Mechanical | Cell & Method | 3.2V10Ah 8S10P |
Plastic Case | ABS | |
Dimensions (in./mm.) | 522*240*224mm | |
Weight (lbs./kg.) | 30.5kg | |
Terminal | / | |
Protocol (optional) | / | |
SOC (optional) | / |
The Product Feature, please refer to:
Technology info
The Technology info with regard to 25.6V 24V 100Ah Lipo Li-ion Lithium iron Phosphate LiFePO4 Battery
The Factors of Quality Guarantee for Solar Street Light Rechargeable Lipo Lithium ion Battery
(First-class quality management system, Professional technical form.)

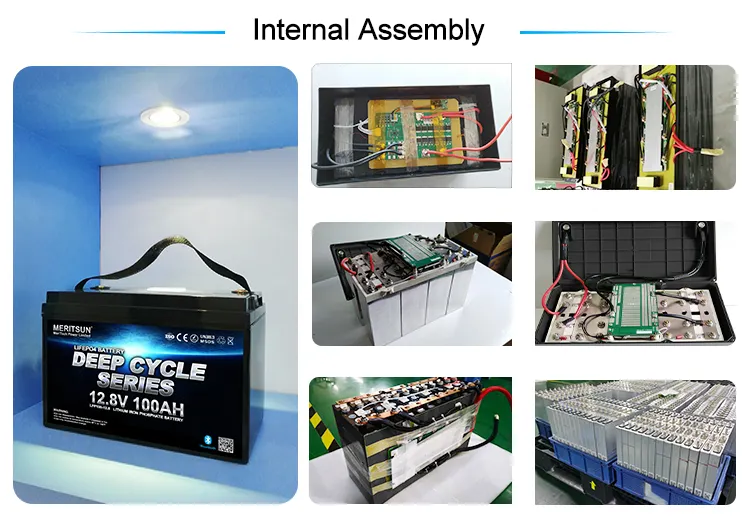

MERITSUN Lithium Battery BMS / PCB / PCM
Li-ion cells should always be used with a protection circuit to prevent the cell from over charging or over dis-charging. Choosing the correct circuit and applying it appropriately is vital to the longevity your batteries and your own safety. MeriTech test each Cells and BMS/PCB/PCM before manufacturing and promise it is functional and safe.
BMS / PCB / PCM is the "heart" of Lithium battery pack. BMS (Battery Management System) is any electronic system that manages a rechargeable battery (cell or battery pack), such as by monitoring its state, calculating secondary data, reporting that data, protecting the battery, controlling its environment, and balancing it.
Packaging info
Professional Certification
MeriTech is focusing on new energy, Global market changes of battery, Through market research to constant understand customers needs in order to build a perfect service network,Own many experienced engineers and technicians, to provide comprehensive, in-depth, quickly and attentive service for you. We could response your request immediately.
MeriTech Power Specialist will estimate your power needs, identify potential problem areas and recommend a cost-effective solution. What you'll get:
1. The global optimum acquisition price for any required hardware
2. Installation considerations
3. Ongoing support options
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. The MERITSUN branded lithium ion polymer battery is exported to the global market with high quality as a word of mouth.
2. Our company has well-trained and highly-skilled employees. They can perform tasks much faster because they know what they’re doing and the quality of work will also improve.
3. Corporate culture, as a resource, could internally drive MERITSUN to grow up and develop. Inquire online!
