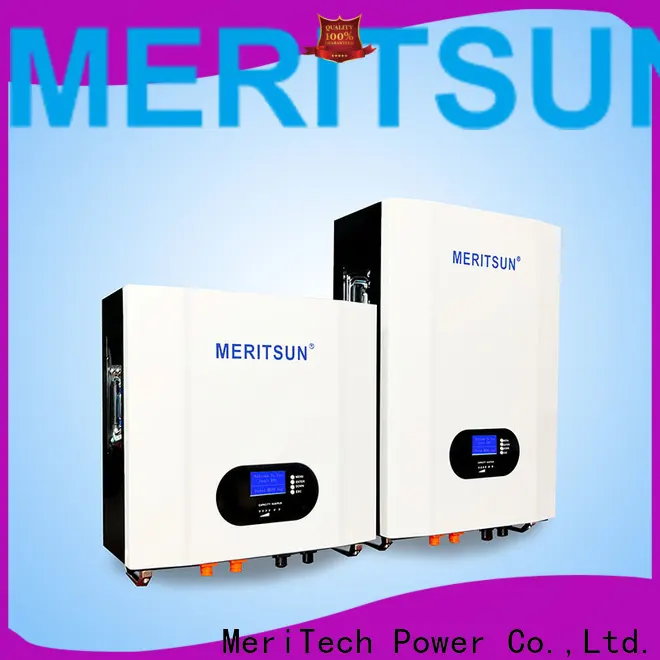

MERITSUN Powerwall (Hybrid Grid ESS) manufacturer for buildings2
| LiFePO4 Lithium Battery Pack Spec. | |||||||||
| Energy | Battery | Chargin Voltage | Standard Charge Current | Max charge | Standard Discharge Current | Maximum Continuous Discharge Current | Maximum Discharge Current | Dimension (L*W*H) | Weight |
| 5 kWH | 48V/51.2 100Ah | 54V/58V | 20V/50A | 120A | 50A | 120A | 300A (1S) | 650*480*190 mm | 53KG/58.5KG |
| 7 kWH | 48V/51.2 140Ah | 65KG/73.3KG | |||||||
| 10kWH | 48V/51.2 200Ah | 85KG/96KG | |||||||
| Cycle Life: 6000cycle @80%DOD | 5~10 Years Warranty | ||||||||
| On/Off Grid Hybrid Inverter Spec. | |||||||||
| Model | Max PV Input | Max AC Output | Max AC Output | Output with Battery | Max Charge Current | Max Discharge Current | Peak Output Power (30s) | Dimension (L*W*H) | Weight |
| 3 kVA | 6600W | 3000VA | 3000W | 3600W | 66A | 66A | 4500W | 455*565*181mm | 20Kg |
| 5 kVA | 8000W | 5000VA | 5000W | 3600W | 66A | 66A | 4500W | 455*565*181mm | 20Kg |
For More Information On The Product, Please Contact Us Now!
MeriTech is focusing on new energy, Global market changes of battery, Through market research to constant understand customers needs in order to build a perfect service network,Own many experienced engineers and technicians, to provide comprehensive, in-depth, quickly and attentive service for you. We could response your request immediately.
MeriTech Power Specialist will estimate your power needs, identify potential problem areas and recommend a cost-effective solution. What you'll get:
1. The global optimum acquisition price for any required hardware
2. Installation considerations
3. Ongoing support options
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
