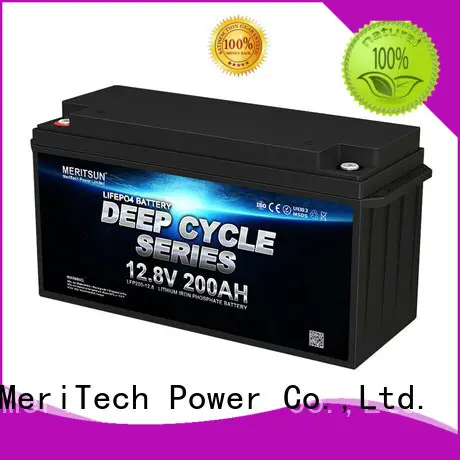

MERITSUN phosphate lithium iron battery wholesale for home use
- Established in 1999, MeriTech has 18 years of experience in providing solutions services in energy storage application industry. We dedicated to designing and manufacturing of LiFePO4 and lithium cells and integrated battery packs for energy system. puts customers first and makes effort to provide quality services based on customer demand.
1. Quality inspection on MERITSUN where can i buy lithium batteries will be conducted rigorously. Its appearance, battery cells, and electrolyte will be checked thoroughly to eliminate factors which may impact battery effectiveness and performance.
2. A team of skilled quality controllers handles the quality checks that are conducted to examine and ensure the flawlessness of the offered products.
3. The product is widely used and has a high market value.
Electrical Characteristics | Nominal Voltage | 12.8V (12V) |
Nominal Capacity | 200Ah | |
Energy | 2560Wh | |
Internal Resistance | ≤180mΩ | |
Cycle Life | >4000 cycles @1C 80%DOD | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Voltage | 14.6±0.2V |
Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) | |
Charger Current | 60A | |
Max. Charge Current | 80A | |
Charge Cut-off Voltage | 15.6V±0.2V | |
Standard Discharge | Continuous Current | 60A |
Max. Pulse Current | 350A(<10s) | |
Discharge Cut-off Voltage | 8V | |
Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
Water Dust Resistance | IP55 | |
Mechanical | Cell & Method | 3.2V10Ah 4S20P |
Plastic Case | ABS | |
Dimensions (in./mm.) | 485*170*245mm | |
Weight (lbs./kg.) | 25kg | |
Terminal | / | |
Protocol (optional) | / | |
SOC (optional) | / |
MeriTech is focusing on new energy, Global market changes of battery, Through market research to constant understand customers needs in order to build a perfect service network,Own many experienced engineers and technicians, to provide comprehensive, in-depth, quickly and attentive service for you. We could response your request immediately.
MeriTech Power Specialist will estimate your power needs, identify potential problem areas and recommend a cost-effective solution. What you'll get:
1. The global optimum acquisition price for any required hardware
2. Installation considerations
3. Ongoing support options
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. With extensive experience and expertise, MeriTech Power Co.,Ltd. provides the manufacturing power needed to create the world's best where can i buy lithium batteries .
2. Perfect quality control system 100% guarantees the quality of lifepo4 48v 100ah battery .
3. MeriTech Power Co.,Ltd. deeply knows that good service can bring us more customers in future. Contact! From MeriTech Power Co.,Ltd.'s perspective, service is of great importance for stable development. Contact!
