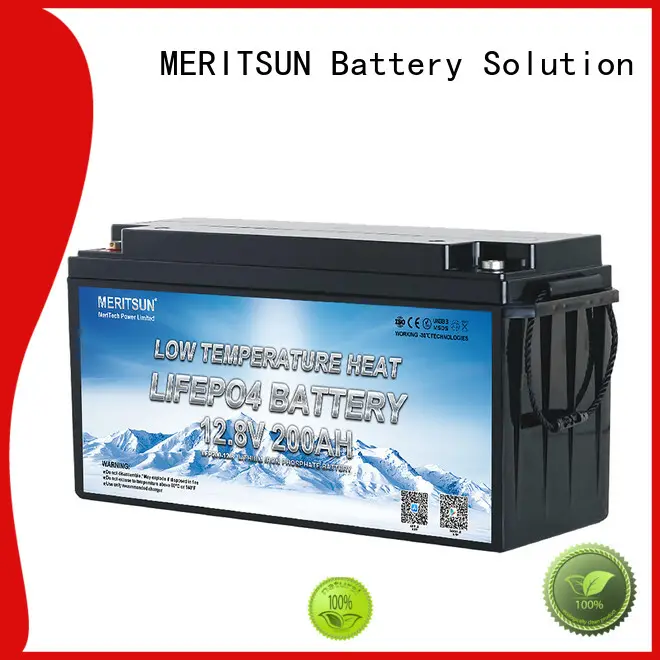

MERITSUN new low temperature lithium ion battery manufacturers for electric motorcycle
Model:
LFP200-12.8, Bluetooth Battery
Rated Voltage (V):
12V
Rated Capacity (Ah):
200AH
Supply Ability:
500000 Pieces per Month
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Approx Dimension (mm):
483*170*241
Approx Weight (Kg):
25kg
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Product Comparison
Well-chosen in material, fine in workmanship, excellent in quality and favorable in price, Established in 1999, MeriTech has 18 years of experience in providing solutions services in energy storage application industry. We dedicated to designing and manufacturing of LiFePO4 and lithium cells and integrated battery packs for energy system.'s battery energy storage system is highly competitive in the domestic and foreign markets.Compared with other products in the same category, battery energy storage system has outstanding advantages which are mainly reflected in the following points.
-
v s
1. low temperature lithium ion battery is made by low temperature lithium ion which has the property of lithium ion battery at low temperature .
2. The QC team guarantees the quality of the product under the supervision of technicians.
3. The product is used in many applications for its quick discharging ability. It is especially useful when there is in need of power source temporarily.
4. The product is stable and reliable, therefore, people do not have to worry that there will be any leakage occurs if they use it properly.
Electrica Characteristics | Nominal Voltage | 12.8V | ||||
| Nominal Capacity | 200Ah | |||||
| Energy | 2560Wh | |||||
| Internal Resistance | ≤20mΩ | |||||
| Cycle Life | ≥4000 cycles @1C 100%DOD | |||||
| Months Self Discharge | <3% | |||||
| Efficiency of Charge | 100% @0.5C | |||||
| Efficiency of Discharge | 96~99% @1C | |||||
| Standard Charge | Charge Voltage | 14.6±0.2V | ||||
| Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) | |||||
| Charger Current | 80A | |||||
| Max. Charge Current | 100A | |||||
| Charge Cut-off Voltage | 14.6±0.2V | |||||
| Standard Discharge | Continuous Current | 100A | ||||
| Max. Pulse Current | 300A(<10s) | |||||
| Discharge Cut-off Voltage | 10.5V | |||||
| Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity | ||||
| Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |||||
| Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |||||
| Water Dust Resistance | IP56 | |||||
| Mechanical | Cell & Method | 26650 4S36P | ||||
| Plastic Case | ABS | |||||
| Dimensions (in./mm.) | 483*170*241mm Customized | |||||
| Weight (lbs./kg.) | 25kg | |||||
| Terminal | T11 | |||||
| Protocol (optional) | SMBus/RS485/RS232 | |||||
| SOC (optional) | Bluetooth | |||||
Company Features
1. The progress in manufacturing low temperature lithium ion battery has been gradually made by MERITSUN.
2. Our company has gathered groups of manufacturing teams. The professionals in these teams have years of experience from this industry, including design, customer support, marketing, and management.
3. By cause of the fundamental principle of being optimistic, MERITSUN intends to be a highly effective lithium battery low temperature manufacturer. Inquire online! You are able to get our low temperature li-ion battery and receive decent support . Inquire online! From improving management thought and strategy, MERITSUN will always upgrade the job efficiency. Inquire online!
