MERITSUN, the Best Lithium Energy Solution Provider.

MERITSUN new low temperature lithium battery manufacturers for robot 1
MERITSUN new low temperature lithium battery manufacturers for robot 2
MERITSUN new low temperature lithium battery manufacturers for robot 3
MERITSUN new low temperature lithium battery manufacturers for robot 4
MERITSUN new low temperature lithium battery manufacturers for robot 5
MERITSUN new low temperature lithium battery manufacturers for robot 6
MERITSUN new low temperature lithium battery manufacturers for robot 7
MERITSUN new low temperature lithium battery manufacturers for robot 8
MERITSUN new low temperature lithium battery manufacturers for robot 9
MERITSUN new low temperature lithium battery manufacturers for robot 10
MERITSUN new low temperature lithium battery manufacturers for robot 1
MERITSUN new low temperature lithium battery manufacturers for robot 2
MERITSUN new low temperature lithium battery manufacturers for robot 3
MERITSUN new low temperature lithium battery manufacturers for robot 4
MERITSUN new low temperature lithium battery manufacturers for robot 5
MERITSUN new low temperature lithium battery manufacturers for robot 6
MERITSUN new low temperature lithium battery manufacturers for robot 7
MERITSUN new low temperature lithium battery manufacturers for robot 8
MERITSUN new low temperature lithium battery manufacturers for robot 9
MERITSUN new low temperature lithium battery manufacturers for robot 10

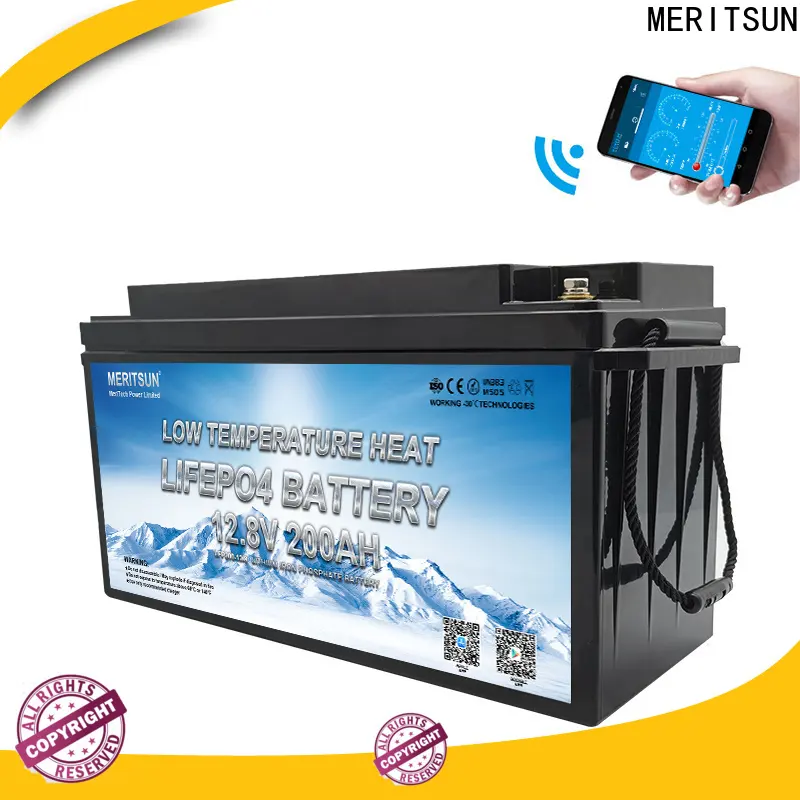

MERITSUN new low temperature lithium battery manufacturers for robot

Model:
LFP200-12.8, Bluetooth Battery
Rated Voltage (V):
12V
Rated Capacity (Ah):
200AH
Supply Ability:
500000 Pieces per Month
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Approx Dimension (mm):
483*170*241
Approx Weight (Kg):
25kg
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Inquiry
Company Advantages
1. MERITSUN low temp lithium battery has passed the necessary tests. They include functionality testing, strength testing, stiffness testing, wear testing, corrosion testing, and friction testing. The charge rate of the product is strong, shortening the charge time efficiently
2. The product is more competitive in the commercial market and has a promising market prospect.
3. One of the focusing points of MERITSUN is to check every detail of the product. It is of extremely low self-discharge rate and can be left unused for a longer time
4. The product is totally inspected by our QC team with their dedication to high quality. The product is produced under the principle of environmental protection

MERITSUN new low temperature lithium battery manufacturers for robot 11

Electrica

Characteristics
Nominal Voltage12.8V
Nominal Capacity200Ah
Energy2560Wh
Internal Resistance≤20mΩ
Cycle Life≥4000 cycles @1C 100%DOD
Months Self Discharge<3%
Efficiency of Charge100% @0.5C
Efficiency of Discharge96~99% @1C
Standard ChargeCharge Voltage14.6±0.2V
Charge Mode0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV)
Charger Current80A
Max. Charge Current100A
Charge Cut-off Voltage14.6±0.2V
Standard DischargeContinuous Current100A
Max. Pulse Current300A(<10s)
Discharge Cut-off Voltage10.5V
EnvironmentalCharge Temperature0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity
Discharge Temperature-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
Storage Temperature0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity
Water Dust ResistanceIP56
MechanicalCell & Method26650 4S36P
Plastic CaseABS
Dimensions (in./mm.)483*170*241mm
Customized
Weight (lbs./kg.)25kg
TerminalT11
Protocol (optional)SMBus/RS485/RS232
SOC (optional)Bluetooth

MERITSUN new low temperature lithium battery manufacturers for robot 12

MERITSUN new low temperature lithium battery manufacturers for robot 13

MERITSUN new low temperature lithium battery manufacturers for robot 14

MERITSUN new low temperature lithium battery manufacturers for robot 15

MERITSUN new low temperature lithium battery manufacturers for robot 16

MERITSUN new low temperature lithium battery manufacturers for robot 17

MERITSUN new low temperature lithium battery manufacturers for robot 18

MERITSUN new low temperature lithium battery manufacturers for robot 19





Company Features
1. Years of specializing in manufacturing and distributing low temperature lithium battery, MeriTech Power Co.,Ltd. has become a well-known manufacturer in the market. We have expanded large markets both at home and abroad. We have established a loyal customer base, among many of whom have won the endorsements of many consumers.
2. Our company has excellent project managers. They are able to make a systematic analysis of customers’ requirements, working with them in developing the best possible product solution and throughout its implementation.
3. We have a factory. Being equipped with advanced machinery and technology, it can make our products better - more competitive, unique, robust and reliable. We set clear, aligned and measurable objectives to drive results. We directly communicate our expectations and define clear roles and responsibilities.
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
