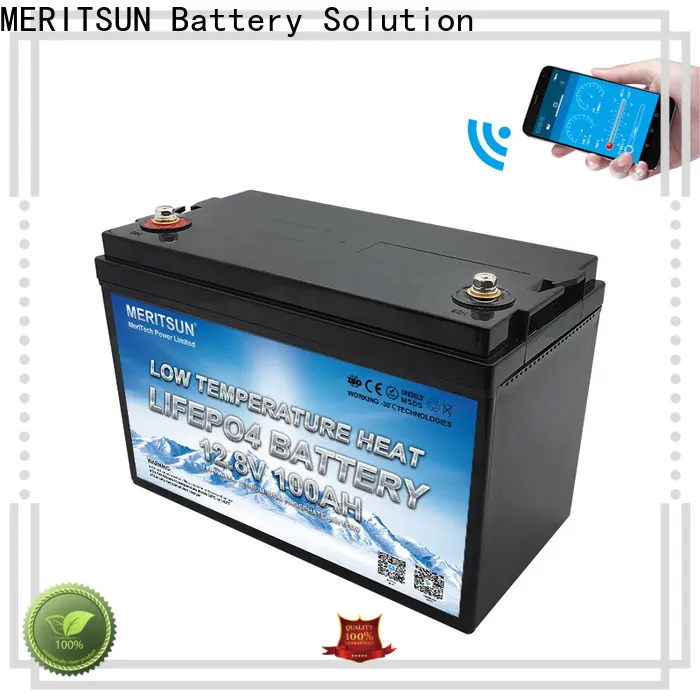

MERITSUN new lithium battery low temperature supply for streetlight
Model:
LFP200-12.8, Bluetooth Battery
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Video Display
1. The raw fabrics adopted in the making of MERITSUN low temperature charging lithium ion meet the mandatory national standards. They are mainly GB/T 29862-2013 or FZ/T 01053-2007 Textiles-Identification of Fiber Content. The product is characterized by thermal performance
2. MeriTech Power Co.,Ltd. will provide you with comprehensive and detailed services in different positions. Before shipment, the product will undergo 45 kinds of detailed tests
3. Prior to delivery, the product must be rigorously inspected to ensure high quality in all aspects of performance, availability and more. The product is designed with a protection circuit which can totally ensure the safety of users
4. Our excellent R&D team has greatly improved the quality and performance of our products. It is packed with high-quality and sturdy packages
Electrica Characteristics | Nominal Voltage | 12.8V | ||||
| Nominal Capacity | 100Ah | |||||
| Energy | 1280Wh | |||||
| Internal Resistance | ≤150mΩ | |||||
| Cycle Life | ≥4000 cycles @1C 100%DOD | |||||
| Months Self Discharge | <3% | |||||
| Efficiency of Charge | 100% @0.5C | |||||
| Efficiency of Discharge | 96~99% @1C | |||||
| Standard Charge | Charge Voltage | 14.6±0.2V | ||||
| Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) | |||||
| Charger Current | 20A | |||||
| Max. Charge Current | 100A | |||||
| Charge Cut-off Voltage | 15.6V±0.2V | |||||
| Standard Discharge | Continuous Current | 100A | ||||
| Max. Pulse Current | 300A(<10s) | |||||
| Discharge Cut-off Voltage | 10.5V | |||||
| Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity | ||||
| Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |||||
| Storage Temperature | IP56 | |||||
| Water Dust Resistance | IP56 | |||||
| Mechanical | Cell & Method | 26650 4S36P | ||||
| Plastic Case | ABS | |||||
| Dimensions (in./mm.) | 335*170*210mm Customized | |||||
| Weight (lbs./kg.) | 25kg | |||||
| Terminal | T11 | |||||
| Protocol (optional) | SMBus/RS485/RS232 | |||||
| SOC (optional) | ||||||
Company Features
1. MeriTech Power Co.,Ltd. is equipped with strong research strength, having an R&D team dedicated to developing all types of new lithium battery low temperature .
2. MeriTech Power Co.,Ltd. makes a endeavor to bring better low temperature li-ion battery and better service to customers. Get an offer!
