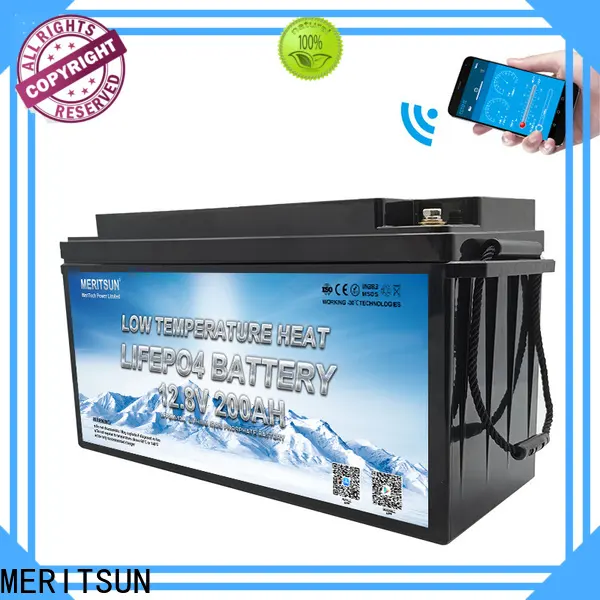

MERITSUN new lithium battery low temperature manufacturers for house
Model:
LFP200-12.8, Bluetooth Battery
Rated Voltage (V):
12V
Rated Capacity (Ah):
200AH
Supply Ability:
500000 Pieces per Month
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Approx Dimension (mm):
483*170*241
Approx Weight (Kg):
25kg
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Company Advantages
1. lithium battery low temperature from MeriTech Power Co.,Ltd. is designed with li-ion battery at low temperature performance. Before shipment, the product will undergo 45 kinds of detailed tests
2. MeriTech Power Co.,Ltd. provides high-qualified lithium battery low temperature products, competitive price and excellent service to all our customers. The product with a long service life can be used for more than 8 years
3. The product features high energy density. The lighter elements or compounds for the electrodes have been chosen and greatest reversible capacity of materials have been used. The weight of the product is about 40% of the weight of a comparable lead-acid battery
Company Features
1. MeriTech Power Co.,Ltd. strictly controls quality of lithium battery low temperature from raw material and production process.
2. MeriTech Power Co.,Ltd. focuses on creating a world-class brand with unique value creativity. Inquire!
1. lithium battery low temperature from MeriTech Power Co.,Ltd. is designed with li-ion battery at low temperature performance. Before shipment, the product will undergo 45 kinds of detailed tests
2. MeriTech Power Co.,Ltd. provides high-qualified lithium battery low temperature products, competitive price and excellent service to all our customers. The product with a long service life can be used for more than 8 years
3. The product features high energy density. The lighter elements or compounds for the electrodes have been chosen and greatest reversible capacity of materials have been used. The weight of the product is about 40% of the weight of a comparable lead-acid battery
Electrica Characteristics | Nominal Voltage | 12.8V | ||||
| Nominal Capacity | 200Ah | |||||
| Energy | 2560Wh | |||||
| Internal Resistance | ≤20mΩ | |||||
| Cycle Life | ≥4000 cycles @1C 100%DOD | |||||
| Months Self Discharge | <3% | |||||
| Efficiency of Charge | 100% @0.5C | |||||
| Efficiency of Discharge | 96~99% @1C | |||||
| Standard Charge | Charge Voltage | 14.6±0.2V | ||||
| Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) | |||||
| Charger Current | 80A | |||||
| Max. Charge Current | 100A | |||||
| Charge Cut-off Voltage | 14.6±0.2V | |||||
| Standard Discharge | Continuous Current | 100A | ||||
| Max. Pulse Current | 300A(<10s) | |||||
| Discharge Cut-off Voltage | 10.5V | |||||
| Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity | ||||
| Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |||||
| Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |||||
| Water Dust Resistance | IP56 | |||||
| Mechanical | Cell & Method | 4S2P | ||||
| Plastic Case | ABS | |||||
| Dimensions (in./mm.) | 483*170*241mm Customized | |||||
| Weight (lbs./kg.) | 25kg | |||||
| Terminal | T11 | |||||
| Protocol (optional) | SMBus/RS485/RS232 | |||||
| SOC (optional) | Bluetooth | |||||
Company Features
1. MeriTech Power Co.,Ltd. strictly controls quality of lithium battery low temperature from raw material and production process.
2. MeriTech Power Co.,Ltd. focuses on creating a world-class brand with unique value creativity. Inquire!
