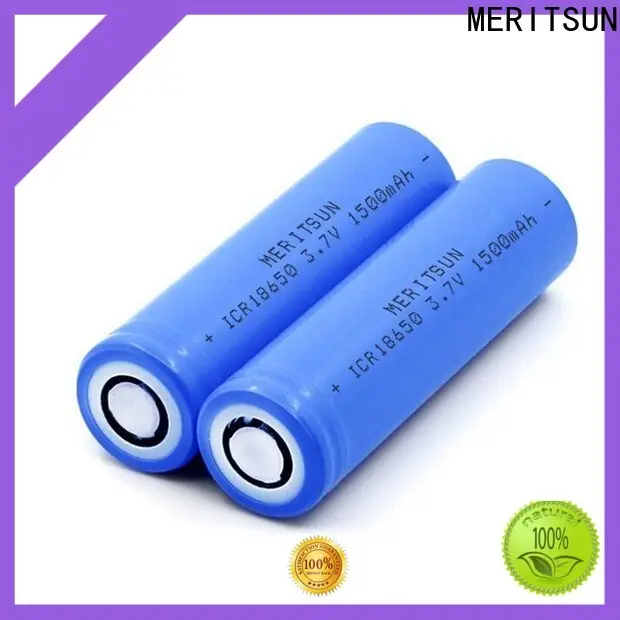

MERITSUN new 18650 lithium ion cells manufacturer for solar
Model:
ICR18650 3.7V 1500mAh
Rated Voltage (V):
3.7
Rated Capacity (Ah):
1500mAh
Supply Ability:
500000 Pieces per Month
MOQ:
10
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Approx Dimension (mm):
18650
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Company Advantages
1. 18650 lithium ion cells is scientific in design and simple in structure and is easy to assemble and disassemble.
2. MeriTech Power Co.,Ltd. will offer video to explain how to install and use 18650 lithium ion cells . The product with a long service life can be used for more than 8 years
3. For better durability and endurance, our professional engineers successfully developed 18650 lithium ion cells with high quality. It is of extremely low self-discharge rate and can be left unused for a longer time
Company Features
1. MeriTech Power Co.,Ltd. has been deeply devoted to the manufacture of 18650 lithium ion cells for many years.
2. The factory is equipped with highly effective production lines. The lines have many highly automatic manufacturing machines to guarantee stable output and consistent product quality.
3. MeriTech Power Co.,Ltd. helps customers to realize their value increase and win long-term development. Inquire online!
1. 18650 lithium ion cells is scientific in design and simple in structure and is easy to assemble and disassemble.
2. MeriTech Power Co.,Ltd. will offer video to explain how to install and use 18650 lithium ion cells . The product with a long service life can be used for more than 8 years
3. For better durability and endurance, our professional engineers successfully developed 18650 lithium ion cells with high quality. It is of extremely low self-discharge rate and can be left unused for a longer time
Product Description
/ For more details, please contact us！
| NO. | Items | Parameter | Remarks |
| 1 | Rated Capacity | 1500mAh | Discharge:0.2C Cut-off voltage:3.0V |
| Minimum Capacity | 1450mAh | ||
| 2 | Energy | 5.55Wh | |
| 3 | Nominal Voltage | 3.7V | |
| 4 | Open Voltage | ≥3.85V | |
| 5 | Load Voltage | ≥3.6V | 10Ω |
| 6 | Cycle Life | 500~1000 times | |
| 7 | Internal Impedance | ≤50mΩ | AC 1KHz after 50% charge |
| 8 | Charge voltage | 4.2V | |
| 9 | Standard charge current | 300mA | |
| 10 | Max charge current | 1500mA | |
| 11 | Standard discharge current | 300mA | |
| 12 | Max Discharge current | 10~25C | |
| 13 | Discharge cut-off voltage | 3.0V | |
| 14 | Operating Temperature | 0~+45℃ | Charge |
| -20~+60℃ | Discharge | ||
| 15 | Storage temperature for a long time | -20~25℃ | |
| 16 | Weight | 47±1g | |
| 17 | Dimensions-Diameter | 18.3±0.2mm | |
| Dimensions-Height | 65.3±0.2mm |
The Lithium Battery Cell Characteristic Curve , Please Refer To:
The Battery Advantages and Cells Consistency Countermeasures for
18650 Battery, Lithium Battery, Lipo Battery, Li-ion battery, LiFePO4 Battery,
Rechargeable Lithium ion Battery, Lithium Polymer Battery,
Lithium iron Phosphate Battery
The Battery Safety Assurance and Low Self Discharge for 18650 Battery, Lithium Battery,
Lipo Battery, Li-ion battery, LiFePO4 Battery, Rechargeable Lithium ion Battery,
Lithium Polymer Battery, Lithium iron Phosphate Battery
More Lithium Battery Cells Model Reference:
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. MeriTech Power Co.,Ltd. has been deeply devoted to the manufacture of 18650 lithium ion cells for many years.
2. The factory is equipped with highly effective production lines. The lines have many highly automatic manufacturing machines to guarantee stable output and consistent product quality.
3. MeriTech Power Co.,Ltd. helps customers to realize their value increase and win long-term development. Inquire online!
