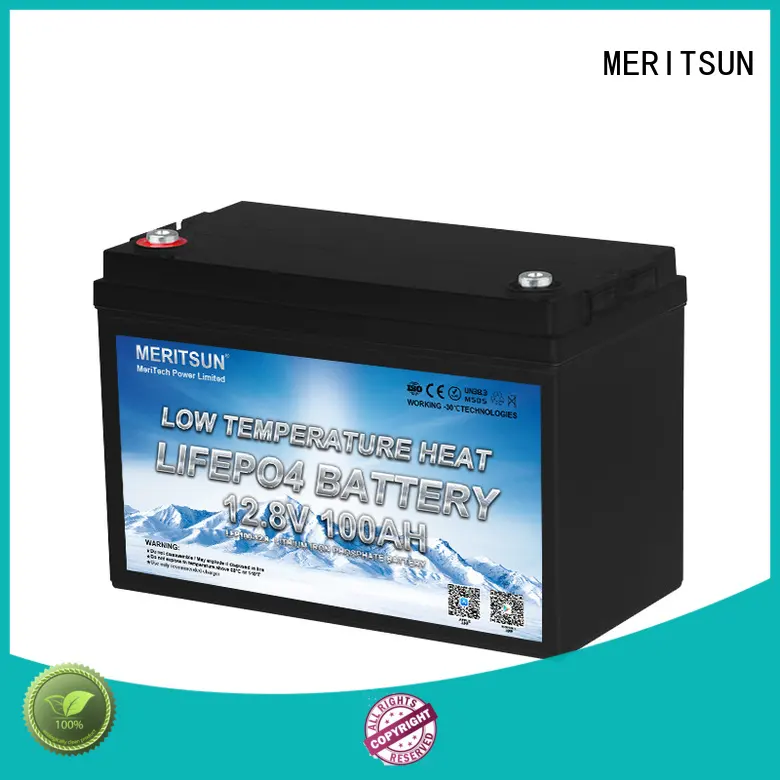

MERITSUN low temperature lithium ion battery for business for robot
Model:
LFP200-12.8, Bluetooth Battery
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Video Display
Application Scope
Established in 1999, MeriTech has 18 years of experience in providing solutions services in energy storage application industry. We dedicated to designing and manufacturing of LiFePO4 and lithium cells and integrated battery packs for energy system.'s battery solutions is widely used in the Manufacturing Electrical Equipment & Supplies Batteries industry and is widely recognized by customers.Established in 1999, MeriTech has 18 years of experience in providing solutions services in energy storage application industry. We dedicated to designing and manufacturing of LiFePO4 and lithium cells and integrated battery packs for energy system. is rich in industrial experience and is sensitive about customers' needs. We can provide comprehensive and one-stop solutions based on customers' actual situations.
1. MERITSUN low temperature lithium ion battery stands out from the crowd with technological innovation.
2. The product has been tested on various quality parameters and has been proven to be high-quality.
3. Its quality has been well controlled by strictly conducting quality control system.
4. Catering to different applications, including hotels, residences, and offices, the product enjoys great popularities among space designers.
5. Past experience has shown that the use of this product will bring an increase of intelligence and alertness of laborers.
Electrica Characteristics | Nominal Voltage | 12.8V | ||||
| Nominal Capacity | 100Ah | |||||
| Energy | 1280Wh | |||||
| Internal Resistance | ≤150mΩ | |||||
| Cycle Life | ≥4000 cycles @1C 100%DOD | |||||
| Months Self Discharge | <3% | |||||
| Efficiency of Charge | 100% @0.5C | |||||
| Efficiency of Discharge | 96~99% @1C | |||||
| Standard Charge | Charge Voltage | 14.6±0.2V | ||||
| Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) | |||||
| Charger Current | 20A | |||||
| Max. Charge Current | 100A | |||||
| Charge Cut-off Voltage | 15.6V±0.2V | |||||
| Standard Discharge | Continuous Current | 100A | ||||
| Max. Pulse Current | 300A(<10s) | |||||
| Discharge Cut-off Voltage | 10.5V | |||||
| Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity | ||||
| Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |||||
| Storage Temperature | IP56 | |||||
| Water Dust Resistance | IP56 | |||||
| Mechanical | Cell & Method | 26650 4S36P | ||||
| Plastic Case | ABS | |||||
| Dimensions (in./mm.) | 335*170*210mm Customized | |||||
| Weight (lbs./kg.) | 25kg | |||||
| Terminal | T11 | |||||
| Protocol (optional) | SMBus/RS485/RS232 | |||||
| SOC (optional) | ||||||
Company Features
1. After years of development, MeriTech Power Co.,Ltd. has become an expert in providing reliable low temperature charging lithium ion manufacturing services to customers.
2. Our company has attracted and retained many individuals of high caliber. Their unique combination of expertise and experience allows us to always provide professional and tailor-made product solutions.
3. MeriTech Power Co.,Ltd. intends to make a renowned brand with high efficiency, higher quality and superb support. Please contact us! We aim to capture the leading position in low temperature lithium ion battery industry by developing products with latest technology. Please contact us! MeriTech Power Co.,Ltd.'s mission is to provide the best service to our clients through our global partners. Please contact us! We hope that our professional low temperature lithium battery and services will win the market. Please contact us!
