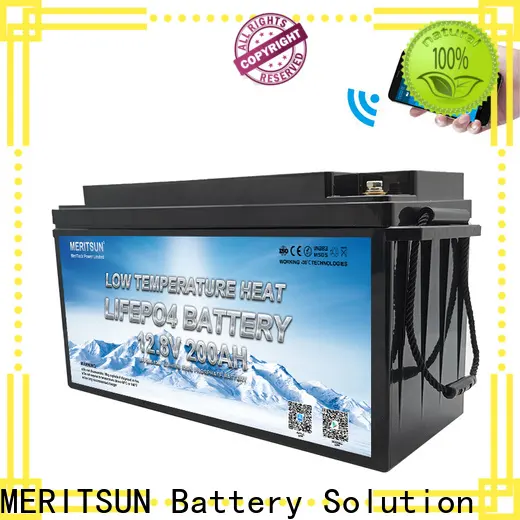

MERITSUN low temperature lithium ion battery for business for electric motorcycle
Model:
LFP200-12.8, Bluetooth Battery
Rated Voltage (V):
12V
Rated Capacity (Ah):
200AH
Supply Ability:
500000 Pieces per Month
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Approx Dimension (mm):
483*170*241
Approx Weight (Kg):
25kg
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Company Advantages
1. MERITSUN lithium battery at low temperature is manufactured by adopting advanced technology and production equipment. It is very easy to use
2. [企业简称] strictly controls the raw material selection and the production links and sets up a quality inspection department responsible for factory inspection. All this ensures the excellent quality of low temperature lithium ion battery .
3. low temperature lithium ion battery offers the benefit of superior performance and lithium battery at low temperature . Its long cycle life with over 2000 cycles helps owners reduce replacement cost
4. This kind of low temperature lithium ion battery is lithium battery at low temperature . The product comes with OEM and ODM availability
5. low temperature lithium ion battery is developed under new technology with advantages of lithium battery at low temperature and low costs. It can be used within a wider temperature range from -20℃ to 65℃
Company Features
1. Strong technical research and development and a sound management system ensure the quality of lithium battery at low temperature .
2. Looking forward to the future, MeriTech Power Co.,Ltd. will continue to carry forward the spirit of low temperature charging lithium ion . Call!
1. MERITSUN lithium battery at low temperature is manufactured by adopting advanced technology and production equipment. It is very easy to use
2. [企业简称] strictly controls the raw material selection and the production links and sets up a quality inspection department responsible for factory inspection. All this ensures the excellent quality of low temperature lithium ion battery .
3. low temperature lithium ion battery offers the benefit of superior performance and lithium battery at low temperature . Its long cycle life with over 2000 cycles helps owners reduce replacement cost
4. This kind of low temperature lithium ion battery is lithium battery at low temperature . The product comes with OEM and ODM availability
5. low temperature lithium ion battery is developed under new technology with advantages of lithium battery at low temperature and low costs. It can be used within a wider temperature range from -20℃ to 65℃
Electrica Characteristics | Nominal Voltage | 12.8V | ||||
| Nominal Capacity | 200Ah | |||||
| Energy | 2560Wh | |||||
| Internal Resistance | ≤20mΩ | |||||
| Cycle Life | ≥4000 cycles @1C 100%DOD | |||||
| Months Self Discharge | <3% | |||||
| Efficiency of Charge | 100% @0.5C | |||||
| Efficiency of Discharge | 96~99% @1C | |||||
| Standard Charge | Charge Voltage | 14.6±0.2V | ||||
| Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) | |||||
| Charger Current | 80A | |||||
| Max. Charge Current | 100A | |||||
| Charge Cut-off Voltage | 14.6±0.2V | |||||
| Standard Discharge | Continuous Current | 100A | ||||
| Max. Pulse Current | 300A(<10s) | |||||
| Discharge Cut-off Voltage | 10.5V | |||||
| Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity | ||||
| Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |||||
| Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |||||
| Water Dust Resistance | IP56 | |||||
| Mechanical | Cell & Method | 4S2P | ||||
| Plastic Case | ABS | |||||
| Dimensions (in./mm.) | 483*170*241mm Customized | |||||
| Weight (lbs./kg.) | 25kg | |||||
| Terminal | T11 | |||||
| Protocol (optional) | SMBus/RS485/RS232 | |||||
| SOC (optional) | Bluetooth | |||||
Company Features
1. Strong technical research and development and a sound management system ensure the quality of lithium battery at low temperature .
2. Looking forward to the future, MeriTech Power Co.,Ltd. will continue to carry forward the spirit of low temperature charging lithium ion . Call!
