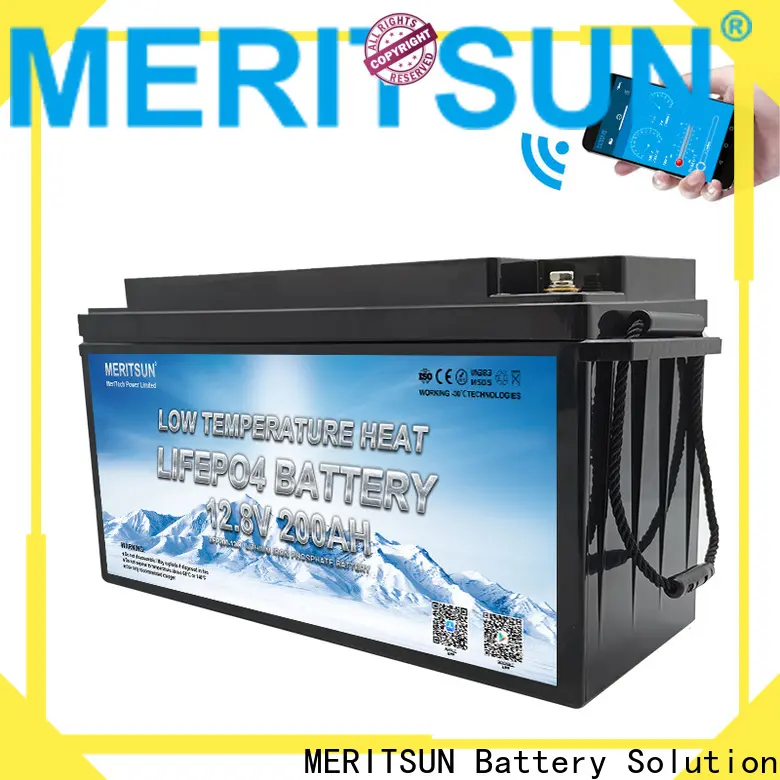

MERITSUN low temperature lithium ion battery factory for house
Model:
LFP200-12.8, Bluetooth Battery
Rated Voltage (V):
12V
Rated Capacity (Ah):
200AH
Supply Ability:
500000 Pieces per Month
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Approx Dimension (mm):
483*170*241
Approx Weight (Kg):
25kg
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Company Advantages
1. low temperature lithium ion battery is novel in design and compact in structure. Moreover, it is easy to assemble and disassemble, and is well received by customers.
2. The mere reusability of this product means that it is able to decrease the need for constant manufacturing and transportation. It is produced in strict accordance with the UL standard
3. low temperature lithium ion battery is manufactured based on superior materials. It has good corrosion resistance, heat resistance, explosion-proof and sealing performance. By virtue of built-in battery pack, it has large capacity, high power, and excellent charge and discharge performance.
4. low temperature lithium ion battery can be used for a long time by virtue of large capacity and low self-discharge rate. Moreover, the excellent recharge acceptance makes it recycling and eco-friendly.
5. low temperature lithium ion battery is equipped with high-quality terminals. It has good electrical conductivity and low self-discharge rate. In the case of the same capacity, it can support the equipment for a longer time.
Company Features
1. MeriTech Power Co.,Ltd. is internationally outstanding in the field of low temperature lithium ion battery .
2. The complete modern management system is available in MeriTech Power Co.,Ltd.'s manufacturing plant.
3. We will become a human-oriented and energy-saving company. To create a future that is green and clean for the next generations, we will try to upgrade our production process to reduce emission, waste, and carbon footprint.
1. low temperature lithium ion battery is novel in design and compact in structure. Moreover, it is easy to assemble and disassemble, and is well received by customers.
2. The mere reusability of this product means that it is able to decrease the need for constant manufacturing and transportation. It is produced in strict accordance with the UL standard
3. low temperature lithium ion battery is manufactured based on superior materials. It has good corrosion resistance, heat resistance, explosion-proof and sealing performance. By virtue of built-in battery pack, it has large capacity, high power, and excellent charge and discharge performance.
4. low temperature lithium ion battery can be used for a long time by virtue of large capacity and low self-discharge rate. Moreover, the excellent recharge acceptance makes it recycling and eco-friendly.
5. low temperature lithium ion battery is equipped with high-quality terminals. It has good electrical conductivity and low self-discharge rate. In the case of the same capacity, it can support the equipment for a longer time.
Electrica Characteristics | Nominal Voltage | 12.8V | ||||
| Nominal Capacity | 200Ah | |||||
| Energy | 2560Wh | |||||
| Internal Resistance | ≤20mΩ | |||||
| Cycle Life | ≥4000 cycles @1C 100%DOD | |||||
| Months Self Discharge | <3% | |||||
| Efficiency of Charge | 100% @0.5C | |||||
| Efficiency of Discharge | 96~99% @1C | |||||
| Standard Charge | Charge Voltage | 14.6±0.2V | ||||
| Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) | |||||
| Charger Current | 80A | |||||
| Max. Charge Current | 100A | |||||
| Charge Cut-off Voltage | 14.6±0.2V | |||||
| Standard Discharge | Continuous Current | 100A | ||||
| Max. Pulse Current | 300A(<10s) | |||||
| Discharge Cut-off Voltage | 10.5V | |||||
| Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity | ||||
| Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |||||
| Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |||||
| Water Dust Resistance | IP56 | |||||
| Mechanical | Cell & Method | 4S2P | ||||
| Plastic Case | ABS | |||||
| Dimensions (in./mm.) | 483*170*241mm Customized | |||||
| Weight (lbs./kg.) | 25kg | |||||
| Terminal | T11 | |||||
| Protocol (optional) | SMBus/RS485/RS232 | |||||
| SOC (optional) | Bluetooth | |||||
Company Features
1. MeriTech Power Co.,Ltd. is internationally outstanding in the field of low temperature lithium ion battery .
2. The complete modern management system is available in MeriTech Power Co.,Ltd.'s manufacturing plant.
3. We will become a human-oriented and energy-saving company. To create a future that is green and clean for the next generations, we will try to upgrade our production process to reduce emission, waste, and carbon footprint.
