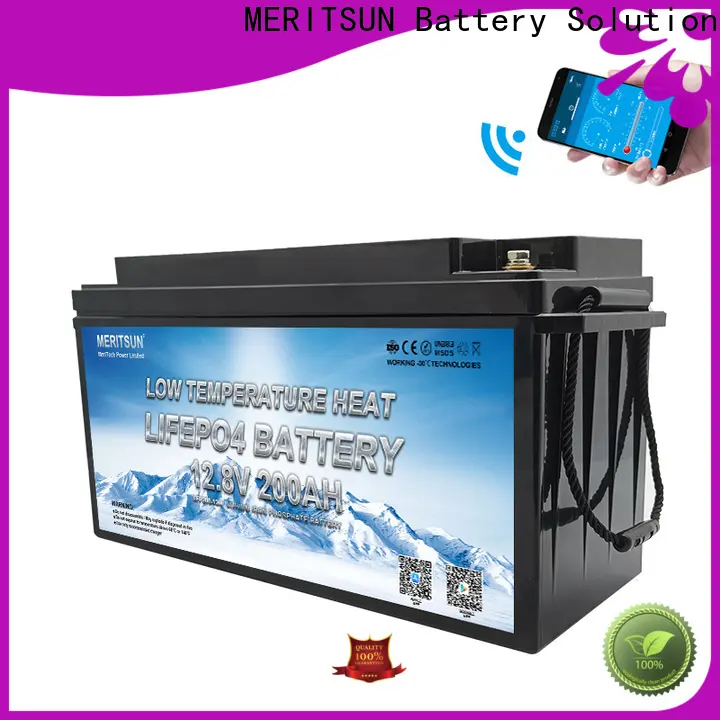

MERITSUN low temperature lithium battery manufacturers for electric motorcycle2
Model:
LFP200-12.8, Bluetooth Battery
Rated Voltage (V):
12V
Rated Capacity (Ah):
200AH
Supply Ability:
500000 Pieces per Month
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Approx Dimension (mm):
483*170*241
Approx Weight (Kg):
25kg
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Company Advantages
1. MERITSUN lithium ion battery at low temperature is developed by the experienced in-house R&D team. Various parameters relating to the performance of battery have been taken into consideration by our technicians, including discharge, open-circuit voltage, capacity, and internal resistance. Using LiFePO4 along with the integrated BMS, the product features overcharge and discharge protection
2. This product is effective in relieving foot neuralgia, ankle pain, and arch pain. It will offer enough comfort and cushion to the wearers' feet when they stand or walk. It is produced in strict accordance with the UL standard
3. The optimum quality and excellent performance makes the product the most sought-after product.
Company Features
1. MeriTech Power Co.,Ltd. is the largest and most powerful low temperature lithium battery operation in the world.
2. We have excellent employees. Beyond their strong product and systems knowledge as well as technical competence, those men and women uphold the strong values that define our company culture.
3. MeriTech Power Co.,Ltd. aims to be the leader in the low temperature lithium ion battery industry. Call now!
1. MERITSUN lithium ion battery at low temperature is developed by the experienced in-house R&D team. Various parameters relating to the performance of battery have been taken into consideration by our technicians, including discharge, open-circuit voltage, capacity, and internal resistance. Using LiFePO4 along with the integrated BMS, the product features overcharge and discharge protection
2. This product is effective in relieving foot neuralgia, ankle pain, and arch pain. It will offer enough comfort and cushion to the wearers' feet when they stand or walk. It is produced in strict accordance with the UL standard
3. The optimum quality and excellent performance makes the product the most sought-after product.
Electrica Characteristics | Nominal Voltage | 12.8V | ||||
| Nominal Capacity | 200Ah | |||||
| Energy | 2560Wh | |||||
| Internal Resistance | ≤20mΩ | |||||
| Cycle Life | ≥4000 cycles @1C 100%DOD | |||||
| Months Self Discharge | <3% | |||||
| Efficiency of Charge | 100% @0.5C | |||||
| Efficiency of Discharge | 96~99% @1C | |||||
| Standard Charge | Charge Voltage | 14.6±0.2V | ||||
| Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) | |||||
| Charger Current | 80A | |||||
| Max. Charge Current | 100A | |||||
| Charge Cut-off Voltage | 14.6±0.2V | |||||
| Standard Discharge | Continuous Current | 100A | ||||
| Max. Pulse Current | 300A(<10s) | |||||
| Discharge Cut-off Voltage | 10.5V | |||||
| Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity | ||||
| Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |||||
| Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |||||
| Water Dust Resistance | IP56 | |||||
| Mechanical | Cell & Method | 26650 4S36P | ||||
| Plastic Case | ABS | |||||
| Dimensions (in./mm.) | 483*170*241mm Customized | |||||
| Weight (lbs./kg.) | 25kg | |||||
| Terminal | T11 | |||||
| Protocol (optional) | SMBus/RS485/RS232 | |||||
| SOC (optional) | Bluetooth | |||||
Company Features
1. MeriTech Power Co.,Ltd. is the largest and most powerful low temperature lithium battery operation in the world.
2. We have excellent employees. Beyond their strong product and systems knowledge as well as technical competence, those men and women uphold the strong values that define our company culture.
3. MeriTech Power Co.,Ltd. aims to be the leader in the low temperature lithium ion battery industry. Call now!
