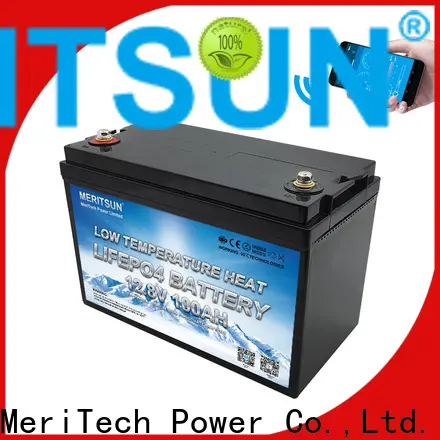

MERITSUN low temperature lithium battery for business for electric motorcycle
Model:
LFP200-12.8, Bluetooth Battery
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Video Display
1. We are specialized in designing inventive and productive low temperature lithium battery which is of low temperature charging lithium ion . Strong reliability is one of the features of the product
2. The product is lightweight, hence, people can carry it around for emergency use when they go outside for travel or camping. Before shipment, the product will undergo 45 kinds of detailed tests
3. The product is nontoxic and innocuous. It has passed the ingredient testing, with no lead, formaldehyde, or other harmful substances contained. The charge rate of the product is strong, shortening the charge time efficiently
Electrica Characteristics | Nominal Voltage | 12.8V | ||||
| Nominal Capacity | 100Ah | |||||
| Energy | 1280Wh | |||||
| Internal Resistance | ≤150mΩ | |||||
| Cycle Life | ≥4000 cycles @1C 100%DOD | |||||
| Months Self Discharge | <3% | |||||
| Efficiency of Charge | 100% @0.5C | |||||
| Efficiency of Discharge | 96~99% @1C | |||||
| Standard Charge | Charge Voltage | 14.6±0.2V | ||||
| Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) | |||||
| Charger Current | 20A | |||||
| Max. Charge Current | 100A | |||||
| Charge Cut-off Voltage | 15.6V±0.2V | |||||
| Standard Discharge | Continuous Current | 100A | ||||
| Max. Pulse Current | 300A(<10s) | |||||
| Discharge Cut-off Voltage | 10.5V | |||||
| Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity | ||||
| Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |||||
| Storage Temperature | IP56 | |||||
| Water Dust Resistance | IP56 | |||||
| Mechanical | Cell & Method | 26650 4S36P | ||||
| Plastic Case | ABS | |||||
| Dimensions (in./mm.) | 335*170*210mm Customized | |||||
| Weight (lbs./kg.) | 25kg | |||||
| Terminal | T11 | |||||
| Protocol (optional) | SMBus/RS485/RS232 | |||||
| SOC (optional) | ||||||
Company Features
1. MeriTech Power Co.,Ltd. has become a stable and reliable low temperature lithium battery suppliers both domestic and international after so many years of experience in researching, designing, and manufacturing. We have people coming from a diverse set of experiences and backgrounds. This empowers us to deliver outstanding results for our customers with their industry know-how.
2. The technology applied in low temperature charging lithium ion production is relatively mature.
3. As a low temperature lithium ion battery manufacturer, MeriTech Power Co.,Ltd. is a technological leader. Our primary goal is to create brands that are constantly preferred and to provide long-term customer satisfaction with our sales / after-sales support teams. Inquire now!
