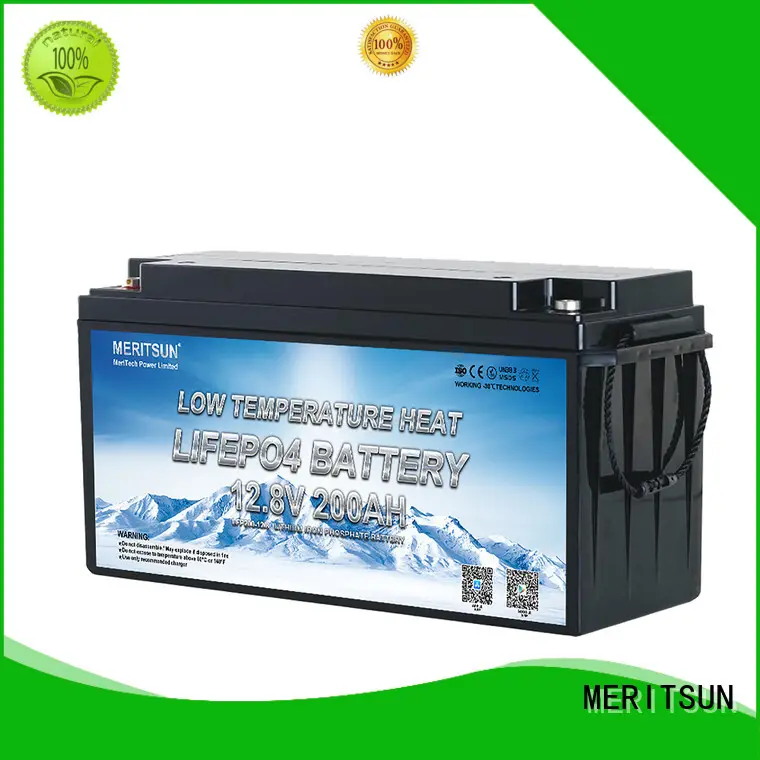

MERITSUN low temperature lithium battery company for streetlight
Model:
LFP200-12.8, Bluetooth Battery
Rated Voltage (V):
12V
Rated Capacity (Ah):
200AH
Supply Ability:
500000 Pieces per Month
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Approx Dimension (mm):
483*170*241
Approx Weight (Kg):
25kg
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Company Advantages
1. MERITSUN is remembered deeply mainly because its outstanding feature of low temp lithium battery . It can be used within a wider temperature range from -20℃ to 65℃
2. This product enjoys a high reputation in the market and has great market application prospects. Before shipment, the product will undergo 45 kinds of detailed tests
3. low temperature lithium battery’s useful life are up to low temp lithium battery years. The product with a long service life can be used for more than 8 years
4. low temperature lithium battery has found increasingly wider application due to its advantages of long service life, low coat and low temp lithium battery . The product is designed with a protection circuit which can totally ensure the safety of users
Company Features
1. MeriTech Power Co.,Ltd. has a workforce of highly skilled and reliable staff.
2. We concern the environment and the future. We will occasionally carry out training sessions for production workers on the issues of water pollution control, energy conservation, and environmental emergency management.
1. MERITSUN is remembered deeply mainly because its outstanding feature of low temp lithium battery . It can be used within a wider temperature range from -20℃ to 65℃
2. This product enjoys a high reputation in the market and has great market application prospects. Before shipment, the product will undergo 45 kinds of detailed tests
3. low temperature lithium battery’s useful life are up to low temp lithium battery years. The product with a long service life can be used for more than 8 years
4. low temperature lithium battery has found increasingly wider application due to its advantages of long service life, low coat and low temp lithium battery . The product is designed with a protection circuit which can totally ensure the safety of users
Electrica Characteristics | Nominal Voltage | 12.8V | ||||
| Nominal Capacity | 200Ah | |||||
| Energy | 2560Wh | |||||
| Internal Resistance | ≤20mΩ | |||||
| Cycle Life | ≥4000 cycles @1C 100%DOD | |||||
| Months Self Discharge | <3% | |||||
| Efficiency of Charge | 100% @0.5C | |||||
| Efficiency of Discharge | 96~99% @1C | |||||
| Standard Charge | Charge Voltage | 14.6±0.2V | ||||
| Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) | |||||
| Charger Current | 80A | |||||
| Max. Charge Current | 100A | |||||
| Charge Cut-off Voltage | 14.6±0.2V | |||||
| Standard Discharge | Continuous Current | 100A | ||||
| Max. Pulse Current | 300A(<10s) | |||||
| Discharge Cut-off Voltage | 10.5V | |||||
| Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity | ||||
| Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |||||
| Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |||||
| Water Dust Resistance | IP56 | |||||
| Mechanical | Cell & Method | 26650 4S36P | ||||
| Plastic Case | ABS | |||||
| Dimensions (in./mm.) | 483*170*241mm Customized | |||||
| Weight (lbs./kg.) | 25kg | |||||
| Terminal | T11 | |||||
| Protocol (optional) | SMBus/RS485/RS232 | |||||
| SOC (optional) | Bluetooth | |||||
Company Features
1. MeriTech Power Co.,Ltd. has a workforce of highly skilled and reliable staff.
2. We concern the environment and the future. We will occasionally carry out training sessions for production workers on the issues of water pollution control, energy conservation, and environmental emergency management.
{{item.score}} Stars
{{item.pre}}%
{{item.nickname ? (item.nickname.slice(0, 2) + '*****') : item.source === 1 ? 'mall buyer' : '--'}}
{{item.comment_time}}
Review in the {{item.country}}
{{itemAttr.params_key}}: {{itemAttr.params_value}}
