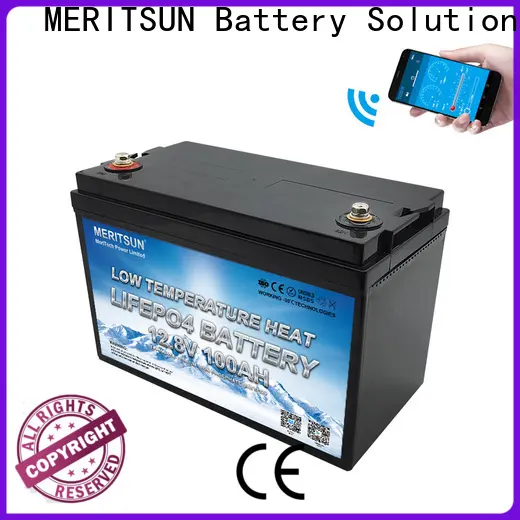

MERITSUN low temperature li-ion battery manufacturers for electric motorcycle
Model:
LFP200-12.8, Bluetooth Battery
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Video Display
Electrica Characteristics | Nominal Voltage | 12.8V | ||||
| Nominal Capacity | 100Ah | |||||
| Energy | 1280Wh | |||||
| Internal Resistance | ≤150mΩ | |||||
| Cycle Life | ≥4000 cycles @1C 100%DOD | |||||
| Months Self Discharge | <3% | |||||
| Efficiency of Charge | 100% @0.5C | |||||
| Efficiency of Discharge | 96~99% @1C | |||||
| Standard Charge | Charge Voltage | 14.6±0.2V | ||||
| Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) | |||||
| Charger Current | 20A | |||||
| Max. Charge Current | 100A | |||||
| Charge Cut-off Voltage | 15.6V±0.2V | |||||
| Standard Discharge | Continuous Current | 100A | ||||
| Max. Pulse Current | 300A(<10s) | |||||
| Discharge Cut-off Voltage | 10.5V | |||||
| Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity | ||||
| Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |||||
| Storage Temperature | IP56 | |||||
| Water Dust Resistance | IP56 | |||||
| Mechanical | Cell & Method | 26650 4S36P | ||||
| Plastic Case | ABS | |||||
| Dimensions (in./mm.) | 335*170*210mm Customized | |||||
| Weight (lbs./kg.) | 25kg | |||||
| Terminal | T11 | |||||
| Protocol (optional) | SMBus/RS485/RS232 | |||||
| SOC (optional) | ||||||
