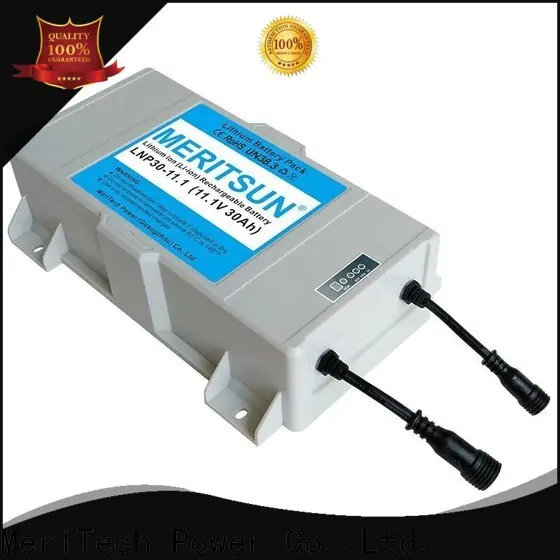

MERITSUN long cycle life solar street lighting system factory direct supply for garden
Items | Parameter | |
Battery | Voltage | 12V (Nominal voltage:11.1V) |
Capacity | 30Ah ±3%@23℃ | |
Battery cell | 18650 2000mAh@23℃ | |
Protection class | IP67 | |
Shell material | ABS | |
Fire-proof level | UL 94V-0 | |
Weight | Approx 3.62Kg | |
Size | 286*176*75mm | |
Operating temperature | -20~60℃ | |
Life | 5~8 Year | |
Status Indicator | √ | |
Infrared remote control | √ (Face the signal receiver within 6 meters) | |
Rainy weather | 3~21 Days | |
Control | Charging mode | PWM / MPPT |
Output mode | Time control / light control / energy saving mode (Can be set) | |
Over charge voltage | 12.6V | |
Over discharge voltage | 9.0V | |
Over temperature protection | 80℃ | |
Energy saving control | Can be set | |
Light control voltage | 5V | |
Light control delay | 1min | |
Recommended PV configuration | Nominal voltage | 18V |
Power | ≤100W (Can be set) | |
Recommended LED configuration | Load power | ≤100W (Can be set) |
Load voltage (lamp beads combination) | 5~60V(5~18S) | |
OBM / OEM / ODM Service
The OBM / OEM / ODM Service with regard to 12V 30Ah Solar Street Light Rechargeable LiFePO4 Lithium ion Battery Easy Replace for Existing ≤100W Solar Street Lamp Pole
MeriTech is focusing on new energy, Global market changes of battery, Through market research to constant understand customers needs in order to build a perfect service network,Own many experienced engineers and technicians, to provide comprehensive, in-depth, quickly and attentive service for you. We could response your request immediately.
Part of Worldwide Partners
We Treasure Your Trust
on us by high-quality products with honesty and professional service
MeriTech Power Specialist will estimate your power needs, identify potential problem areas and recommend a cost-effective solution. What you'll get:
1. The global optimum acquisition price for any required hardware
2. Installation considerations
3. Ongoing support options
Professional Certification
MeriTech Power Limited has：
1. An excellent team which is experienced with market and has strong techni-cal capability to customize cost effective.
2. Cleaner production enterprise in Guangzhou, China.
3. OEM/ODM services backed by nearly 20 years' R&D experience.
Technology info
The Technology info with regard to 12V 30Ah Solar Street Light Rechargeable LiFePO4 Lithium ion Battery Easy Replace for Existing ≤100W Solar Street Lamp Pole
The Factors of Quality Guarantee for Solar Street Light Rechargeable Lipo Lithium ion Battery
(First-class quality management system, Professional technical form.)
MERITSUN Lithium Battery BMS / PCB / PCM
Li-ion cells should always be used with a protection circuit to prevent the cell from over charging or over dis-charging. Choosing the correct circuit and applying it appropriately is vital to the longevity your batteries and your own safety. MeriTech test each Cells and BMS/PCB/PCM before manufacturing and promise it is functional and safe.
BMS / PCB / PCM is the "heart" of Lithium battery pack. BMS (Battery Management System) is any electronic system that manages a rechargeable battery (cell or battery pack), such as by monitoring its state, calculating secondary data, reporting that data, protecting the battery, controlling its environment, and balancing it.
