Company Advantages1. MERITSUN lithium ion home battery is completed by passing through several basic processes including cutting, sewing, assembling, and decorating. Supported by the lead-acid battery, it has a high discharge rate while maintaining high energy capacity
2. This product can be a major design element. Designers can use it to establish a pleasing sense of order in every space. Made of reliable chemical substances, the product is of superior safety
3. The product is rather safe to use. Any potential hazards have been assessed and handled in accordance with strict guidelines to eliminate any health issues. The product is characterized by thermal performance
4. This product is able to resist impacts without any deformation. It has no tendency to crack or break under repeated stress from the foot. The charge rate of the product is strong, shortening the charge time efficiently
5. This product is durable. It has a long-lasting and reliable frame made of materials that are not prone to oxidation with seasonal changes in humidity. The weight of the product is about 40% of the weight of a comparable lead-acid battery

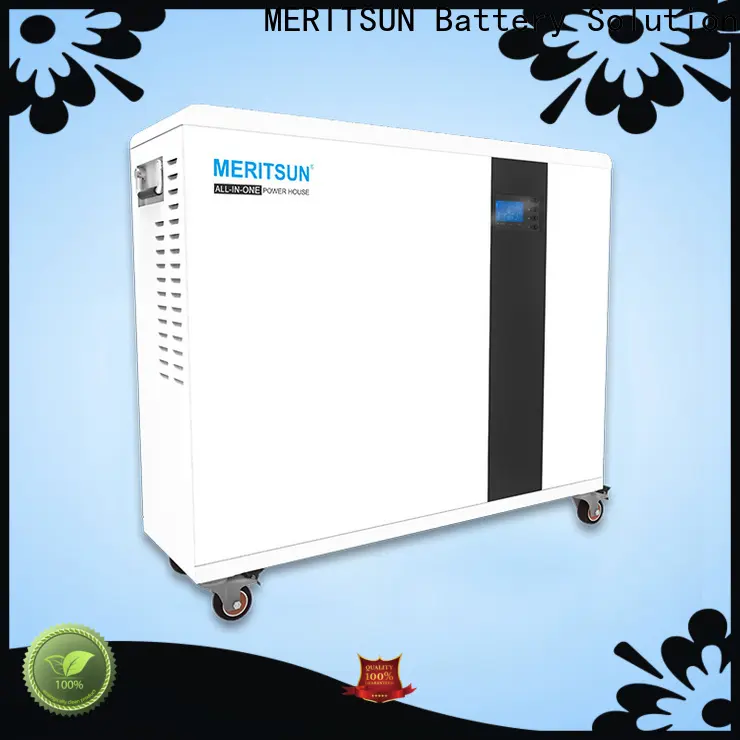

![MERITSUN long cycle life house power battery series for house 11]()
Feature
1.Built in Inverter and Smart BMS.Save installation time and labor.
2.WiFi App Management Optional.
3.Longer Cycle Life:6000 Cycle Life @80%DOD.
4.Easy to move with wheels.Compact and portable design,indoor and outdoor workable.
5.Triple input:Solar energy charging;Utility Grid charging and Diesel Engine charging.
| Models | AI 3K | AI 5K |
| Battery |
| Nominal Voltage [V] | 51.2 |
| Voltage Range [V] | 44.8~57.6 |
| Capacity | 3kWH | 5kWH |
| Max.discharge rate | 0.7C | 0.7C |
| Max.charge rate | 0.5C | 0.5C |
| Battery Type | LiFePO Battery
|
AC Output
|
| Rated Power | 3000VA | 5000VA |
| Overload Capacity | 120% (5s) |
| 200% (100ms) |
| Output Voltage | 230Vac±2% |
| Output Current | 13.7 A | 22 A |
| Rated Frequency | 50/60Hz |
| VTHD | 3% |
| Transfer Time | ＜10ms |
| Output Wave | Pure Sine Wave |
| Output Type | Multi-purpose Socket×2 |
| AC Input Voltage Range | 170~280Vac |
| AC Input Frequency | 50Hz/60Hz |
Max AC Charge Current(Battery) | 40A | 60A |
| PV Input |
Max. PV Power(Recommended) | 3000w | 4000w |
| Max. PV Voltage | 145V |
| MPPT Range | 60V~115V |
Max PV Charge Current(Battery) | 60A | 80A |
| Operating Conditions |
| Operating Temperature | 0~55℃ |
| Storage Temperature | -15℃~60℃ |
| Humidity | 5%~95% |
| Cooling Strategy | Fan
|
| Weight [kg] | 42 | 60 |
| Dimension [W x H x D, mm] | 700*580*230 | 700*580*230 |
| Enclosure Protection Rating | IP31 |
| Communication | Wifi(Remote) |
| Work Mode |
| Solar First | Solar and UPS |
| Utility First | UPS and Backup |
| Solar—Battery—Utility | Load Match Mode |
![MERITSUN long cycle life house power battery series for house 12]()
![MERITSUN long cycle life house power battery series for house 13]()
![MERITSUN long cycle life house power battery series for house 14]()
![MERITSUN long cycle life house power battery series for house 15]()
![MERITSUN long cycle life house power battery series for house 16]()
![MERITSUN long cycle life house power battery series for house 17]()
![MERITSUN long cycle life house power battery series for house 18]()
![MERITSUN long cycle life house power battery series for house 19]()
![MERITSUN long cycle life house power battery series for house 20]()
Company Features1. Having accumulating years of experience in manufacturing of lithium ion home battery, MeriTech Power Co.,Ltd. has taken its place among reliable manufacturers.
2. MeriTech Power Co.,Ltd. masters mature technology and has perfect quality assurance system.
3. The goal that MERITSUN commits to be the leading house power battery manufacturer turns to be important. Get an offer!
