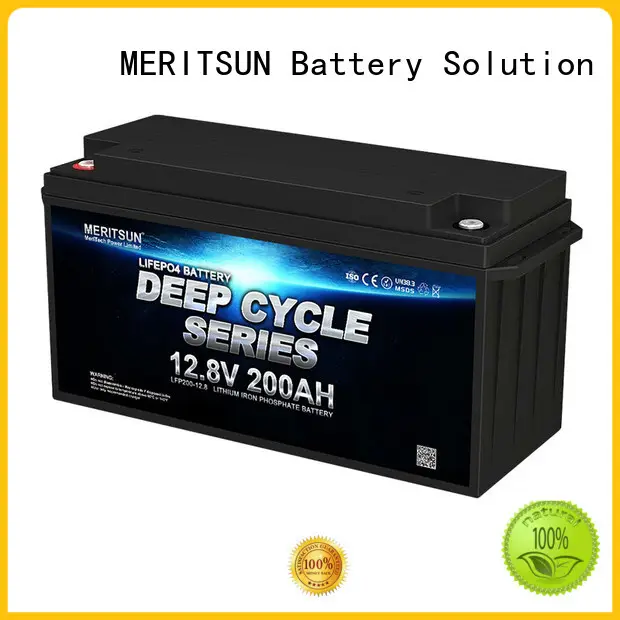

MERITSUN lithium iron battery supplier for building
1. The performance of lithium iron battery is greatly improved with the use of lithium iron phosphate battery material. The weight of the product is about 40% of the weight of a comparable lead-acid battery
2. The loyalty of our staff keeps MERITSUN strong business competition. The product comes with OEM and ODM availability
3. This product enjoys a long service life. The materials used in it, including active materials and electrolyte, feature high stability. It is packed with high-quality and sturdy packages
4. It has the advantage of a low self-discharge rate. Its materials, including an anode, cathode, and electrolyte are all made based on a precise formula which aims to achieve maximum electricity performance. Using LiFePO4 along with the integrated BMS, the product features overcharge and discharge protection
5. The product is characterized by low internal resistance. Its conductive substrate is optimized to reduce the contact resistance between anode and cathode materials. It is of extremely low self-discharge rate and can be left unused for a longer time
Electrical Characteristics | Nominal Voltage | 12.8V (12V) |
Nominal Capacity | 200Ah | |
Energy | 2560Wh | |
Internal Resistance | ≤180mΩ | |
Cycle Life | >4000 cycles @1C 80%DOD | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Voltage | 14.6±0.2V |
Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) | |
Charger Current | 60A | |
Max. Charge Current | 80A | |
Charge Cut-off Voltage | 15.6V±0.2V | |
Standard Discharge | Continuous Current | 60A |
Max. Pulse Current | 350A(<10s) | |
Discharge Cut-off Voltage | 8V | |
Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
Water Dust Resistance | IP55 | |
Mechanical | Cell & Method | 3.2V10Ah 4S20P |
Plastic Case | ABS | |
Dimensions (in./mm.) | 485*170*245mm | |
Weight (lbs./kg.) | 25kg | |
Terminal | / | |
Protocol (optional) | / | |
SOC (optional) | / |
MeriTech is focusing on new energy, Global market changes of battery, Through market research to constant understand customers needs in order to build a perfect service network,Own many experienced engineers and technicians, to provide comprehensive, in-depth, quickly and attentive service for you. We could response your request immediately.
MeriTech Power Specialist will estimate your power needs, identify potential problem areas and recommend a cost-effective solution. What you'll get:
1. The global optimum acquisition price for any required hardware
2. Installation considerations
3. Ongoing support options
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
Company Features
1. Fully engaged in the R&D, design, and manufacturing of 24 volt lifepo4 battery pack , MeriTech Power Co.,Ltd. is renowned as a significant market player.
2. Staff working in MeriTech Power Co.,Ltd. are all well-trained.
3. We regard innovation as a major approach for us to achieve greater success. By increasing investment in the R&D sector and cultivating a pool of talents, we are committed to strengthening our innovative ability.
