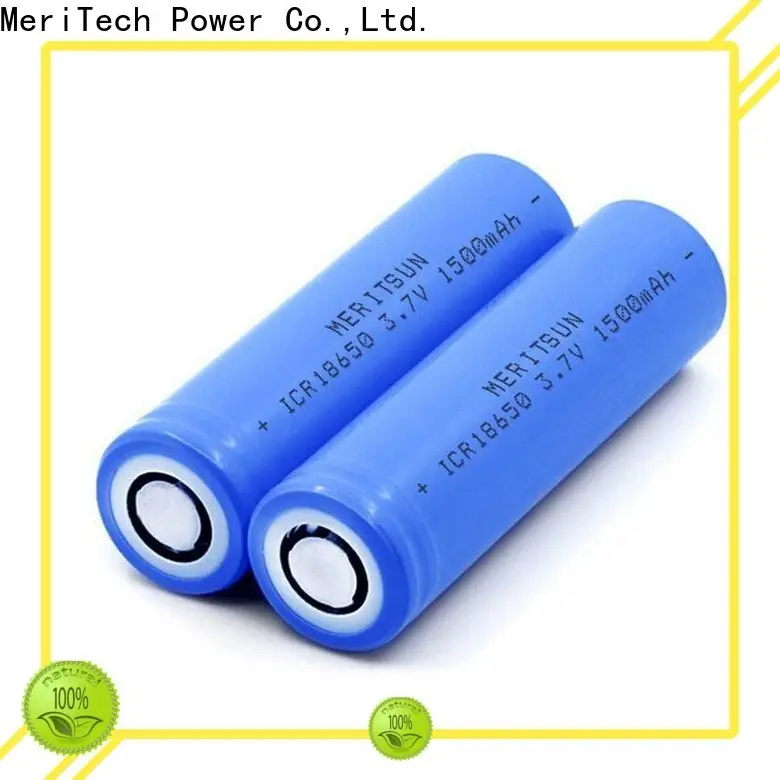

MERITSUN lithium ion cell customized for electric vehicles
Model:
ICR18650 3.7V 1500mAh
Rated Voltage (V):
3.7
Rated Capacity (Ah):
1500mAh
Supply Ability:
500000 Pieces per Month
MOQ:
10
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Alipay, WeChat pay, Paypal
Approx Dimension (mm):
18650
Certificate:
ISO, UL, CE, RoHS, UN38.3, TLC, TUV, IEC, and so on
Please:
click the "Inquire Online" button below, you will get the best design solution for FREE! and The Best offer.
Company Advantages
1. lithium ion cell has a vast range of prospects with its unique 4 cell lithium ion battery. Strong reliability is one of the features of the product
2. Our large warehouse have enough room to store lithium ion cell rather than be exposed to sunlight. The product is produced under the principle of environmental protection
3. Our commitment to quality and performance is stressed in each phase of creating this product. Supported by the lead-acid battery, it has a high discharge rate while maintaining high energy capacity
4. The product has stable performance and long service life which our customers are greatly satisfied with. Before shipment, the product will undergo 45 kinds of detailed tests
5. Its specifications meet the requirements in the market. It can be widely applied in diverse areas ranging from small appliances and IT devices
Company Features
1. We have well-established teams of workers. All of the team members take great pride in mastering their craft in our state-of-the-art facilities.
2. Establishing the concept of 4 cell lithium ion battery will do a great help to the development of MERITSUN. Welcome to visit our factory!
1. lithium ion cell has a vast range of prospects with its unique 4 cell lithium ion battery. Strong reliability is one of the features of the product
2. Our large warehouse have enough room to store lithium ion cell rather than be exposed to sunlight. The product is produced under the principle of environmental protection
3. Our commitment to quality and performance is stressed in each phase of creating this product. Supported by the lead-acid battery, it has a high discharge rate while maintaining high energy capacity
4. The product has stable performance and long service life which our customers are greatly satisfied with. Before shipment, the product will undergo 45 kinds of detailed tests
5. Its specifications meet the requirements in the market. It can be widely applied in diverse areas ranging from small appliances and IT devices
Product Description
/ For more details, please contact us！
| NO. | Items | Parameter | Remarks |
| 1 | Rated Capacity | 1500mAh | Discharge:0.2C Cut-off voltage:3.0V |
| Minimum Capacity | 1450mAh | ||
| 2 | Energy | 5.55Wh | |
| 3 | Nominal Voltage | 3.7V | |
| 4 | Open Voltage | ≥3.85V | |
| 5 | Load Voltage | ≥3.6V | 10Ω |
| 6 | Cycle Life | 500~1000 times | |
| 7 | Internal Impedance | ≤50mΩ | AC 1KHz after 50% charge |
| 8 | Charge voltage | 4.2V | |
| 9 | Standard charge current | 300mA | |
| 10 | Max charge current | 1500mA | |
| 11 | Standard discharge current | 300mA | |
| 12 | Max Discharge current | 10~25C | |
| 13 | Discharge cut-off voltage | 3.0V | |
| 14 | Operating Temperature | 0~+45℃ | Charge |
| -20~+60℃ | Discharge | ||
| 15 | Storage temperature for a long time | -20~25℃ | |
| 16 | Weight | 47±1g | |
| 17 | Dimensions-Diameter | 18.3±0.2mm | |
| Dimensions-Height | 65.3±0.2mm |
The Lithium Battery Cell Characteristic Curve , Please Refer To:
The Battery Advantages and Cells Consistency Countermeasures for
18650 Battery, Lithium Battery, Lipo Battery, Li-ion battery, LiFePO4 Battery,
Rechargeable Lithium ion Battery, Lithium Polymer Battery,
Lithium iron Phosphate Battery
The Battery Safety Assurance and Low Self Discharge for 18650 Battery, Lithium Battery,
Lipo Battery, Li-ion battery, LiFePO4 Battery, Rechargeable Lithium ion Battery,
Lithium Polymer Battery, Lithium iron Phosphate Battery
More Lithium Battery Cells Model Reference:
Please fill in the detailed requirements in the "Leave a Message" below, customer service will provide you with the latest product information, and the best design solution for FREE!
